Super323
 

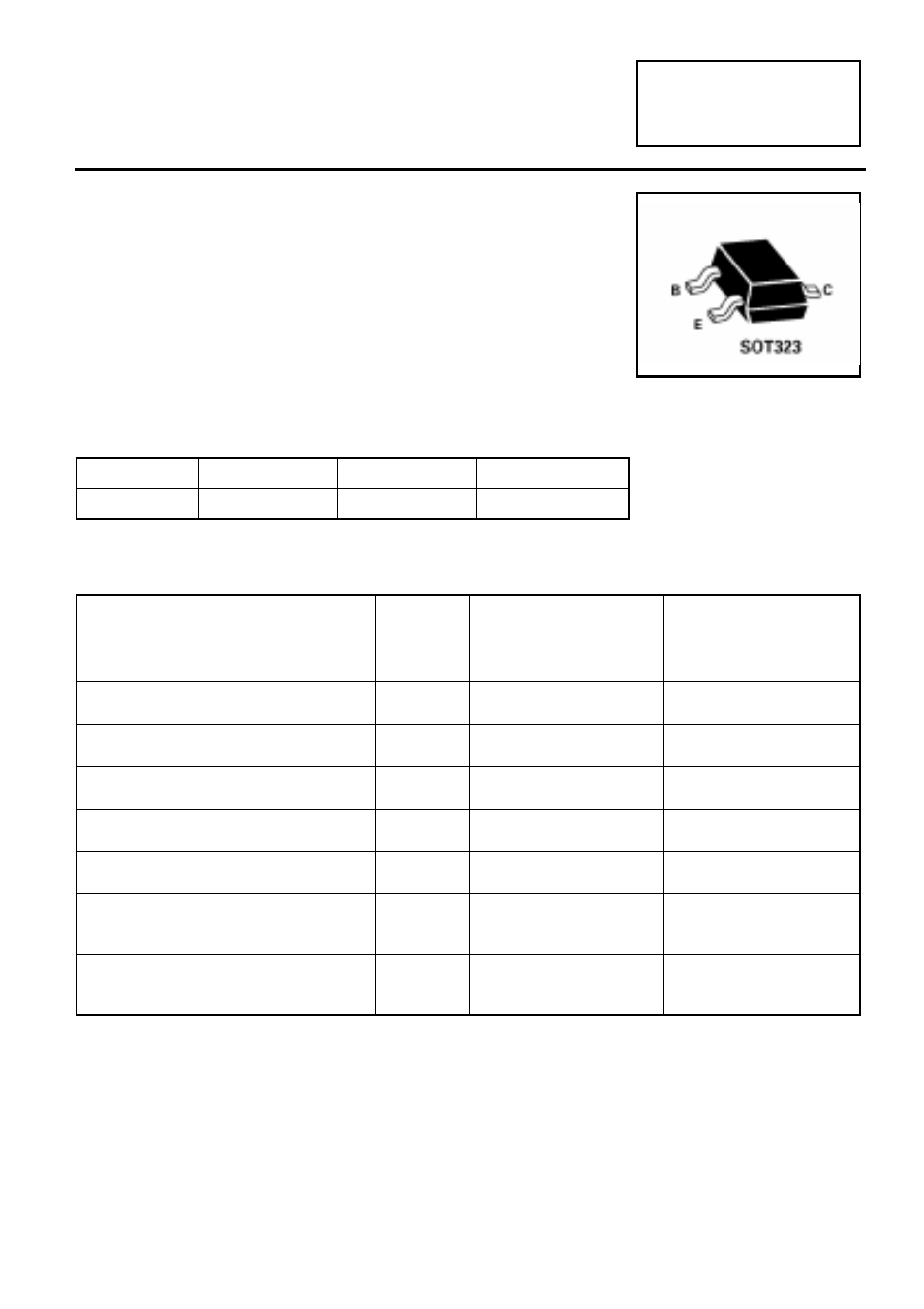

SOT323 PNP SILICON POWER
(SWITCHING) TRANSISTOR
ISSUE 1 - SEPTEMBER 1998
FEATURES
* 500mW POWER DISSIPATION
* 1A Peak Pulse Current
* Excellent H
FE
Characteristics Up To 1A (pulsed)
* Low Saturation Voltage
* Low Equivalent On Resistance; R
CE(sat)
APPLICATIONS
*
Boost functions in DC-DC converters
* Motor driver functions
DEVICE TYPE COMPLEMENT PARTMARKING R
CE(sat)
ZUMT720 ZUMT619 T73 240m ⍀ at 750mA
ABSOLUTE MAXIMUM RATINGS.
PARAMETER SYMBOL VALUE UNIT
Collector-Base Voltage V
CBO
-40 V
Collector-Emitter Voltage V
CEO
-40 V
Emitter-Base Voltage V
EBO
-5 V
Peak Pulse Current** I
CM
-1 A
Continuous Collector Current I
C
-0.75 A
Base Current I
B
-200 mA
Power Dissipation at T
amb
=25°C* P
tot
385 †
500 ‡ mW
Operating and Storage Temperature
Range T
j
:T
stg
-55 to +150 °C
† Recommended P
tot
calculated using FR4 measuring 10 x 8 x 0.6mm (still air).
‡ Maximum power dissipation is calculated assuming that the device is mounted on FR4
size25x25x0.6mm and using comparable measurement methods adopted by other suppliers.
ZUMT720
