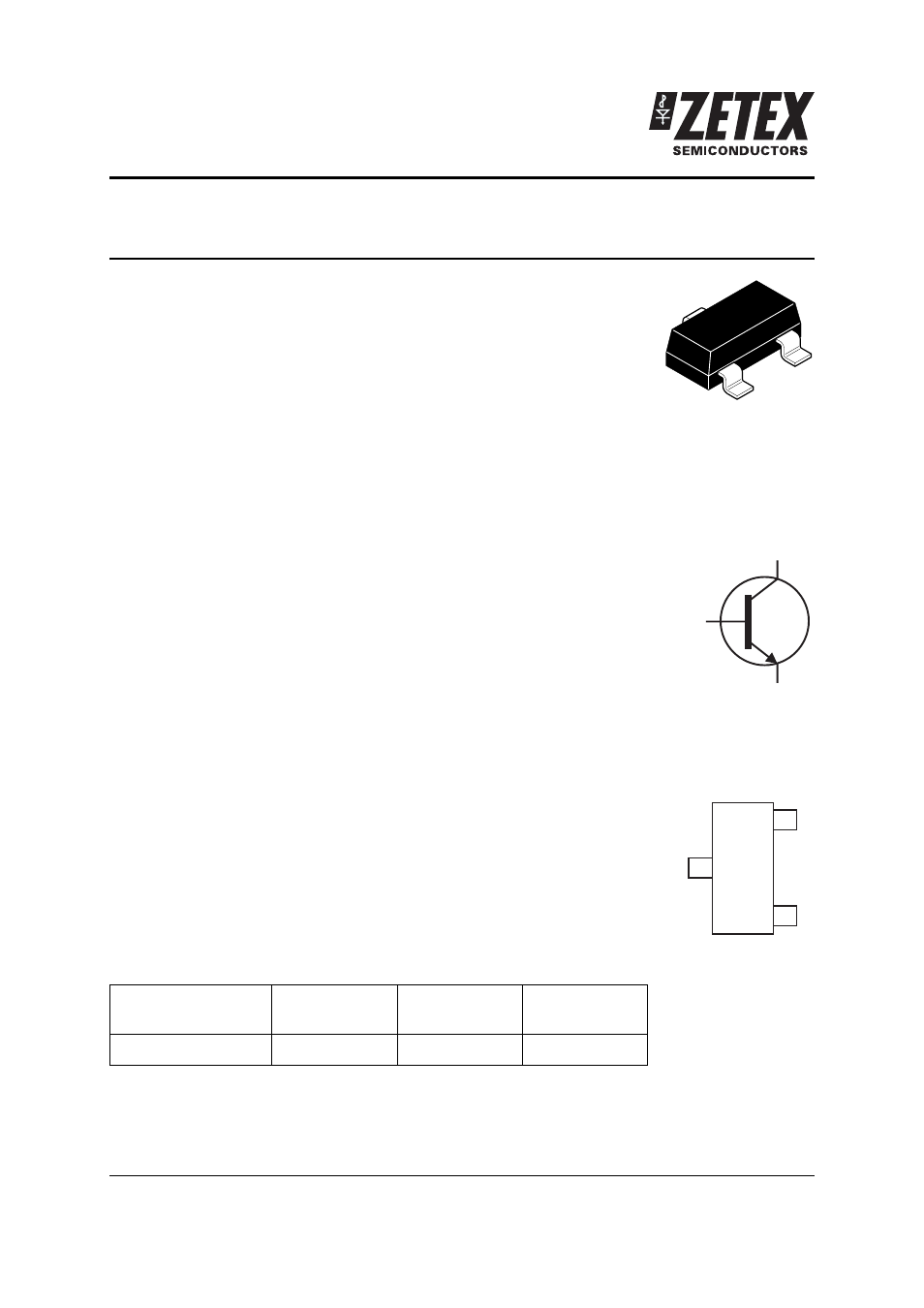

ZXTN25020BFH
20V, SOT23, NPN medium power transistor
Summary
BV
CEX
> 50V
BV
CEO
> 20V
BV
ECO
> 3V
I
C(cont)
= 4.5A
V
CE(sat)
< 45 mV @ 1A
R
CE(sat)
= 27 m
⍀
P
D
= 1.25W
Complementary part number ZXTP25020BFH
Description
Advanced process capability and package design have been used to
maximize the power handling and performance of this small outline
transistor. The compact size and ratings of this device make it ideally
suited to applications where space is at a premium.
Features
•
High power dissipation SOT23 package
•
High peak current
•
Low saturation voltage
•
50V forward blocking voltage
•
3V reverse blocking voltage
Applications
•
MOSFET gate drivers
•
Motor control
•
DC-DC converters
Ordering information
Device marking
1B1
Device
Reel size
(inches)
Tape width
(mm)
Quantity per
reel
ZXTN25020BFHTA
7
8 3,000
C
E
B
C
E
B
Pinout - top view
