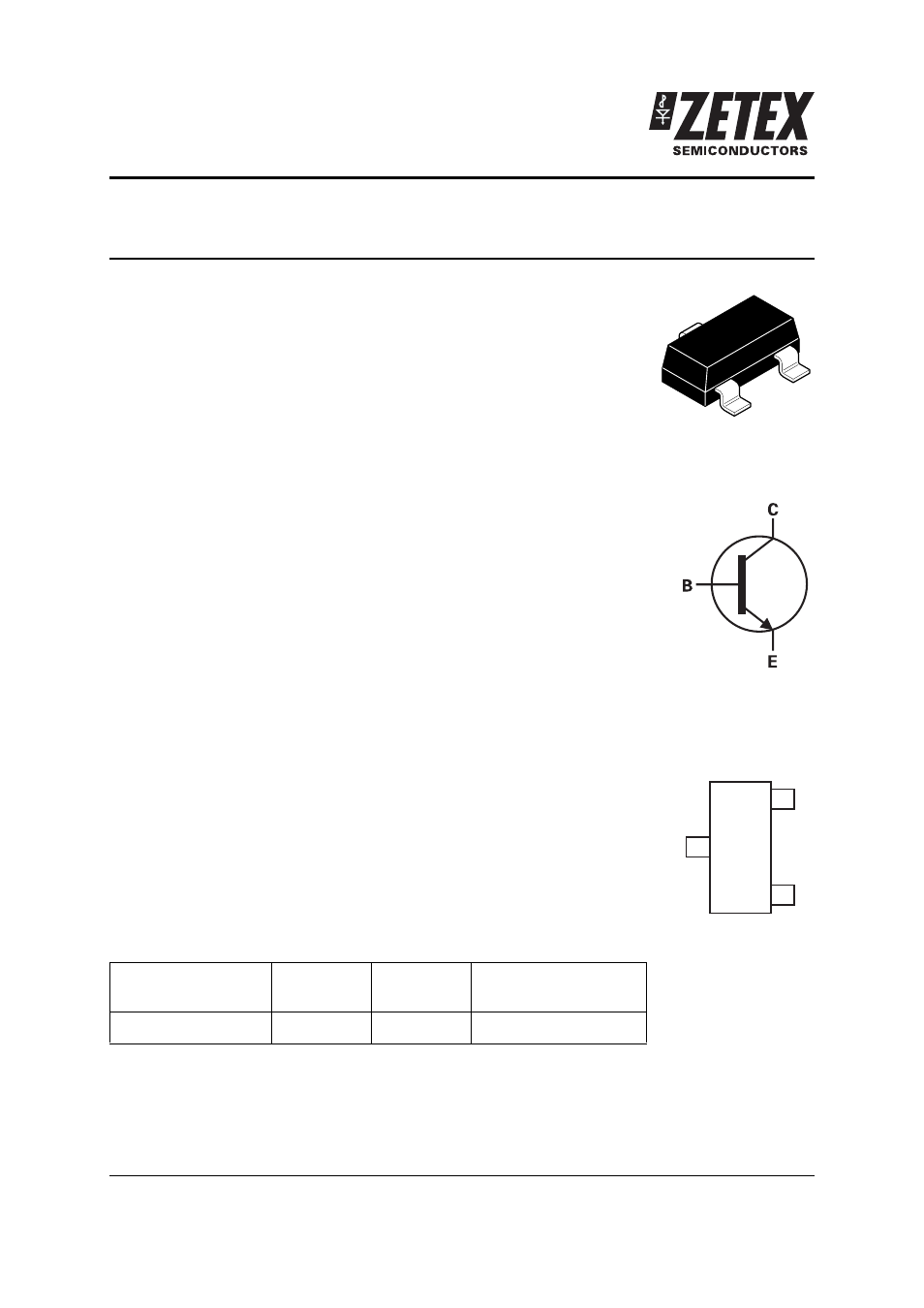

ZXTN23015CFH
15V, SOT23, NPN medium power transistor
Summary
V
(BR)CEX
> 60V, V
(BR)CEO
> 15V
I
C(CONT)
= 6A
R
CE(SAT)
= 19m
⍀ typical
V
CE(SAT)
< 30mV @ 1A
P
D
= 1.25W
Complementary part number : ZXTP23015CFH
Description
Advanced process capability and package design have been used to
maximize the power handling and performance of this small outline
transistor. The compact size and ratings of this device make it ideally
suited to applications where space is at a premium.
Features
•
Higher power dissipation SOT23 package
•
High peak current
•
Low saturation voltage
•
60V forward blocking voltage
Applications
•
DC - DC converters
•
MOSFET and IGBT gate driving
•
Motor drive
•
Relay, lamp, and solenoid drive
Ordering information
Device marking
327
Device
Reel size
(inches)
Tape
width
Quantity per REEL
ZXTN23015CFHTA
7
8mm
3000
C
E
Pinout - top view
B
