S E M I C O N D U C T O R S
SUMMARY
BV
CEO
= 25V : R
SAT
= 25m ; I
C
= 5.5A
DESCRIPTION
Packaged in the SOT89 outline this new low saturation 25V NPN transistor
offers extremely low on state losses making it ideal for use in DC-DC circuits
and various driving and power management functions.
FEATURES
•
Extremely low equivalent on-resistance; R
SAT
= 25m at 6.5A
•
5.5 amps continuous current
•
Up to 20 amps peak current
•
Very low saturation voltages
•
Excellent hFE characteristics up to 20 amps
APPLICATIONS
•
Emergency lighting circuits
•
Motor driving (including DC fans)
•
Solenoid, relay and actuator drivers
•
DC modules
•
Backlight Inverters
DEVICE MARKING
869
ZXTN2005Z
ISSUE 2 - JUNE 2005
25V NPN LOW SATURATION MEDIUM POWER TRANSISTOR IN SOT89
1

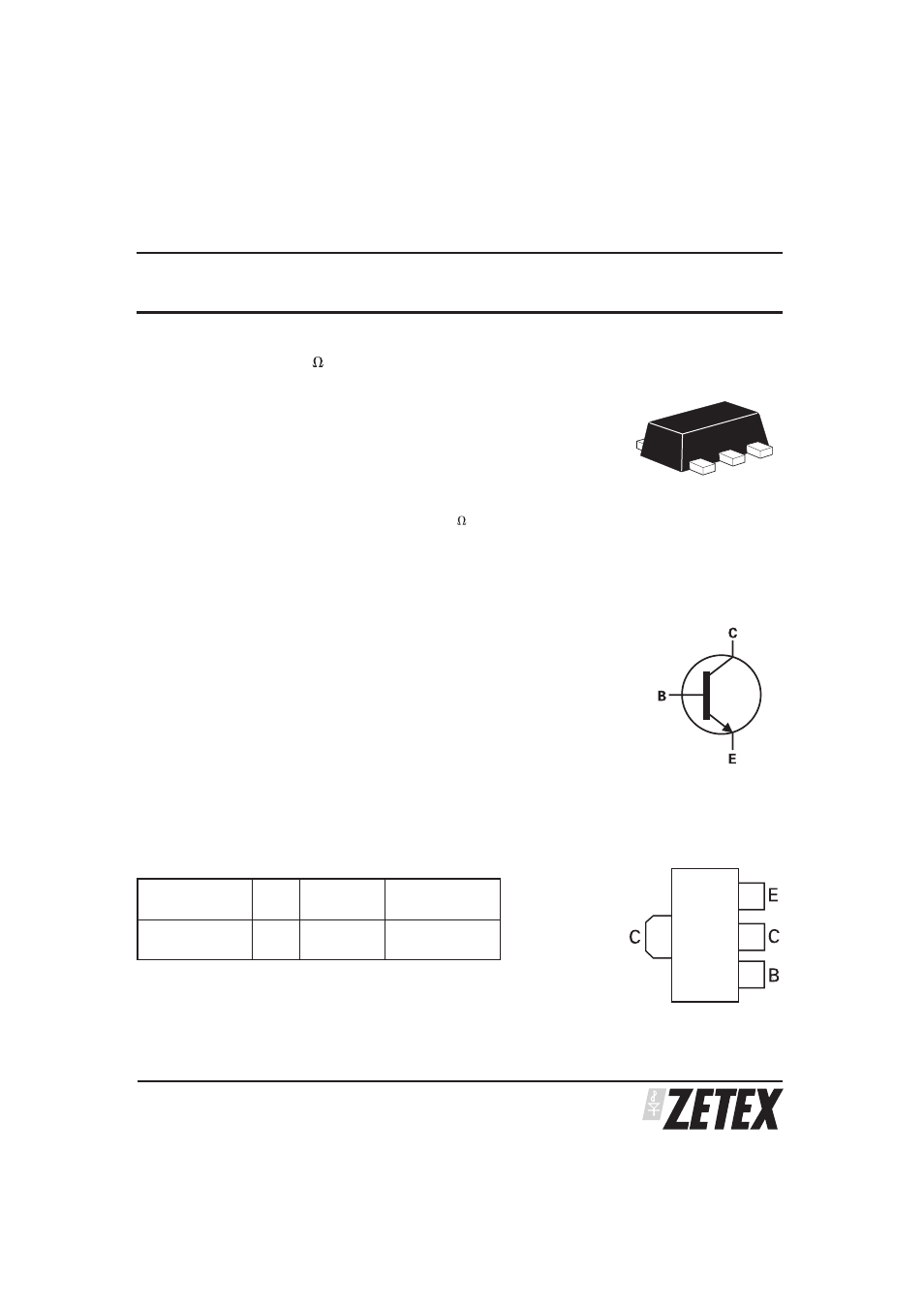

SOT89
PINOUT
TOP VIEW
DEVICE REEL
SIZE
TAPE WIDTH QUANTITY PER
REEL
ZXTN2005ZTA 7" 12mm
embossed
1,000 units
ORDERING INFORMATION
