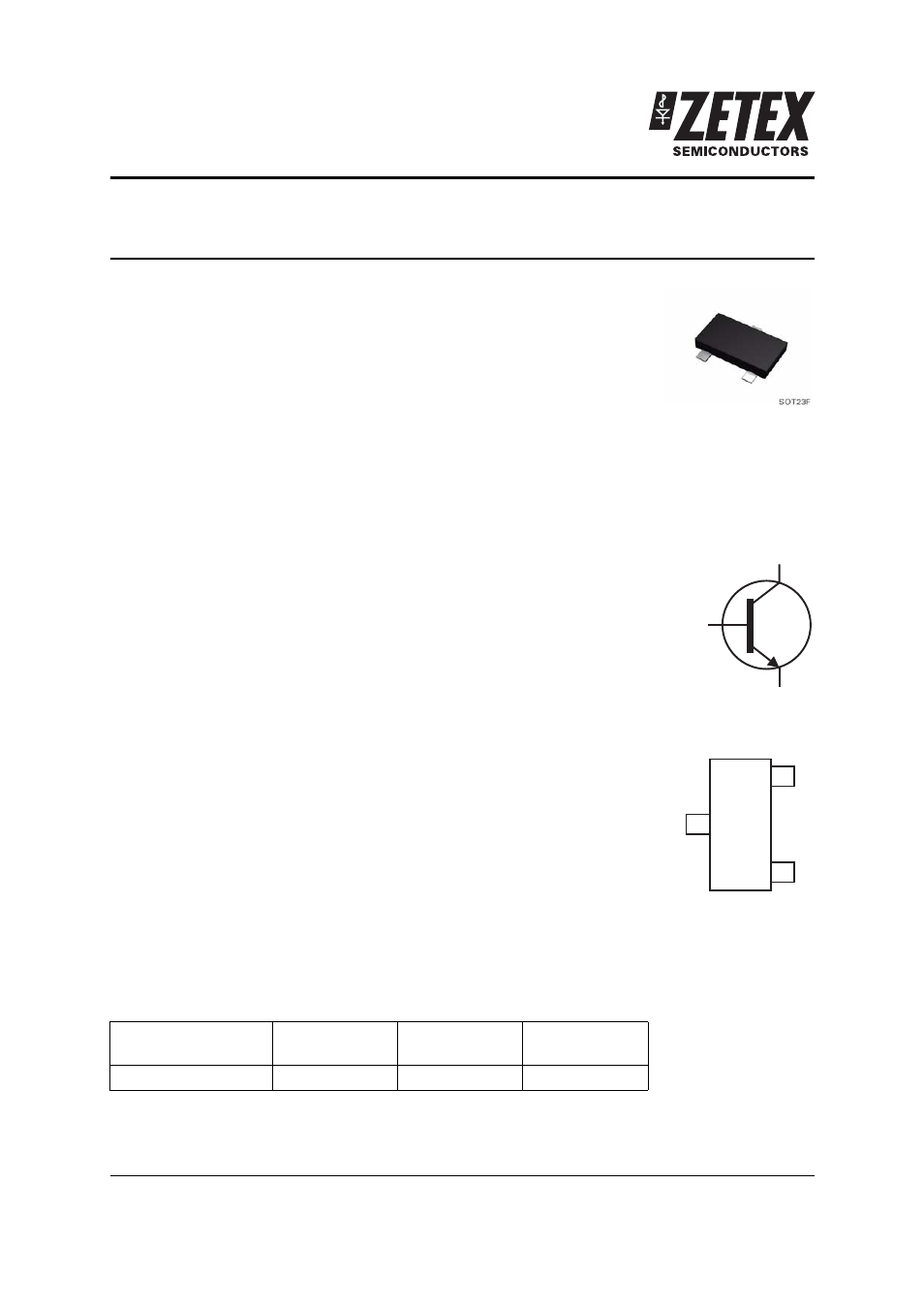

ZXTN19020DFF
20V, SOT23F, NPN high gain power transistor

Summary

BV

CEX

> 70V

BV

CEO

> 20V

BV

ECO

> 4.5V

I

C(cont)

= 6.5A

V

CE(sat)

= < 30mV @ 1A

R

CE(sat)

= 18m

P

D

= 1.5W

Complementary part number ZXTP19020DFF

Description

Advanced process capability has been used to maximize the
performance of this transistor. The SOT23F package is compatible with
the industry standard SOT23 footprint but offers lower profile and
higher dissipation for applications where power density is of utmost
importance.

Features

Very low saturation voltage

High gain

High forward blocking voltage

Low profile high dissipation package

Applications

MOSFET and IGBT gate driving

LED driving

Strobe flash

Motor drive

Micro buffers

Ordering information

Device marking

1E3

Device

Reel size

(inches)

Tape width

(mm)

Quantity

per reel

ZXTN19020DFFTA

7

8

3000

C

E

B

C

E

B

Pinout - top view
