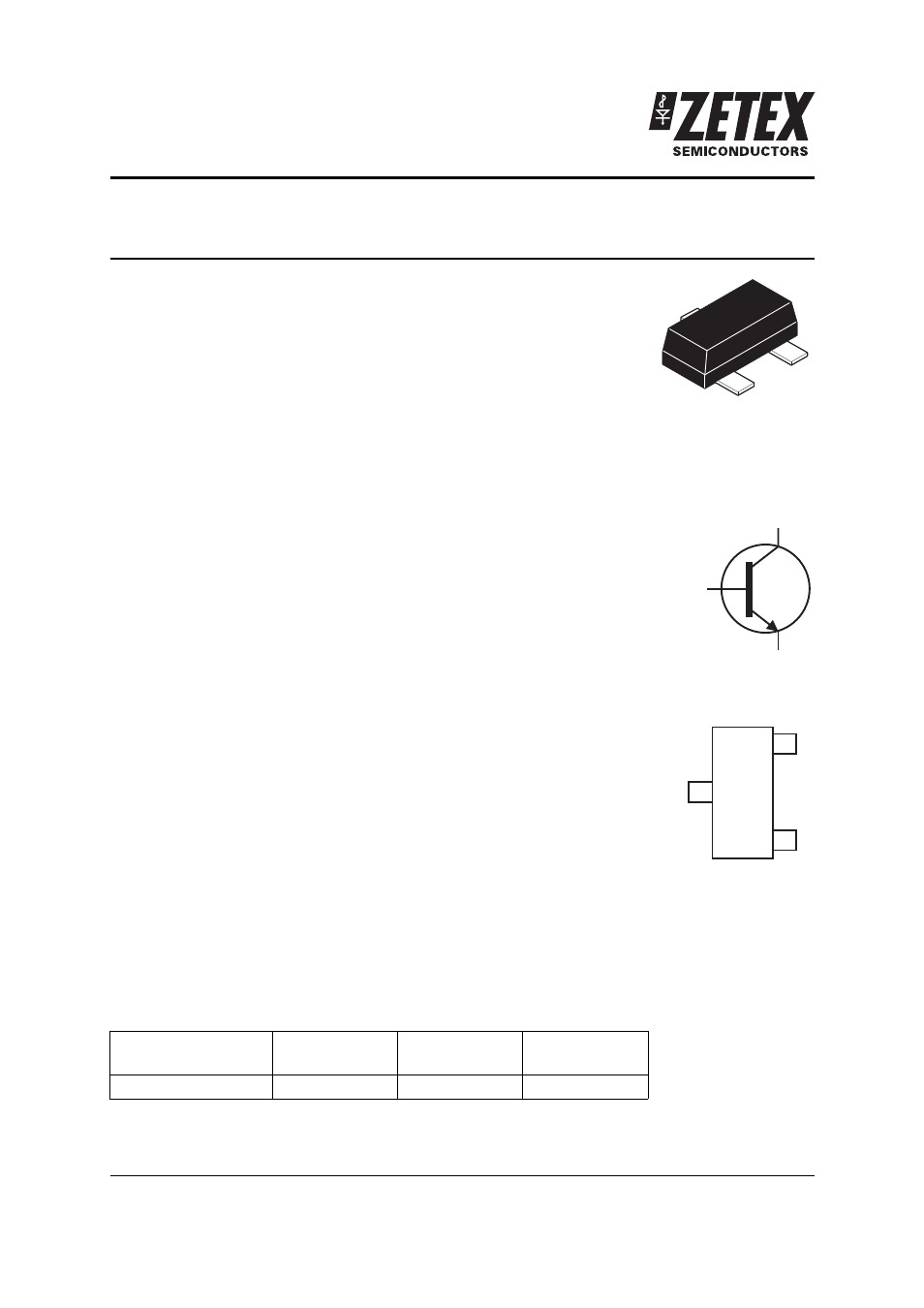

ZXTN19020CFF
20V, SOT23F, NPN high gain power transistor
Summary
BV
CEX
> 65V
BV
CEO
> 20V
BV
ECO
> 4.5V
I
C(cont)
= 7A
V
CE(sat)
< 30mV @ 1A
R
CE(sat)
= 18m
⍀
P
D
= 1.5W
Complementary part number ZXTP19020CFF
Description
Advanced process capability has been used to maximize the performance
of this transistor. The SOT23F package is compatible with the industry
standard SOT23 footprint but offers lower profile and higher dissipation
for applications where power density is of utmost importance.
Features
•
Very low saturation voltage
•
High gain
•
High forward blocking voltage
•
Low profile high dissipation package
Applications
•
MOSFET and IGBT gate driving
•
LED driving
•
Strobe flash
•
Motor drive
•
Micro buffers
Ordering information
Device marking
1E2
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTN19020CFFTA
7
8 3000
C
E
B
C
E
B
Pinout - top view
