Diodes ZXT13P20DE6 - Manual

ZXT13P20DE6
Document Number: DS33638 Rev: 2 - 2
1 of 7
www.diodes.com
December 2013
© Diodes Incorporated
ADVAN
CE I
N
F
O
RM
ATI
O
N
A Product Line of
Diodes Incorporated
ZXT13P20DE6
20V PNP LOW SATURATION SWITCHING TRANSISTOR IN SOT26
Features
 BV
CEO
> -20V
 I
C
= -3.5A Continuous Collector Current
 I
CM
= -10A Peak Pulse Current
 R
CE(sat)
= 47mΩ for a low equivalent On-Resistance
 Low Saturation Voltage of -130mV max @ -1A
 h
FE
characterized up to -10A for high current gain hold up
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT26
 Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-
STD-202, Method 208
 Weight: 0.015 grams (approximate)
Applications
 DC – DC Converters
 Power Management Functions
 Power Switches
 Motor Control
Ordering Information
(Notes 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXT13P20DE6TA P20D 7 8 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html

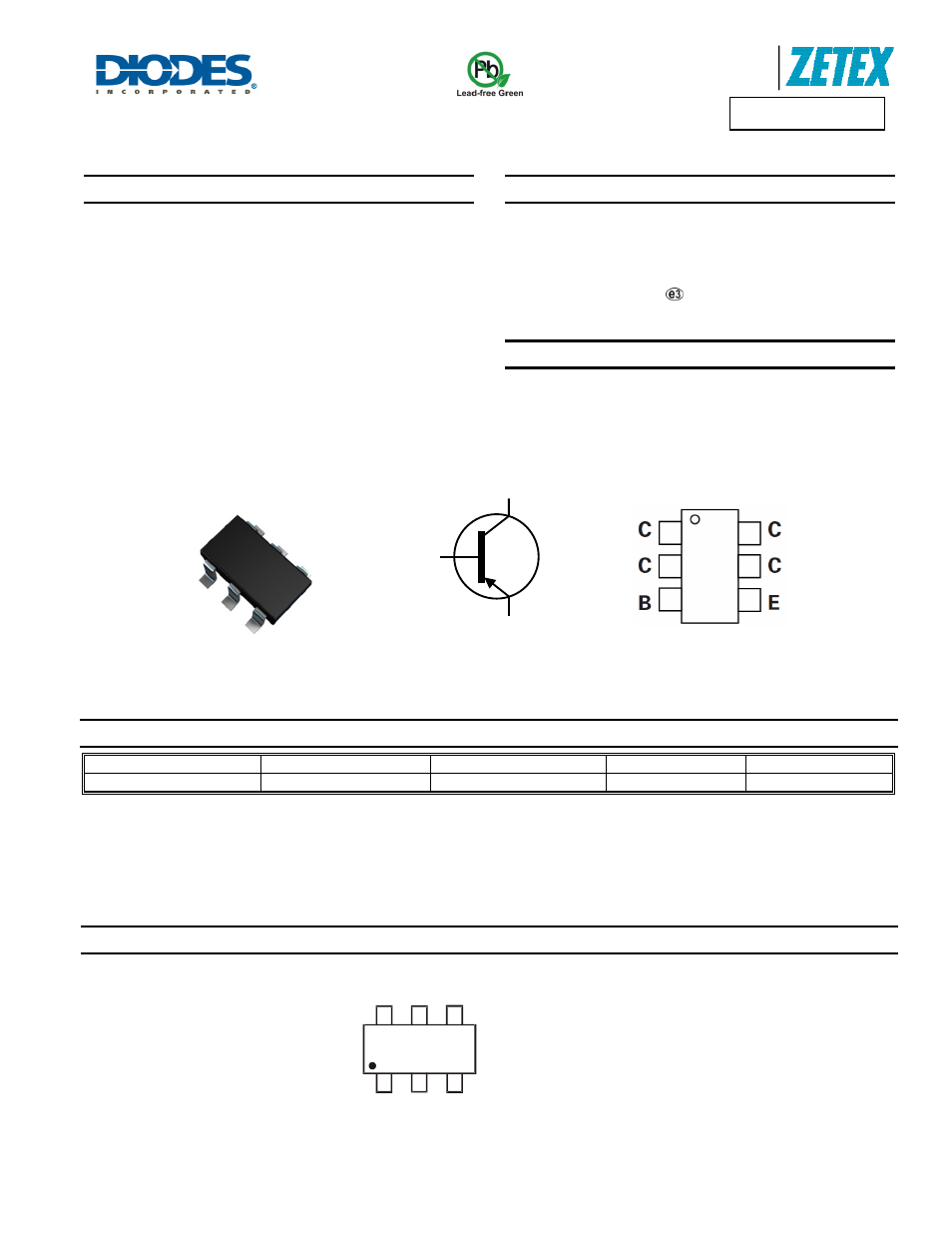

Marking Information
P20D = Product Type Marking Code
Top View Device Symbol
SOT26
Pin-Out Top
P20D
C
E
B
