Super323

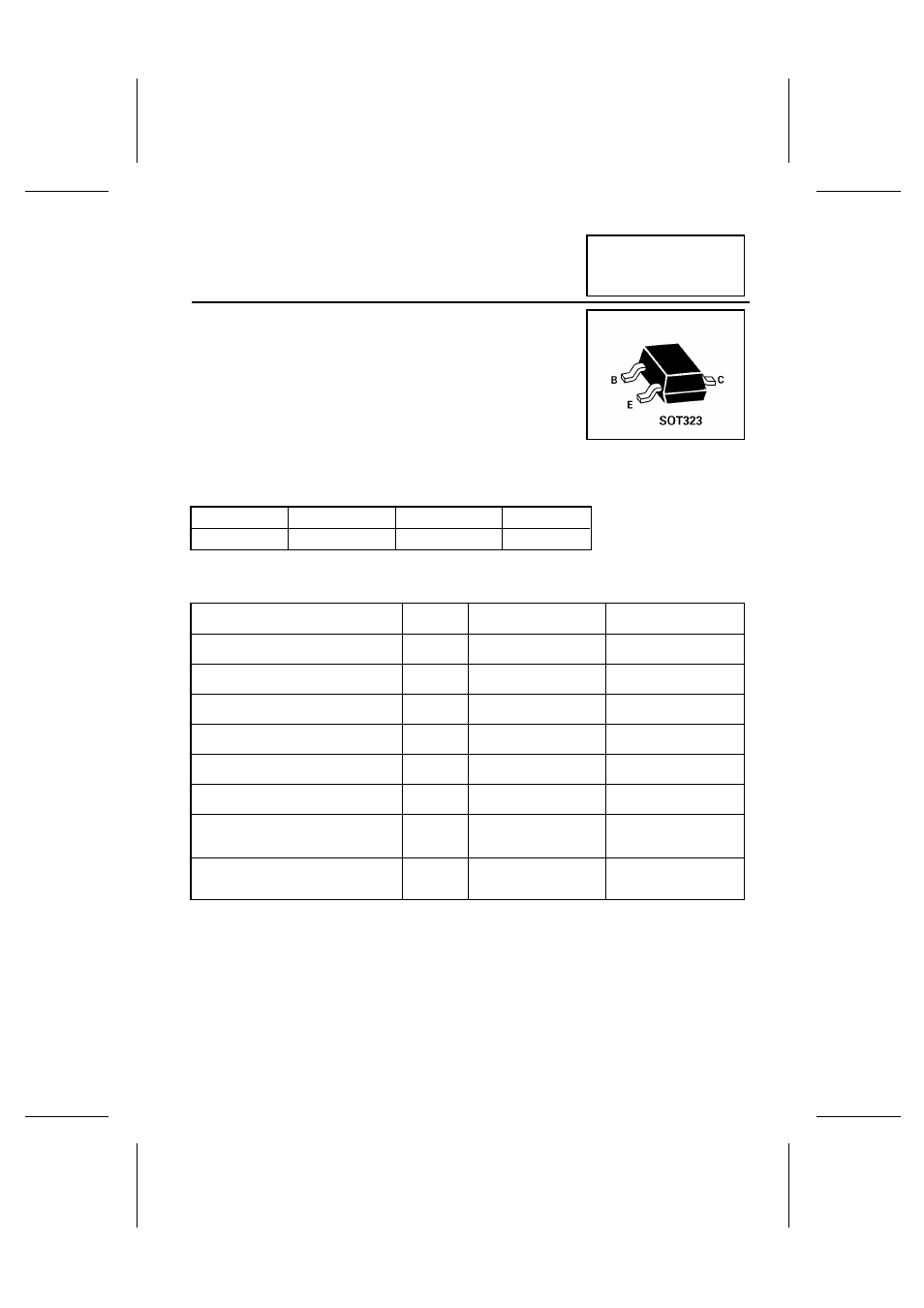

SOT323 PNP SILICON POWER
(SWITCHING) TRANSISTOR
ISSUE 2 - JUNE 2000
FEATURES
*
500mW POWER DISSIPATION
* I
C
CONT 1A
* 3A Peak Pulse Current
* Excellent H
FE
Characteristics Up To 3A (pulsed)
* Extremely Low Saturation Voltage
* Extremely Low Equivalent On Resistance; R
CE(sat)
APPLICATIONS
*
Switch functions in LED displays and Satellite receivers
* Negative boost functions in DC-DC converters
DEVICE TYPE COMPLEMENT PARTMARKING R
CE(sat)
ZUMT718 ZUMT618 T72 200m at 1A
ABSOLUTE MAXIMUM RATINGS.
PARAMETER SYMBOL VALUE UNIT
Collector-Base Voltage V
CBO
-20 V
Collector-Emitter Voltage V
CEO
-20 V
Emitter-Base Voltage V
EBO
-5 V
Peak Pulse Current** I
CM
-3 A
Continuous Collector Current I
C
-1 A
Base Current I
B
-200 mA
Power Dissipation at T
amb
=25°C* P
tot
385 †
500 ‡ mW
Operating and Storage Temperature
Range T
j
:T
stg
-55 to +150 °C
† Recommended P tot calculated using FR4 measuring 10 x 8 x 0.6mm (still air).
‡ Maximum power dissipation is calculated assuming that the device is mounted on FR4
size 25x25x0.6mm and using comparable measurement methods adopted by other suppliers.
ZUMT718
