ZLLS350
Document Number: DS33225 Rev. 6 - 2
1 of 4
December 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZLLS350
40V LOW LEAKAGE SCHOTTKY DIODE
Description
Packaged in the SOD523 package offering an ideal low V
F
/I
R
performance combined with a low package height making the device
suitable for various converter, charger and LED driver circuits.
Features
Low
V
F
380mA continuous current rating
Low profile SOD523 package
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SOD523
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
ZLLS350TA
SOD523
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information

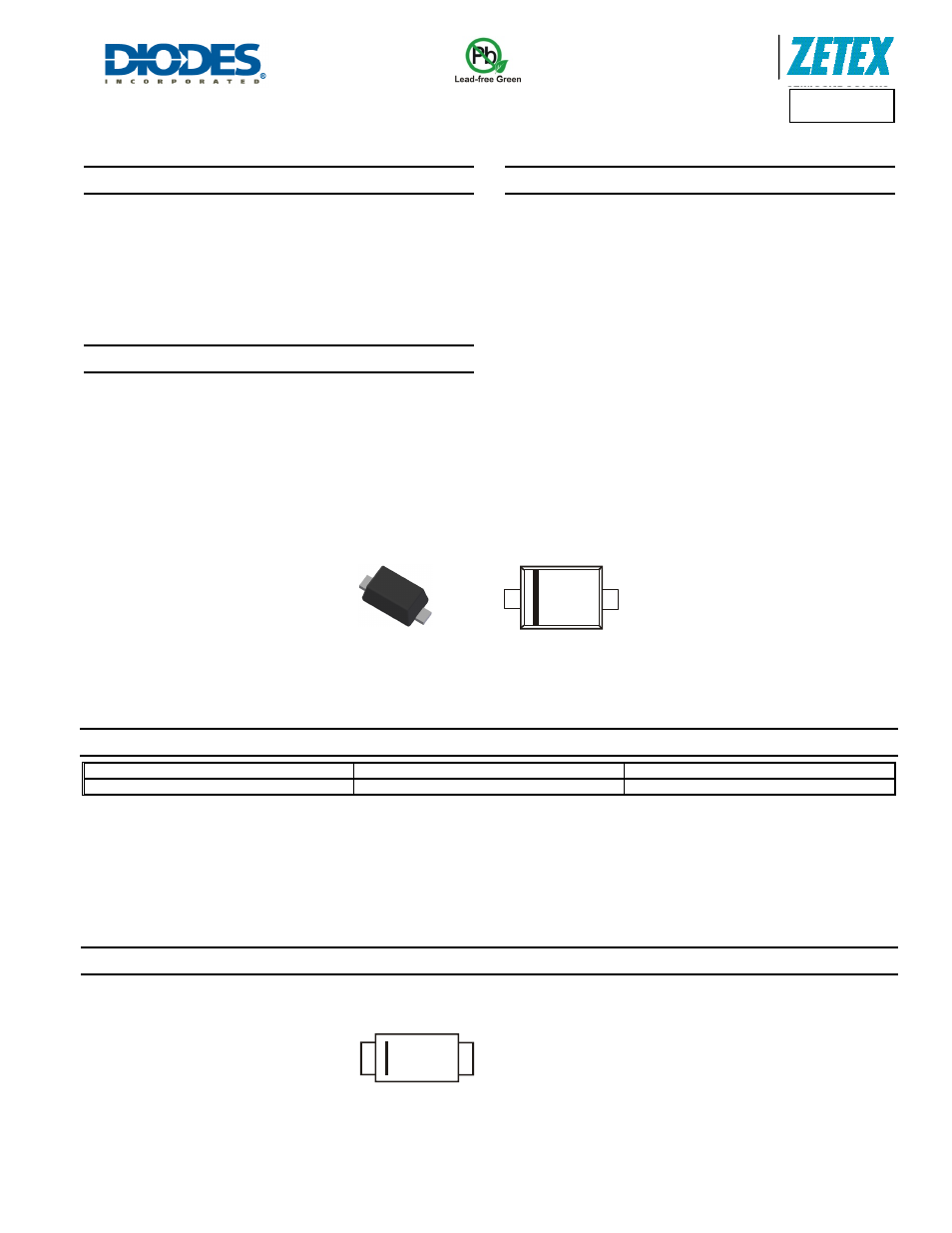

Top View
Top View
Pin-Out
L3 =
Product Type Marking Code
L3
SOD523
Cathode
Anode
