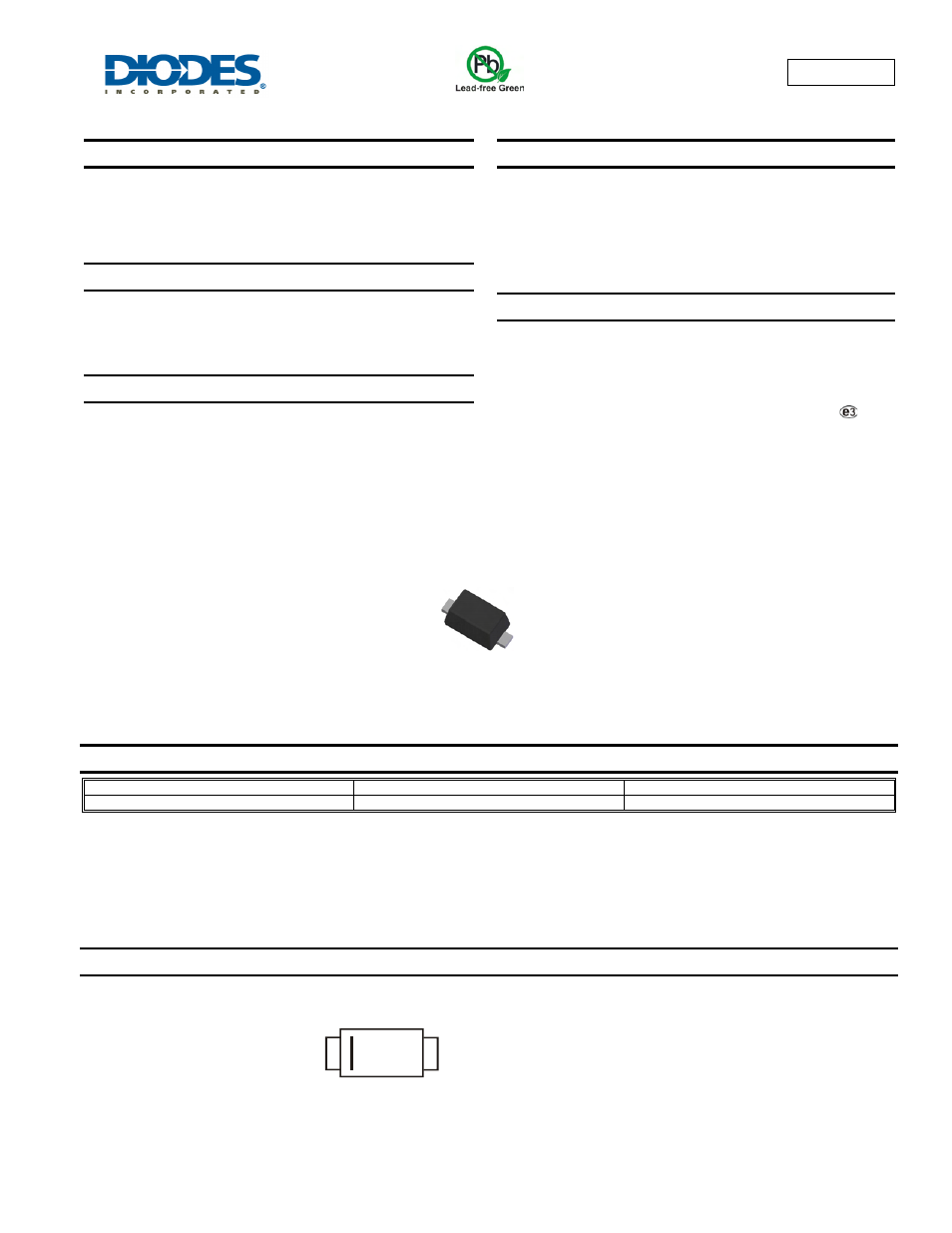

ZHCS350
Document number: DS33214 Rev. 3 - 2
1 of 5
June 2012
© Diodes Incorporated
ZHCS350
40V SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary
•
V
R
= 40V
•
I
FAV
= 510mA
•
V
F
= 405mV typ @ 100mA
•
I
R
= 7
μA typ @ 30V
Description
Packaged in the SOD523 package this addition to the Zetex Schottky
diode range offers an ideal low V
F
/I
R
performance combined with a
low package height of 0.9mm making the device suitable for various
converter, charger, and LED driver circuits.
Applications
•
DC – DC Converters
• Mobile
Telecomms
• Charger
Circuits
•
LED Driver Circuits
•
MOSFET Voltage Protection Circuits
•
High Frequency Rectification
Features
•
350mA continuous current rating
•
Low profile SOD523 package (0.9mm)
•
100% matte tin plated external leads
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOD523
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Leads: Matte Tin Finish annealed over Alloy 42 leadframe (Lead
Free Plating). Solderable per MIL-STD-202, Method 208
•
Polarity: Cathode Band
•
Weight: 0.004 grams (approximate)
Ordering Information
(Note 4)
Device
Packaging
Shipping
ZHCS350TA
SOD523
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
35 = Product Type Marking Code
SOD523
35
