SDM10M45SD
Ordering Information
(Notes 5 & 6)
Part Number Case Packaging
SDM10M45SD-7-F SOT-26 3000/Tape & Reel
Notes: 6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KLG YM
KLG YM
KLG = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: P = 2003
M = Month ex: 9 = September
Date Code Key
Year 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Code P R S T U V W X Y Z A B C
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

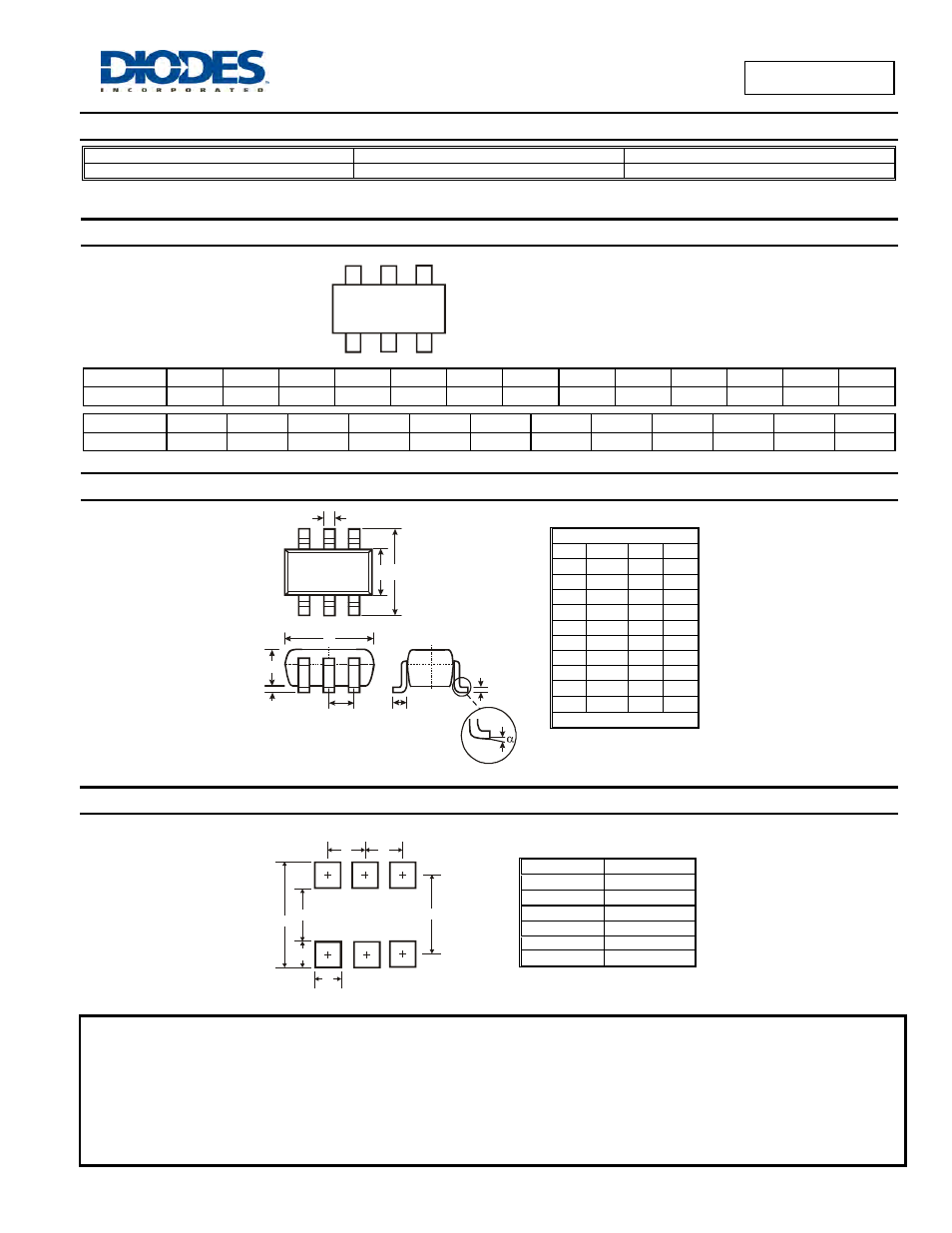

Package Outline Dimensions
SDM10M45SD
Document number: DS30386 Rev. 6 - 2
3 of 3
www.diodes.com
July 2008
© Diodes Incorporated
Suggested Pad Layout
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
A
M
J
L D
B C
H
K
SOT-26
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D ⎯ ⎯ 0.95
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
α 0° 8° ⎯
All Dimensions in mm
X
Z
Y
C
E E
G
Dimensions Value (in mm)
Z 3.20
G 1.60
X 0.55
Y 0.80
C 2.40
E 0.95
