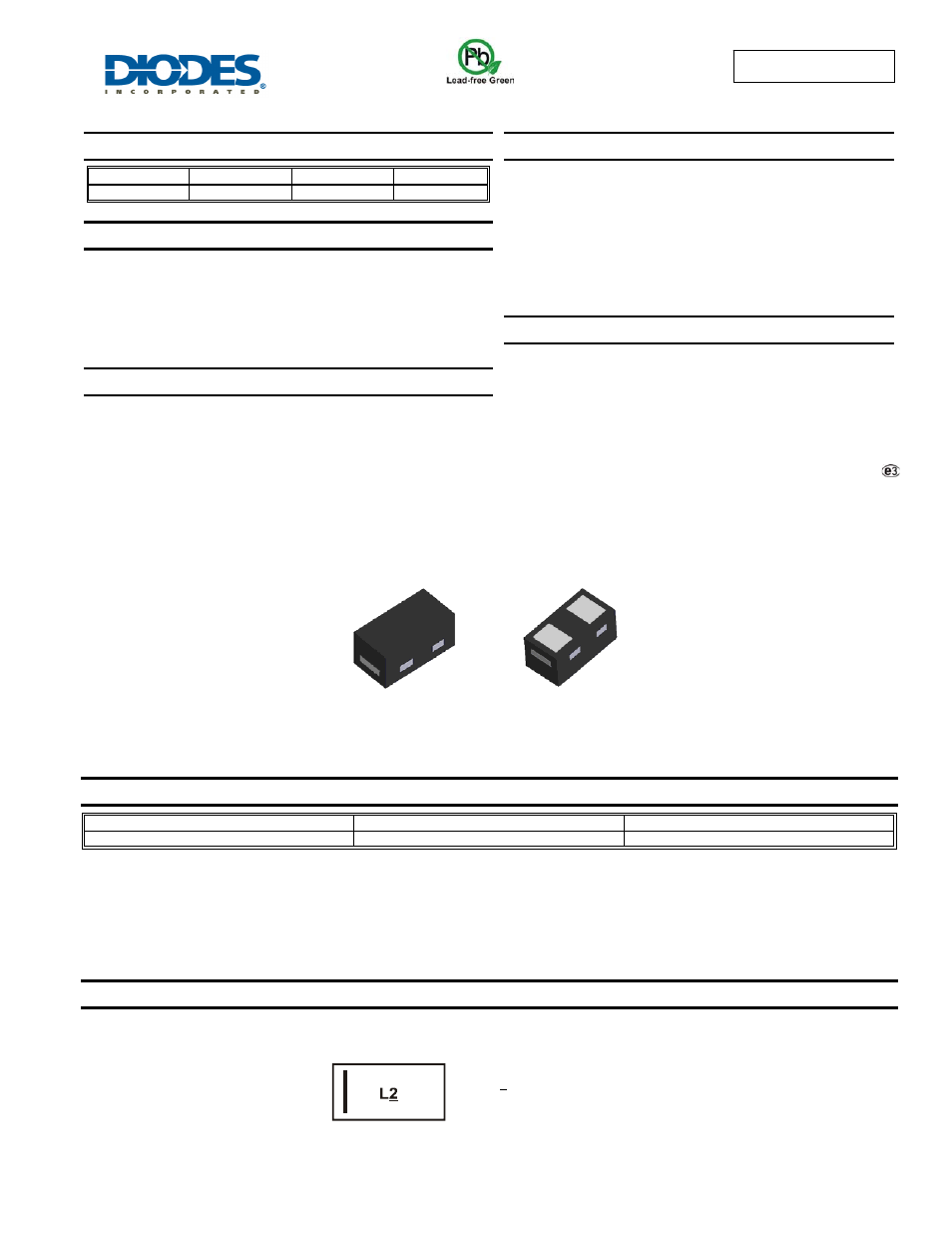

Diodes SDM02U30LP3 User Manual
Product summary, Description, Applications
SDM02U30LP3
Document number: DS35774 Rev. 4 - 2
1 of 4
October 2013
© Diodes Incorporated
SDM02U30LP3
ADVAN
CE I
N
F
O
RM
ATI
O
N
ULTRA-SMALL SURFACE MOUNT SCHOTTKY DIODE
Product Summary
V
RRM
(V)
I
O
(mA) V
F
max
(V) I
R max
(
μA)
30 100 0.37 7
Description
The SDM02U30LP3 is a schottky barrier diode optimized for ultra low-
forward voltage drop and low reverse leakage current. Encapsulated in
the ultra-small DFN-0603 with footprint of 0.18mm
2
and ultra-low package
profile, this device is designed for saving PCB space in portable
electronic devices.
Applications
Reverse Voltage and Current Protection
Blocking Diode
Clamping
Protection
LCD and Key Pad Backlighting
Freewheeling
Diode
Features
0.18mm
2
footprint – 70% smaller than DFN1006/SOD923
Off board profile of 0.35mm – 30% thinner than the DFN1006
Low forward voltage of 0.37V (max) – minimises power
dissipation losses
Low leakage – maximises battery power
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case:
X3-DFN0603-2
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Bar
Terminals:
Finish
Matte Tin Finish over Copper Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Weight: 0.2mg (Approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
SDM02U30LP3-7B
X3-DFN0603-2
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
L2 = Product Type Marking Code
Bar Denotes Cathode Side
Top View
Bottom View
X3-DFN0603-2
