SDM03U40
Document number: DS30392 Rev. 9 - 2
3 of 3
January 2009
© Diodes Incorporated
SDM03U40
Ordering Information
(Notes 5 & 6)
Part Number
Case
Packaging
SDM03U40-7 (Note 7)
SOD-523
3000/Tape & Reel
SDM03U40-76K
SOD-523
6000/Tape & Reel
Notes:
6. For packaging details, go to our website at7. Dispensed in every other cavity of the tape.
Marking Information

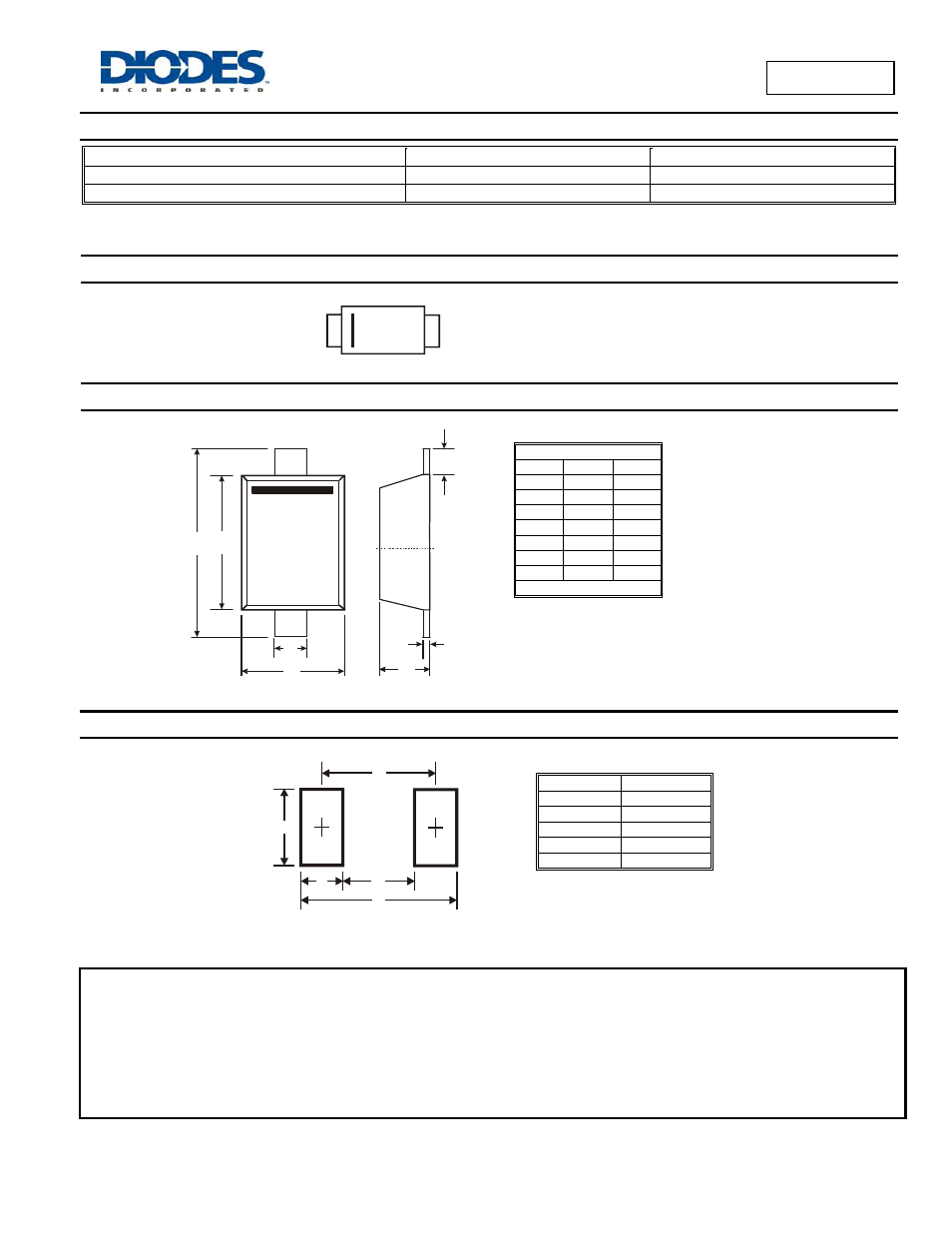

Package Outline Dimensions
Suggested Pad Layout
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
SOD-523
Dim
Min
Max
A
0.25
0.35
B
0.70
0.90
C
1.50
1.70
H
1.10
1.30
K
0.55
0.70
L
0.10
0.30
M
0.10 0.20
All Dimensions in mm
Dimensions
Value (in mm)
Z 2.3
G 1.1
X 0.8
Y
0.6
C
1.7
LK = Product Type Marking Code
LK
H
C
A
B
K
M
L
Z
X
C
G
Y
