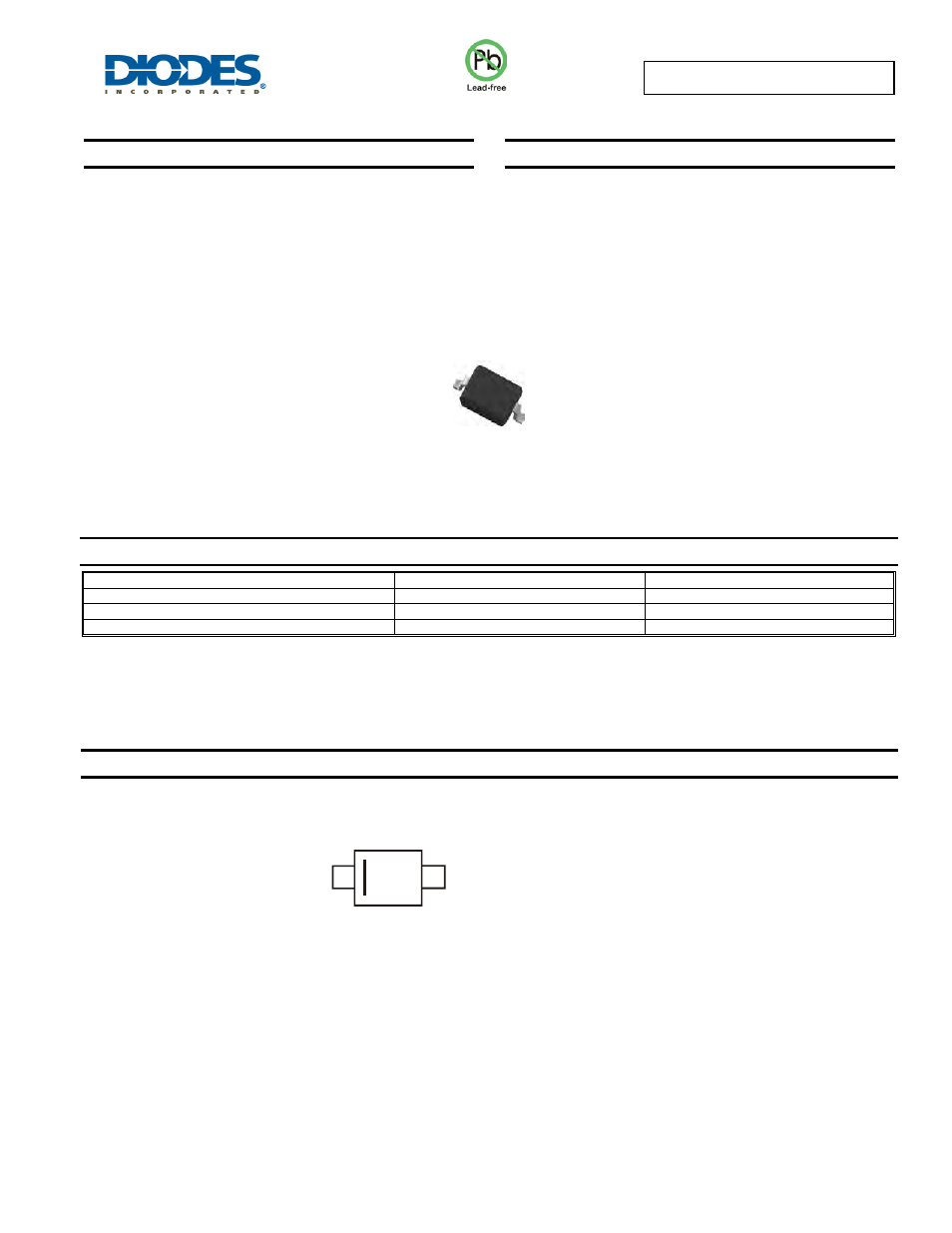

SD101AWS – SD101CWS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
•
Low Forward Voltage Drop
•
Guard Ring Construction for Transient Protection
•
Negligible Reverse Recovery Time
• Low
Capacitance
•
Ultra-small Surface Mount Package
•
Lead Free/RoHS Compliant Version (Note 1)
•
“Green” Device (Note 2)
Mechanical Data
• Case:
SOD323
•
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Polarity: Cathode Band
•
Leads: Matte Tin Finish annealed over Alloy 42 leadframe (Lead
Free Plating). Solderable per MIL-STD-202, Method 208
•
Weight: 0.004 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
SD101AWS-7-F
SOD323
3000/Tape & Reel
SD101BWS-7-F
SOD323
3000/Tape & Reel
SD101CWS-7-F
SOD323
3000/Tape & Reel
Notes: 1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our w
3. For packaging details, go to our website at
Marking Information
Top View
xx = Product Type Marking Code
S1 or SK = SD101AWS
S2 or SK = SD101BWS
S3 or SC or SK = SD101CWS
XX
