ZLLS410
10V LOW LEAKAGE SCHOTTKY DIODE IN SOD323
Product Summary
•
VR > 10V
•
IF = 750mA
•
IR = 1µA
Description and Applications
This compact SOD323 packaged Schottky diode offers users an
excellent performance combination comprising high current operation,
extremely low leakage and low forward voltage ensuring suitability for
applications requiring efficient operation at higher temperatures
(above 85°C) see Operational efficiency chart on page 4.
•
Low power DC-DC conversion
• Level
shifting
• Reverse
blocking
Features and Benefits
•
Extremely low leakage
•
High current capability
• Low
V
F
, fast switching Schottky
• SOD323
package
•
Package thermally rated to 150°C
•
Lead, Halogen, and Antimony Free/RoHS Compliant (Note 1)
•
“Green” Device (Note 2)
Mechanical Data
• Case:
SOD323
•
Case material: Molded Plastic. “Green” Molding Compound.
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish
•
Weight: 0.0049 grams (Approximate)
Ordering Information
(Note 3)
Device
Packaging
Shipping
ZLLS410TA
SOD323
3,000/Tape & Reel
ZLLS410TC
SOD323
10,000/Tape & Reel
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc’s “Green” Policy can be found on our websit
3. For Packaging Details, go to our website at

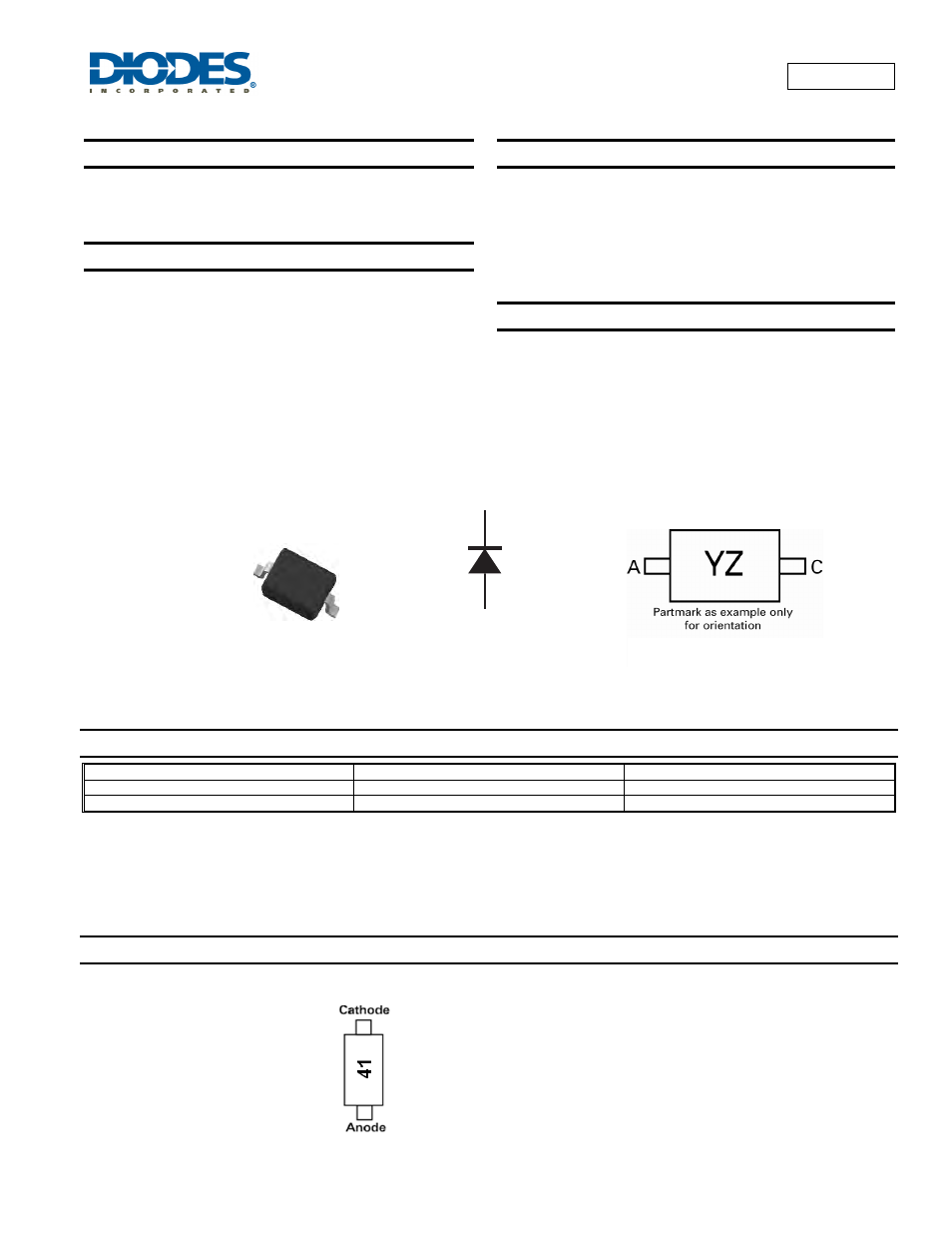

Marking Information
SOD323
Device symbol
C
A
Top View
Pin Configuration
41 = Product Type Marking Code
