SDM1L30CSP
Document number: DS35649 Rev. 5 - 2
1 of 5
www.diodes.com
March 2014
© Diodes Incorporated
SDM1L30CSP
NEW PROD
UC
T
NEW PROD
UC
T
1A SCHOTTKY BARRIER DIODE CHIP SCALE PACKAGE
Product Summary
V
RRM
(V) I
O
(A)
V
F(MAX)
(V)
@ +25°C
I
R(MAX)
(mA)
@ +25°C
30 1.0 0.40 1.0
Description and Applications
The SDM1L30CSP is a 30-volt 1A Schottky barrier diode that is
optimized for low forward voltage and soft switching characteristics to
meet the needs of wireless charging applications. It is housed in a
compact chip scale package (CSP) that occupies only 2 mm
2 board-
space. It is ideally suited for use in portable applications.
Features and Benefits
 2 mm
2
Footprint – 67% smaller than PowerDI123
 Off Board Profile of 0.3mm – 70% thinner than PowerDI123
 Low Forward Voltage Drop reduces Power Dissipation
 Soft switching characteristic ensures that EMI and EFI are
minimised
 Guard Ring Die Construction for Transient Protection
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)

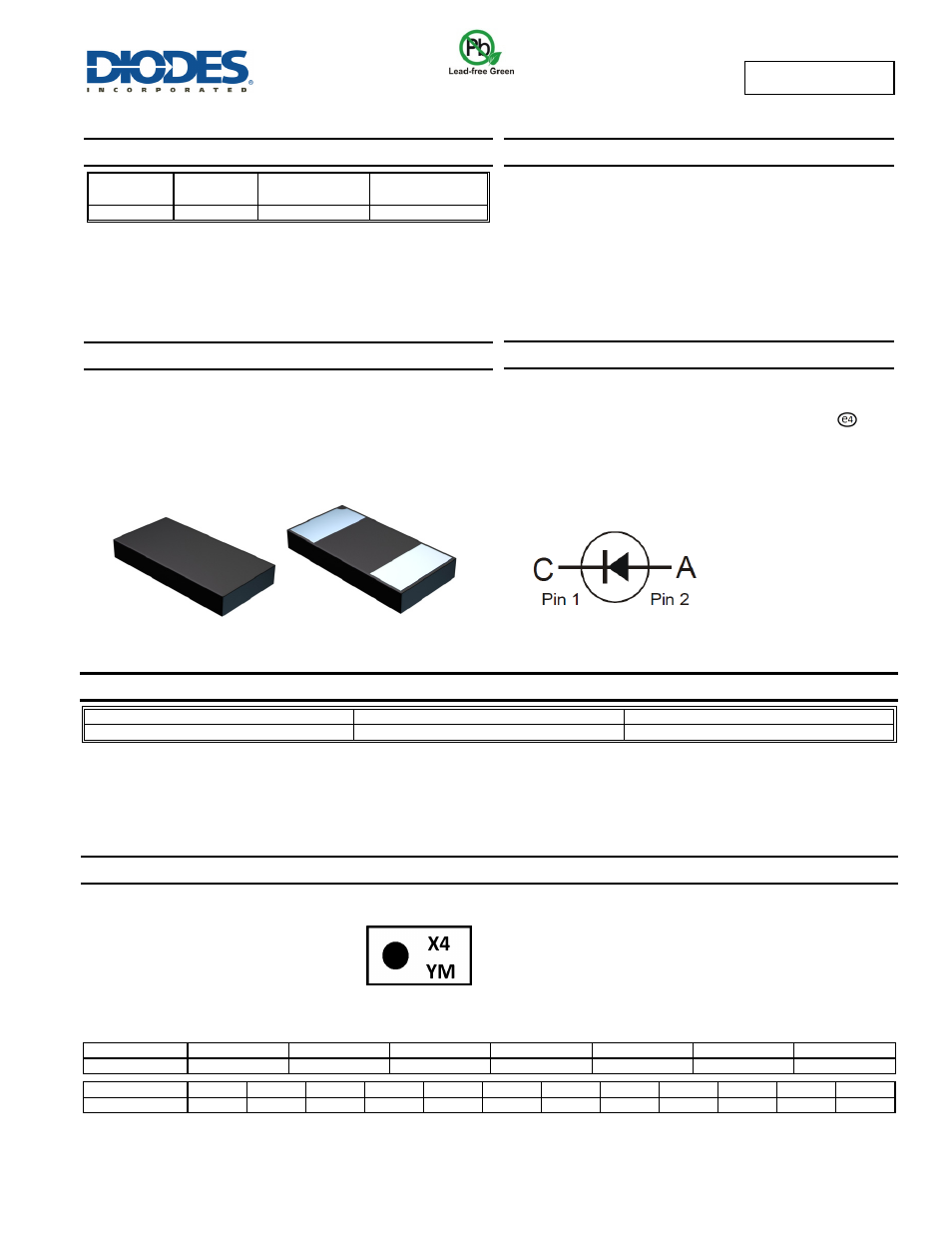

Mechanical Data
 Case: X2-WLB2010-2
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Solderable per MIL-STD-202, Method 208
 Polarity: Cathode Dot
 Weight: 0.15mg
Ordering Information
(Note 4)
Part Number Case Packaging
SDM1L30CSP-7 X2-WLB2010-2 3,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2014 2015 2016 2017 2018 2019 2020
Code B C D E F G H
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
X4 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
Dot denotes Cathode Pin
