SDM1L30BLP
Document number: DS35906 Rev. 6 - 2
4 of 5
www.diodes.com
November 2013
© Diodes Incorporated
SDM1L30BLP

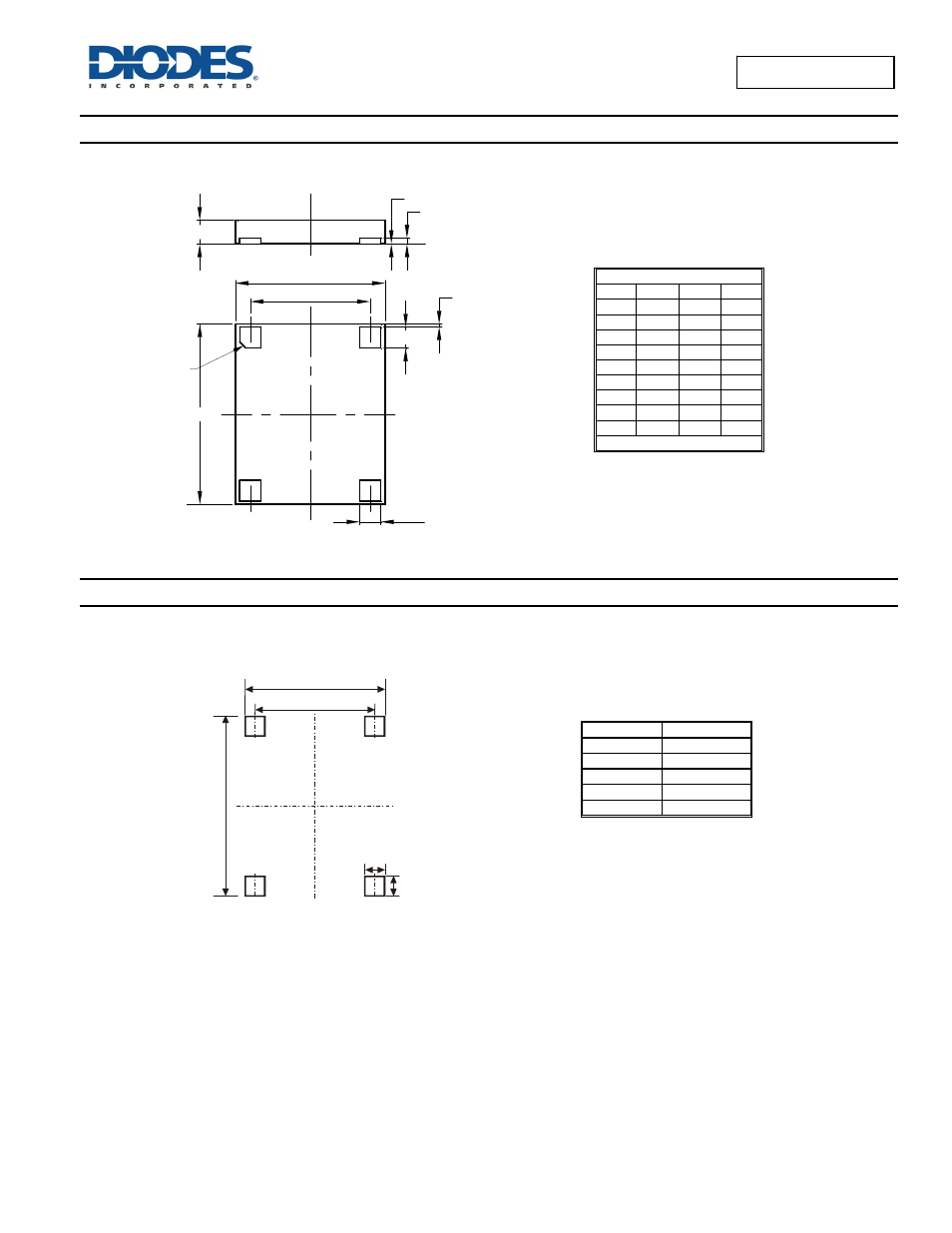

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
V-DFN5060-4
Dim Min Max Typ
A 0.75 0.85 0.80
A1 0 0.05 0.02
A3 - - 0.203
b 0.65 0.75 0.70
D 4.95 5.05 5.00
e - - 4.00
E 5.95 6.05 6.00
L 0.65 0.75 0.70
L1 0.05 0.15 0.10
All Dimensions in mm
Dimensions Value (in mm)
C 4.00
X 0.75
Y 0.95
Y1 6.20
Z 4.75
D
E
b
A
A 3
P i n # 1 I D
S e a t i n g P l a n e
1
e L 1
4
L
A 1
Y1
Y (4x)
X (4x)
C
Z
