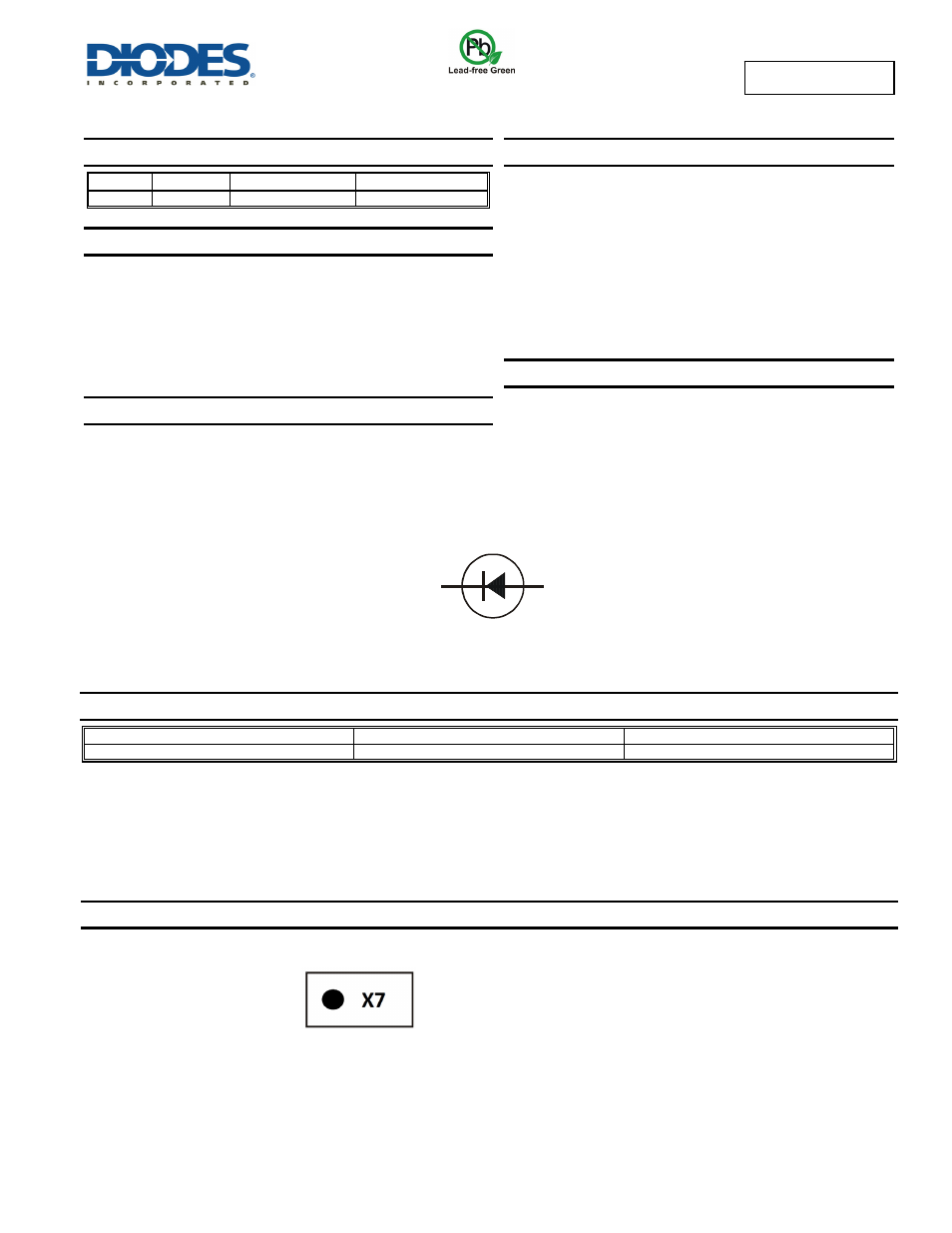

SDM0230CSP
Document number: DS35649 Rev. 7 - 2
1 of 4
May 2013
© Diodes Incorporated
SDM0230CSP
NEW PROD
UC
T
NEW PROD
UC
T
0.2A SCHOTTKY BARRIER DIODE CHIP SCALE PACKAGE
Product Summary
V
RRM
(V)
I
O
(mA) V
F(MAX)
(V) @ +25°C I
R(MAX)
(mA) @ +25°C
30 200
0.50
0.05
Description
The SDM0230CSP is a 30-volt 0.2A schottky barrier diode that is
optimized for low forward voltage drop and low leakage current housed in
a compact chip scale package (CSP) that occupies only 0.18mm
2
board-
space. The low thermal resistance enables designers to meet design
challenges of increasing efficiency whilst at the same time reducing
board space. It is ideally suited for use in portable applications.
Applications
Blocking
Diode
Switching
Diode
Reverse Protection Diode
Boost
Diode
Features and Benefits
0.18mm
2
footprint – 70% smaller than DFN1006/SOD923
Off board profile of 0.3mm – more than 30% thinner than the
DFN1006
Low forward voltage of 0.50V (max) – minimises power
dissipation losses
Low leakage – maximises battery power
Soft, Fast Switching Capability
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case:
X3-WLCUS0603-3
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Dot
Weight:
0.119mg
Ordering Information
(Note 4)
Part Number
Case
Packaging
SDM0230CSP-7
X3-WLCUS0603-3
3,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
X7 = Product Type Marking Code
Dot denotes Cathode Pin
C
A
Pin 2
Pin 1
