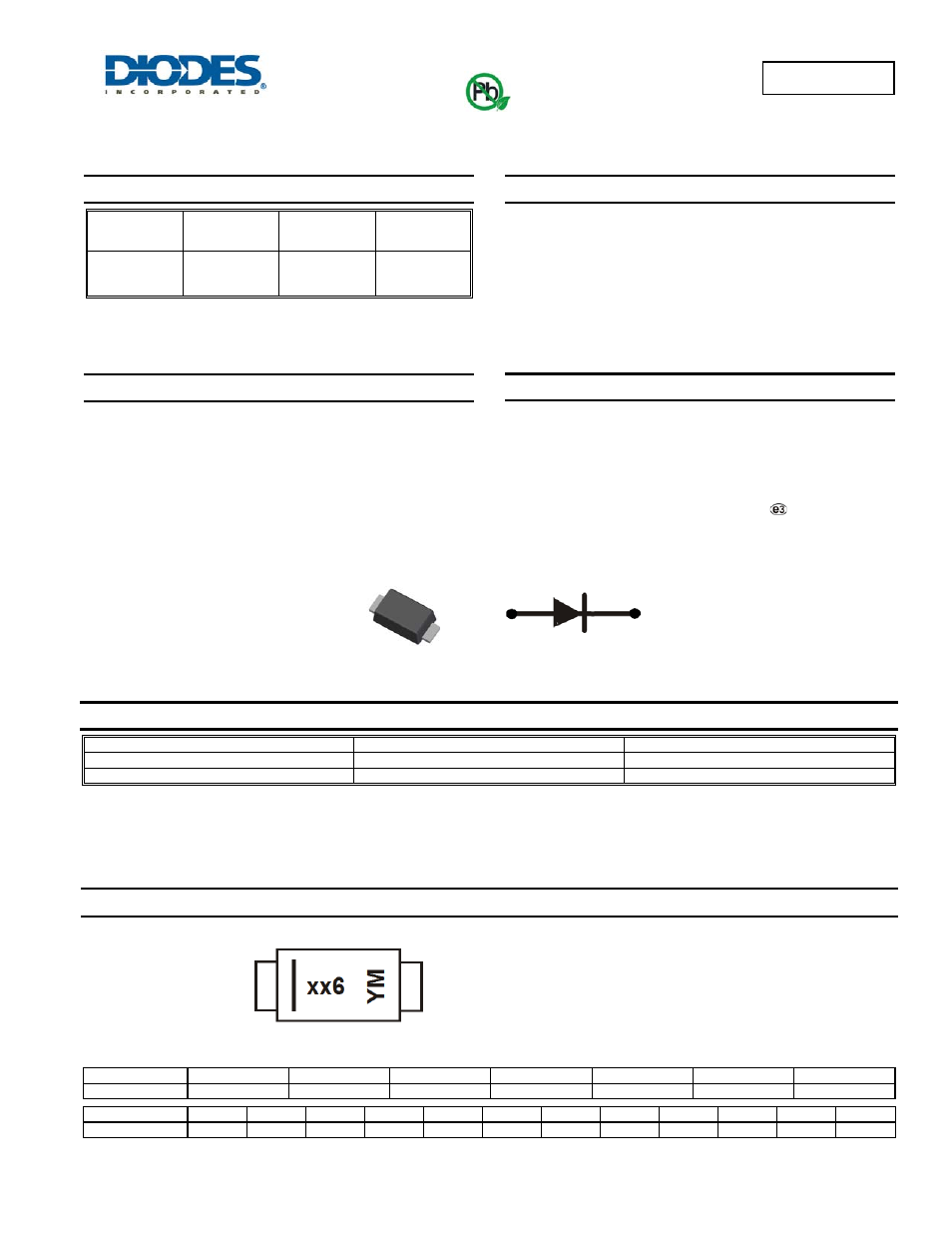

SBR3U60P1

Document number: DS35272 Rev. 5 - 2

1 of 5

www.diodes.com

July 2013

© Diodes Incorporated

SBR3U60P1

SBR and POWERDI are registered trademark of Diodes Incorporated.


3A SBR

®

SUPER BARRIER RECTIFIER

POWERDI

®

Product Summary

V

RRM

(V)

I

O

(A)

V

Fmax

(V)

I

R max

(µA)

60 3 0.65

100



Description and Applications

The SBR3U60P1 is a single rectifier in POWERDI123 package.
Offering excellent high temperature stability and very low forward
voltage, this device is ideal for use in the following applications.
 Bridge

diodes

 Blocking

diodes

Reverse protection diodes

Features and Benefits

Ultra Low Forward Voltage Drop

Low reverse leakage current

Patented Interlocking Clip Design for High Surge Current
Capacity

Soft, Fast Switching Capability

+150°C Operating Junction Temperature

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

 Case:

POWERDI123

Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Polarity Indicator: Cathode Band

Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

Weight: 0.018 grams (approximate)






Ordering Information

(Note 4)

Part Number

Case

Packaging

SBR3U60P1-7

POWERDI123

3000/Tape & Reel

SBR3U60P1-13

POWERDI123

10,000/Tape & Reel

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information










Date Code Key

Year

2011

2012

2013

2014

2015

2016

2017

Code

Y Z A B C D E

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code

1 2 3 4 5 6 7 8 9 O N D


Top View

Device symbol

SV6, 3U6 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)

POWERDI123

Green
