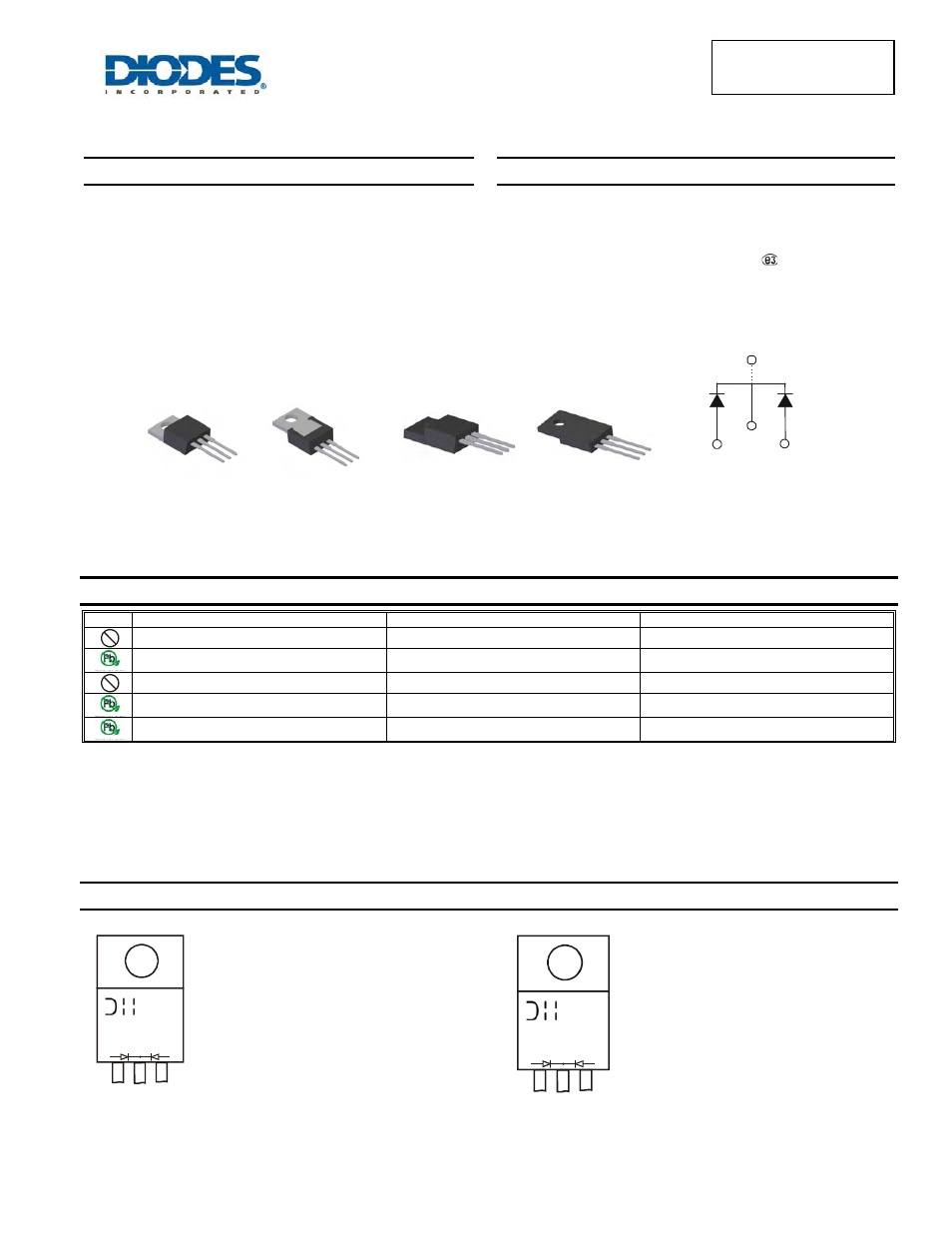

SBR30M100
Document number: DS30985 Rev. 7 - 2
1 of 5
www.diodes.com
July 2012
© Diodes Incorporated
SBR30M100CT
SBR30M100CTFP
SBR is a registered trademark of Diodes Incorporated.
30A SBR
®
SUPER BARRIER RECTIFIER
Features
• Low Forward Voltage Drop
• Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
• 200ºC Operating Junction Temperature
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Also Available in Green Molding Compound
ƒ
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case: TO-220AB, ITO-220AB
• Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
• Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: TO-220AB – 1.85 grams (approximate)
ITO-220AB – 1.65 grams (approximate)
Ordering Information
(Notes 4 & 5)
Part Number Case Packaging
Pb SBR30M100CT TO-220AB 50 pieces/tube
Green
SBR30M100CT-G TO-220AB 50 pieces/tube
Pb SBR30M100CTFP ITO-220AB 50 pieces/tube
Green
SBR30M100CTFP-G ITO-220AB 50 pieces/tube
Green
SBR30M100CTFP-JT-G ITO-220AB(Alternate) 50 pieces/tube
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR30M100CT-G.
5. For packaging details, go to our website at http://www.diodes.com.
Marking Information
TO-220AB
Top View
ITO-220AB
Top View
Package Pin Out
Configuration
TO-220AB
Bottom View
ITO-220AB
Bottom View
1
2
3
Anode
Common
Cathode
Anode
SBR30M100CTFP = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 06 = 2006)
WW = Week (01 – 53)
SBR30M100CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 06 = 2006)
WW = Week (01 - 53)
30M100CT
YYWW AB
SBR
30M100CTFP
YYWW AB
SBR
