SBR3060CTB
Document number: DS31955 Rev. 3 - 2
1 of 4
www.diodes.com
March 2014
© Diodes Incorporated
SBR3060CTB
ADVAN
CE I
N
F
O
RM
ATI
O
N
30A SBR ®
SUPER BARRIER RECTIFIER
Features
 Low Forward Voltage Drop
 Low Leakage Current
 Excellent High Temperature Stability
 Patented Super Barrier Rectifier Technology
 Soft, Fast Switching Capability
 150ºC Operating Junction Temperature
 Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Mechanical Data
 Case: TO263 (D 2 Pak)
 Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
 Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
 Weight: 1.6 grams (approximate)
Ordering Information
(Note 3)
Part Number Case Packaging
SBR3060CTB TO263 50 pieces/tube
SBR3060CTB-13 TO263 800/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

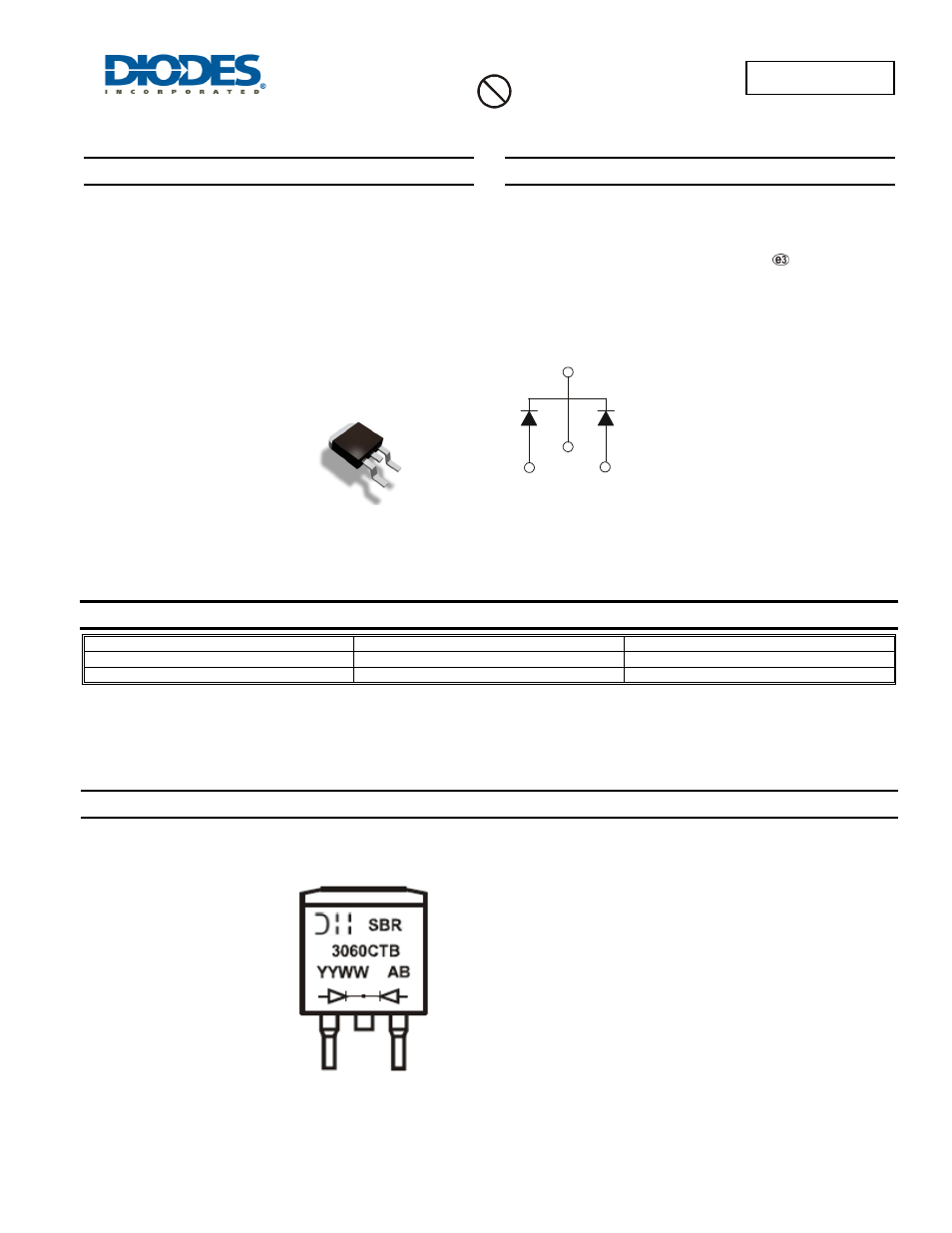

Marking Information
Top View Package Pin Out
Configuration
Pb
1
2
3
Anode
Common
Cathode
Anode
TO263
SBR3060CTB = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 14 = 2014)
WW = Week (01 - 53)
