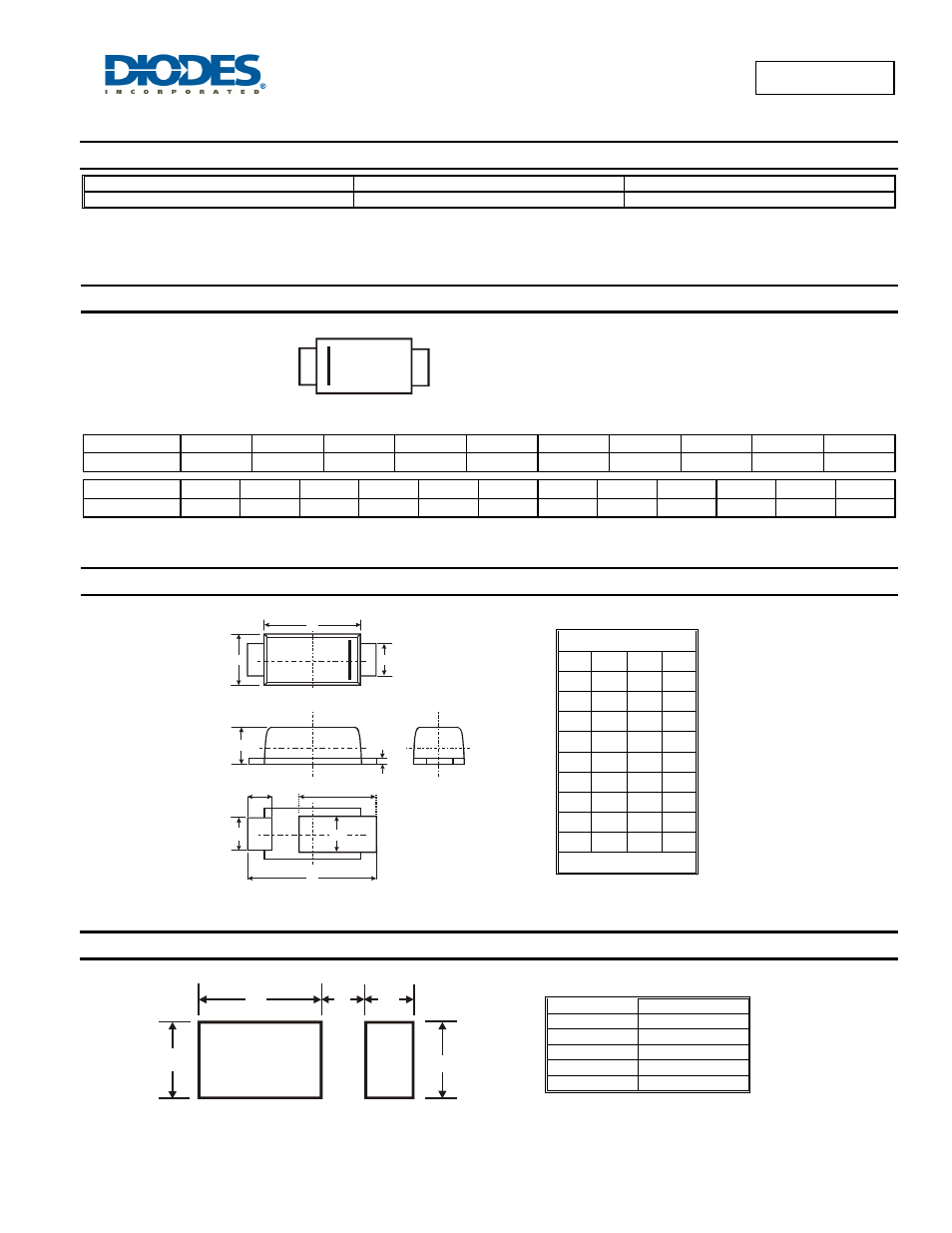

Page 4: Marking information, Package outline dimensions, Suggested pad layout
SBR2A40P1
Document number: DS30919 Rev. 10 - 2
4 of 5
April 2010
© Diodes Incorporated
SBR2A40P1
SBR and PowerDI are registered trademarks of Diodes Incorporated.
Ordering Information
(Note 6)
Part Number
Case
Packaging
SBR2A40P1-7 PowerDI
®
123
3000/Tape & Reel
Notes:
6. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2006
2007
2008
2009
2010
2011
2012
2013 2014 2015
Code T U V W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Package Outline Dimensions
Suggested Pad Layout
PowerDI
®
123
Dim
Min Max
Typ
A
3.50 3.90 3.70
B
2.60 3.00 2.80
C
1.63 1.93 1.78
D 0.93 1.00 0.98
E 0.85 1.25 1.00
H
0.15 0.25 0.20
L
0.55 0.75 0.65
L1
1.80 2.20 2.00
L2
0.95 1.25 1.10
All Dimensions in mm
Dimensions
Value (in mm)
G
1.0
X1
2.2
X2
0.9
Y1
1.4
Y2
1.4
2A4 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: T = 2006)
M = Month (ex: 9 = September)
2A4
YM
A
E
L
L1
B
C
E
L2
H
D
X1
G
X2
Y2
Y1
