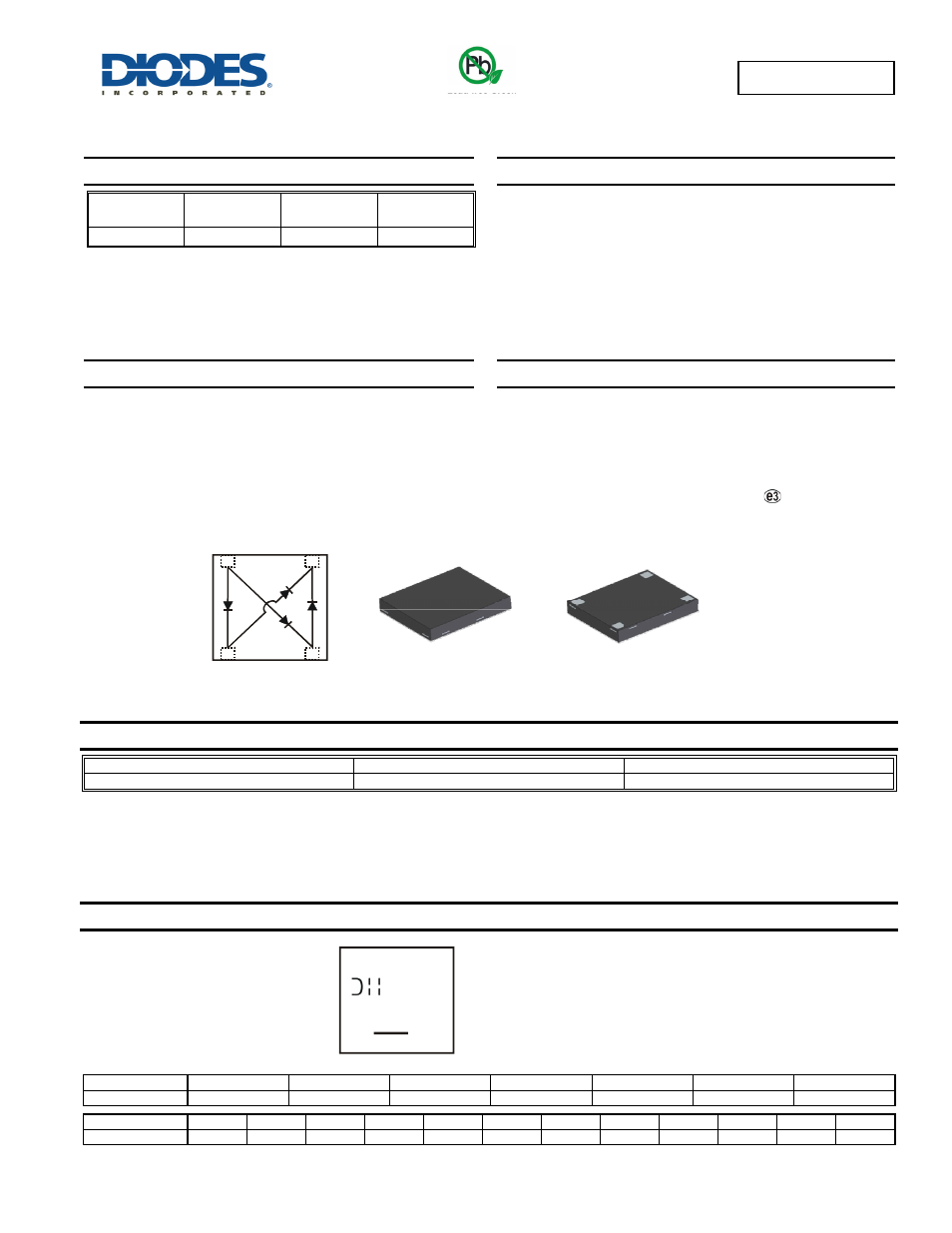

SBR2A40BLP
2.0A SBR
®
BRIDGE
SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V) I
O
(A)
V
F MAX
(V)
@ +25°C
I
R MAX
(mA)
@ +25°C
40 2 0.5 0.1
Description
Packaged in the compact DFN5060-4 the SBR2A40BLP has been
designed with low forward voltage and low reverse leakage to meet
the needs of LED Lighting applications and wireless charging
applications.
Features and Benefits
Low profile package, ideal for thin portable applications
Low reverse leakage ensuring greater stability at higher
temperatures.
Low forward voltage (V
F
) minimises conduction losses and
improving efficiency
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
V-DFN5060-4
Case Material: Molded Plastic “Green” Molding Compound, UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.0715 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
SBR2A40BLP-13
V-DFN5060-4
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
(-)
(+)
(~)
(~)
Green
_
+
~
~
YM
SQ4
Top View
Device Schematic
Top View
Bottom View
SQ4= Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z =2012)
M = Month (ex: 9 = September)
