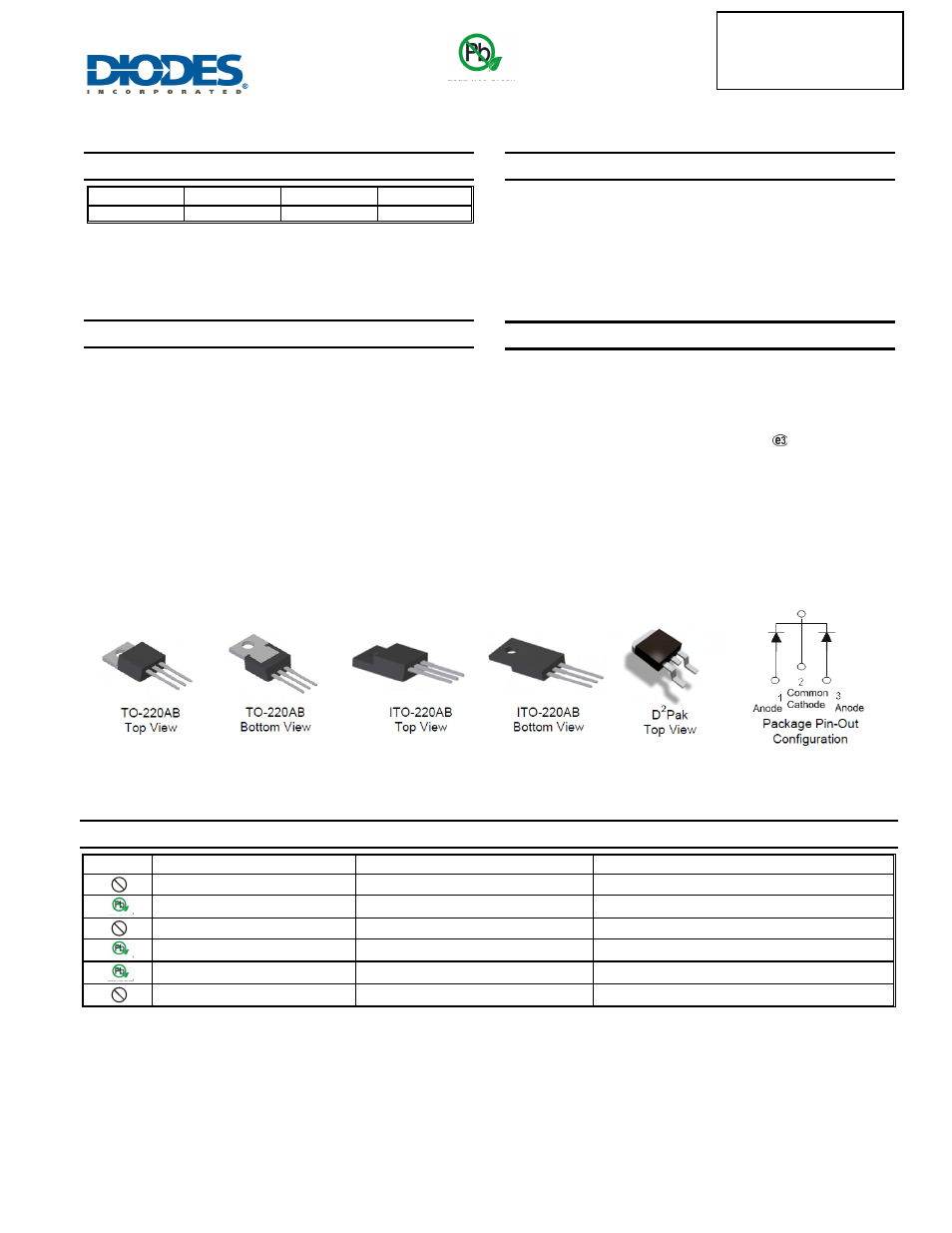

Diodes SBR20A300CTFP - Manual

SBR is a registered trademark of Diodes Incorporated.
SBR20A300
Document number: DS30993 Rev. 8 - 2
1 of 6
www.diodes.com
January 2014
© Diodes Incorporated
SBR20A300CT
SBR20A300CTB
SBR20A300CTFP
20A SBR ®
SUPER BARRIER RECTIFIER
Product Summary
(@T
A
= +25°C)
V
RRM
(V) I
O
(A) V
F MAX
(V) I
R MAX
(µA)
300 20 0.92 100
Description and Applications
This Super Barrier Rectifier has been designed to meet the general
requirements of commercial applications. It is ideally suited for use
as:
 Polarity Protection Diode
 Re-Circulating Diode
 Boost Diode
 Blocking Diode
Features and Benefits
 Low Forward Voltage Drop
 Excellent High Temperature Stability
 Patented Super Barrier Rectifier Technology
 Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
 Also Available in Green Molding Compound - Halogen and
Antimony Free. “Green” Device (Note 3)
Mechanical Data
 Case: TO-220AB, ITO-220AB, TO263 (D 2 Pak)
 Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
 Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
 Marking Information: See Page 2
 Ordering Information: See Page 1
 Weight: TO-220AB – 1.85 grams (approximate)
ITO-220AB – 1.65 grams (approximate)
TO263 (D 2 Pak) – 2.1 grams (approximate)
Ordering Information
(Notes 4 & 5)
Part Number Case Packaging
SBR20A300CT TO-220AB 50 pieces/tube
SBR20A300CT-G TO-220AB 50 pieces/tube
SBR20A300CTFP ITO-220AB 50 pieces/tube
SBR20A300CTFP-G ITO-220AB 50 pieces/tube
SBR20A300CTFP-JT-G ITO-220AB (Alternate) 50 pieces/tube
SBR20A300CTB TO263 (D 2 Pak) 50 pieces/tube
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
5. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR20A300CT-G.
