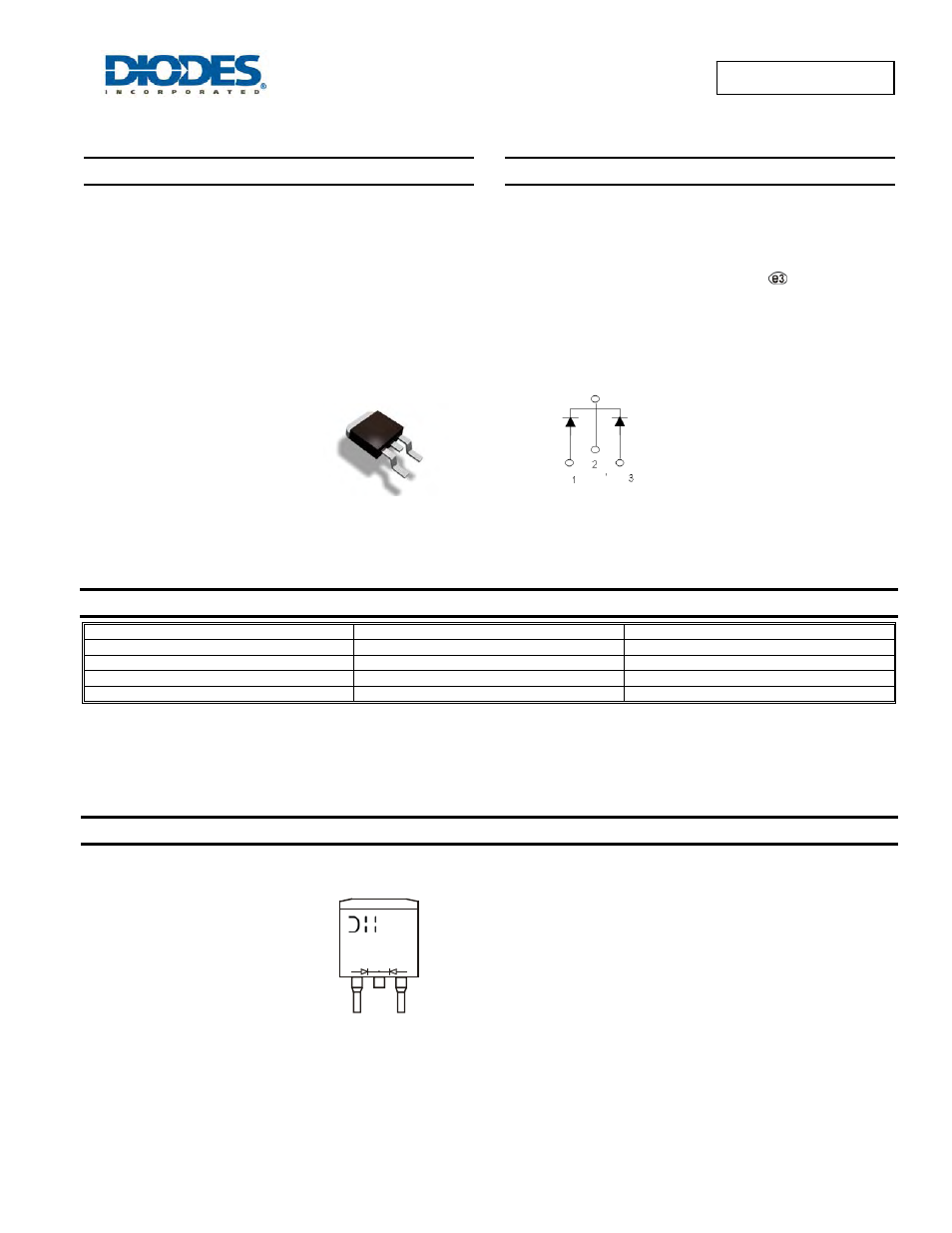

Diodes SBR20A200CTB User Manual
Features, Mechanical data, Ordering information
SBR20A200CTB
Document number: DS31076 Rev. 7 - 2
1 of 4
July 2011
© Diodes Incorporated
SBR20A200CTB
SBR is a registered trademark of Diodes Incorporated.
20A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
• Low
Leakage
Current
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
175ºC Operating Junction Temperature
•
Lead Free Finish, RoHS Compliant (Note 1)
•
Also Available in Green Molding Compound (Note 2)
Mechanical Data
• Case:
D
2
Pak
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 1.6 grams (approximate)
Ordering Information
(Notes 2 & 3)
Part Number
Case
Packaging
SBR20A200CTB D
2
Pak 50
pieces/tube
SBR20A200CTB-G D
2
Pak 50
pieces/tube
SBR20A200CTB-13 D
2
Pak 800/Tape
&
Reel
SBR20A200CTB-13-G D
2
Pak 800/Tape
&
Reel
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR20A200CTB-G.
3. For packaging details, go to our website at
Marking Information
Top View
Package Pin Out
Configuration
t
Anode
Common
Cathode
Anode
SBR20A200CTB = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 07 = 2007)
WW = Week (01 - 53)
YYWW
AB
20A200CTB
SBR
