SBR20A120CTE
NEW PROD
UC
T
20A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Also Available in Green Molding Compound
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case:
TO262
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 1.355 grams (approximate)
Ordering Information
(Notes 4 & 5)
Part Number
Case
Packaging
Pb
SBR20A120CTE TO262
50
pieces/tube
Green
SBR20A120CTE-G TO262
50
pieces/tube
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR20A120CTE-G.
5. For packaging details, go to our website at

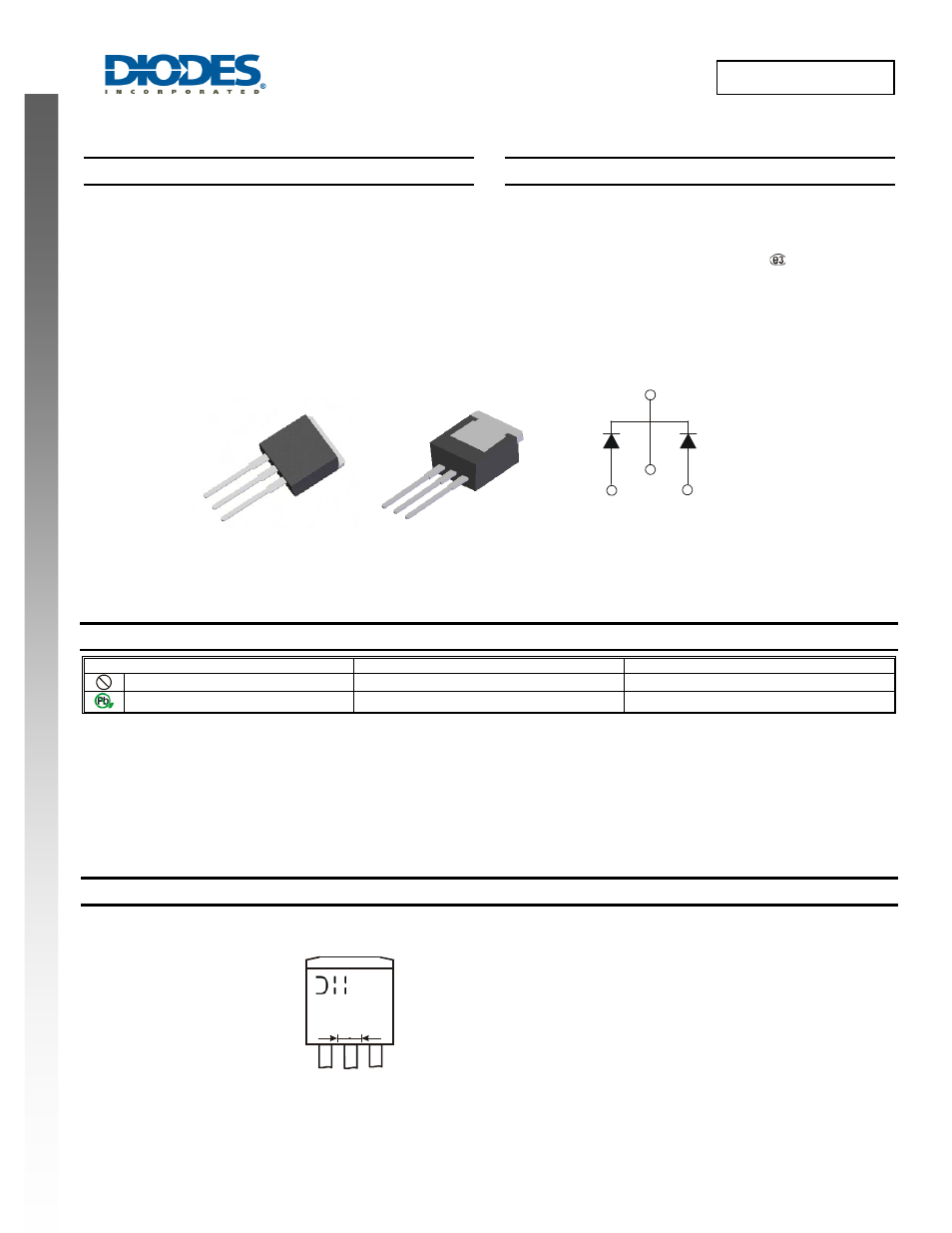

Marking Information
Top View
Bottom View
Package Pin Out
Configuration
1
2
3
Anode
Common
Cathode
Anode
TO262
SBR20A120CTE = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 11 = 2011)
WW = Week (01 - 53)
YYWW
AB
20A120CTE
SBR
