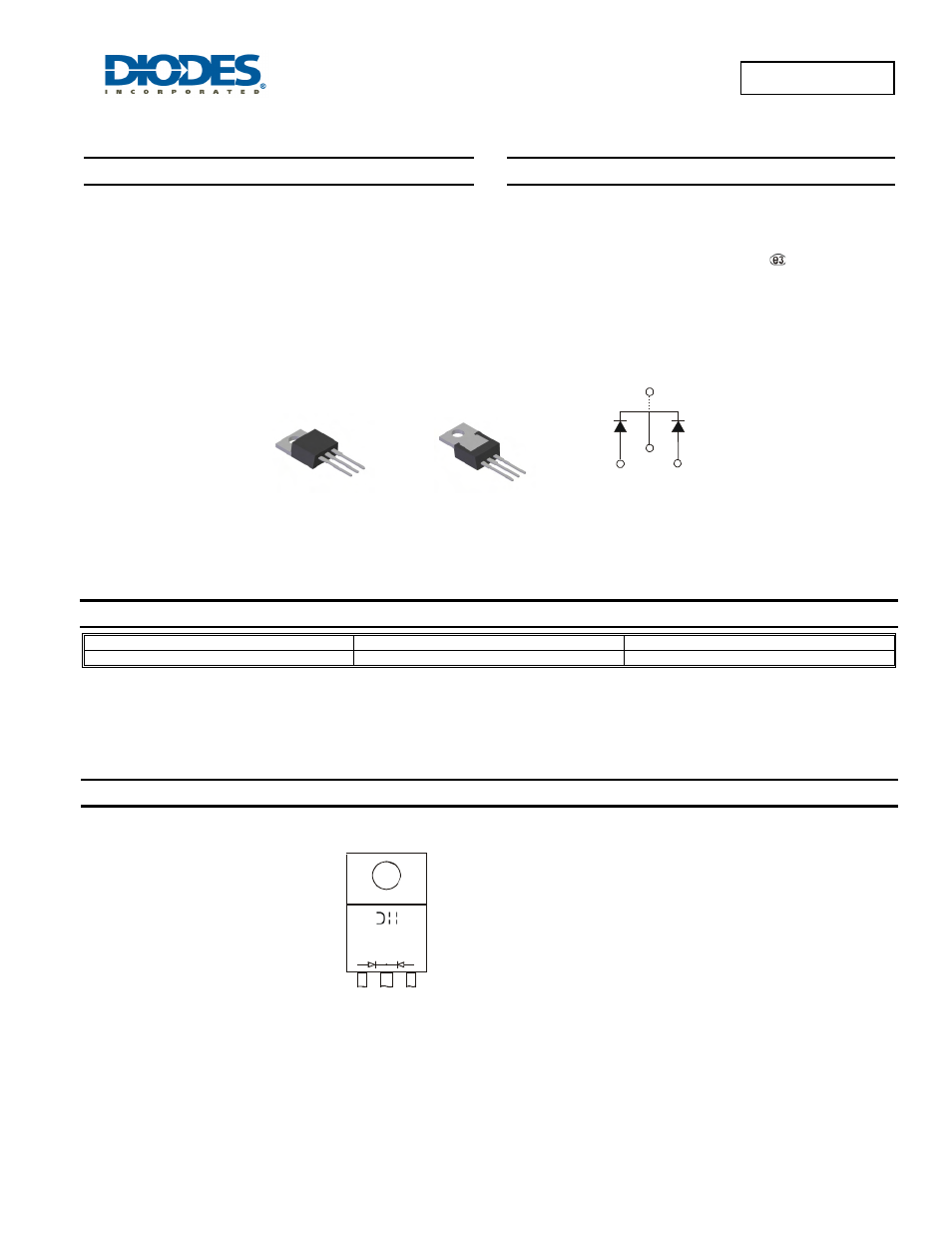

SBR20100CTP

Document number: DS31762 Rev. 6 - 2

1 of 4

www.diodes.com

December 2010

© Diodes Incorporated

SBR20100CTP

SBR is a registered trademark of Diodes Incorporated.


20A SBR

®

SUPER BARRIER RECTIFIER

Features

Low Forward Voltage Drop

Soft, Fast Switching Capability

• Schottky

Barrier

Chip

ITO-220S Heat Sink Tab Electrically Isolated from Cathode

UL Approval in Accordance with UL 1557, Reference No.
E94661

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

ITO-220S

Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0

Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

Weight: 1.35 grams (approximate)

Ordering Information

(Note 1)

Part Number

Case

Packaging

SBR20100CTP ITO-220S 50

pieces/tube

Notes:

1. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.

Marking Information













Package Pin Out

Configuration

Top View

1

2

3

4

Anode

Common

Cathode

Anode

Isolated

Bottom View

SBR20100CTP = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 - 53)

SBR20100CTP

YYWW

AB
