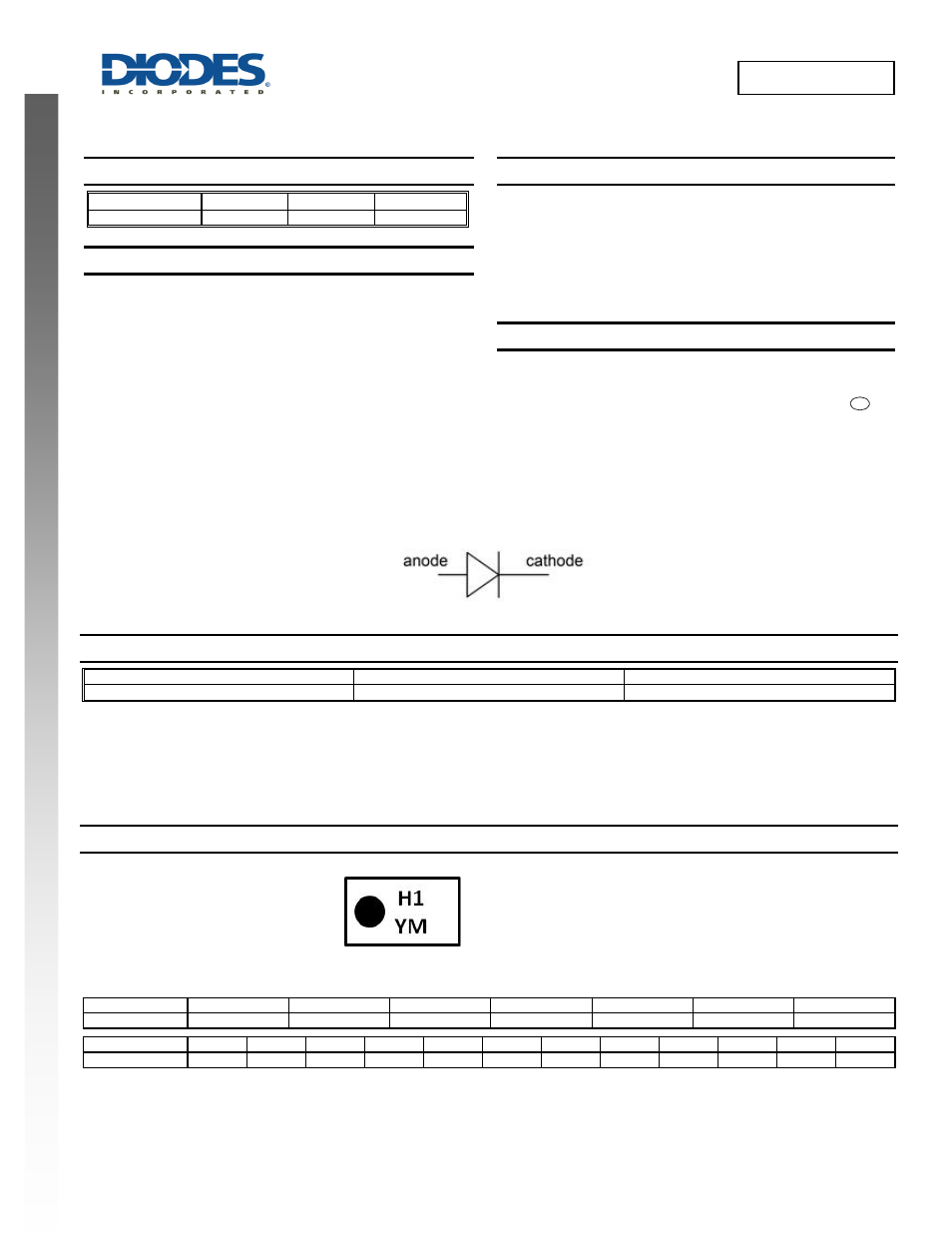

SBR1U30CSP
Document number: DS36110 Rev. 2 - 2
1 of 4
November 2013
© Diodes Incorporated
SBR1U30CSP
NEW PROD
UC
T
1A SBR
®
SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V) I
O
(A)
V
F max
(V)
I
R max
(µA)
30 1
0.48
75
Description and Applications
The SBR1U30CSP is a 30-volt 1A super barrier rectifier (SBR) that is
optimized for low forward voltage drop and low leakage current,
housed in a compact chip scale package (CSP) that occupies only
0.84mm
2
board-space. The low thermal resistance enables designers
to meet design challenges of increasing efficiency whilst at the same
time reducing board space. It is ideally suited for use in portable
applications as a:
• Blocking
Diode
• Boost
Diode
• Switching
Diode
•
Reverse Protection Diode
Features and Benefits
•
Low forward voltage (V
F
) minimizes conduction losses and
improving efficiency
•
Reduced high temperature reverse leakage; Increased reliability
against thermal runaway failure in high temperature operation
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case:
X2-WLB1406-2
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Solderable pads per MILSTD-202, Method 208
•
Polarity: Cathode Dot
•
Weight: 0.001 grams
Ordering Information
(Note 4)
Part Number
Case
Packaging
SBR1U30CSP-7
X2-WLB1406-2
3,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2013
2014
2015
2016
2017
2018
2019
Code
A B C D E F G
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
H1 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
e3
