SBR1U150SA
Document number: DS31341 Rev. 7 - 2
1 of 5
September 2012
© Diodes Incorporated

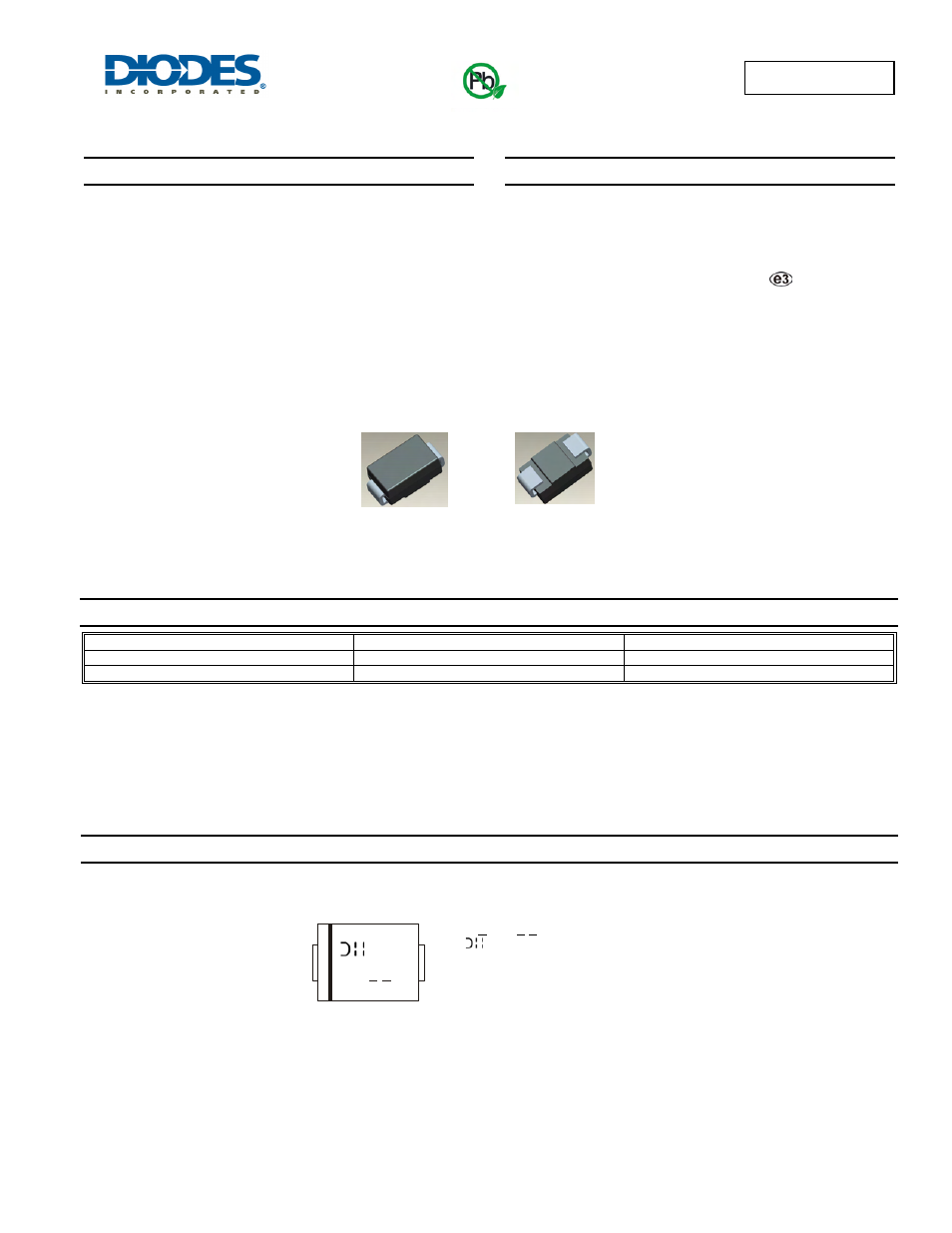

SBR1U150SA
1.0A SBR
®
SURFACE MOUNT SUPER BARRIER RECTIFIER
Features
•
Ultra Low Forward Voltage Drop
•
Excellent High Temperature Capability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
150ºC Operating Junction Temperature
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SMA
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: Lead Free Plating (Matte Tin Finish.)
Solderable per MIL-STD-202, Method 208
•
Polarity Indicator: Cathode Band
•
Weight: 0.064 grams (approximate)
Ordering Information
(Note 5)
Part Number
Case
Packaging
SBR1U150SA-13
SMA
5000/Tape & Reel
SBR1U150SAQ-13
SMA
5000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
5. For packaging details, go to our website at
Marking Information
Top View
Bottom View
SMA
Green
S D B, S V B = Product Type Marking Code
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last digit of year (ex: 7 for 2007)
WW = Week code (01 to 53)
AB = Foundry and Assembly Code
YWW
S x x
AB
