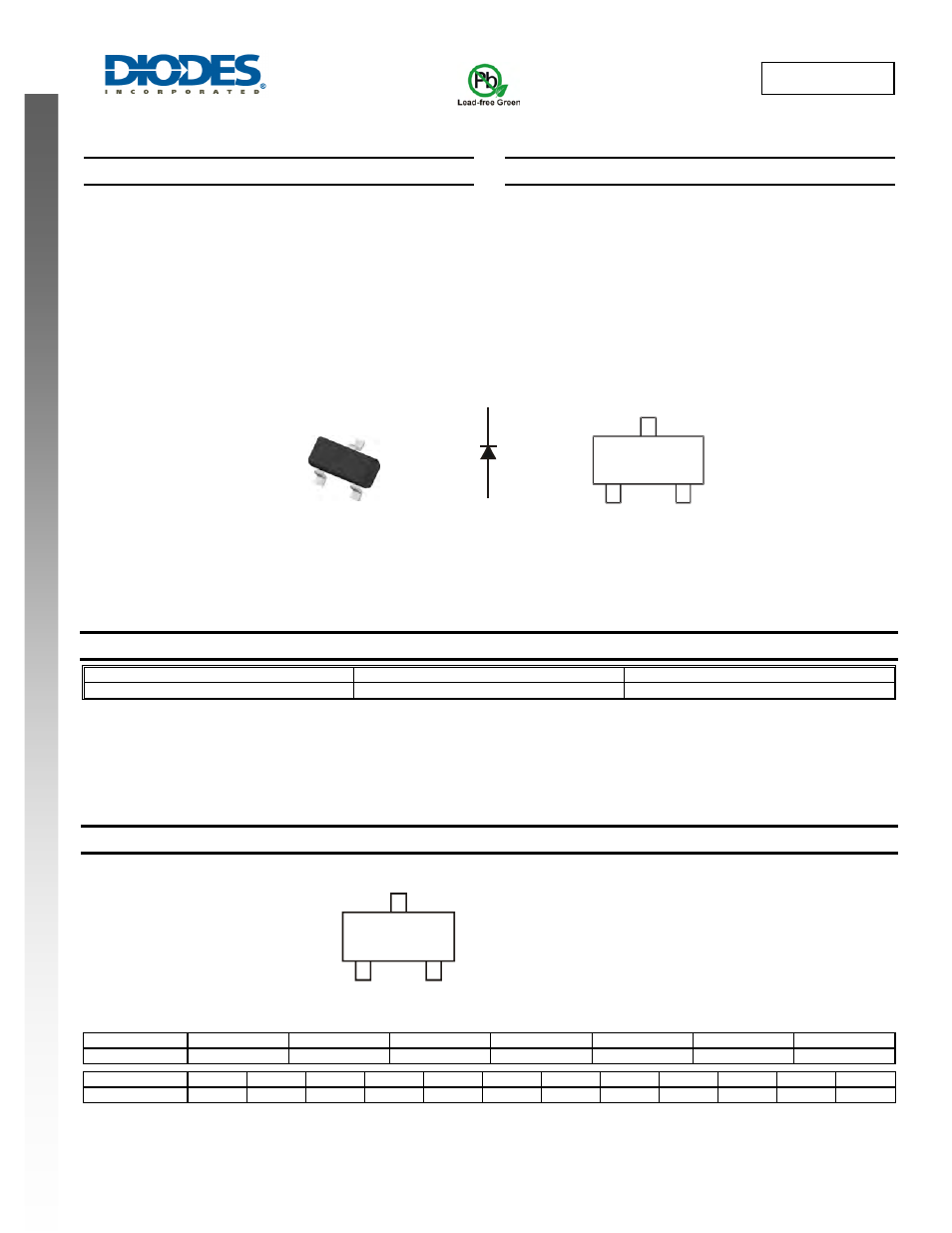

SBR160S23
SBR is a registered trademark of Diodes Incorporated.
NEW PROD
UC
T
1A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
•
Low Reverse Leakage
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, fast switching capability
•
150ºC Operating Junction Temperature
•
Lead, Halogen and Antimony Free, RoHS Compliant
•
“Green” Device (Note 1)
Mechanical Data
• Case:
SOT-23
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Polarity: See Diagram
•
Weight: 0.008 grams (approximate)
Ordering Information
(Note 2)
Part Number
Case
Packaging
SBR160S23-7
SOT-23
3000/Tape & Reel
Notes:
1. Diodes Inc.`s “Green” Policy can be found on our websit
Marking Information
Date Code Key
Year
2010
2011
2012
2013
2014
2015
2016
Code X
Y
Z
A
B
C D
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
KD6 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: X = 2010)
M = Month (ex: 9 = September)
KD6
YM
Top View
Pin Configuration
Device Schematic
1
3
1
3
2
C
A
N/C
