SBR130S3
Document number: DS31099 Rev. 6 - 2
1 of 4
April 2012
© Diodes Incorporated
SBR130S3
NEW PROD
UC
T
1A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
•
Low Reverse Leakage
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, fast switching capability
•
150ºC Operating Junction Temperature
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)

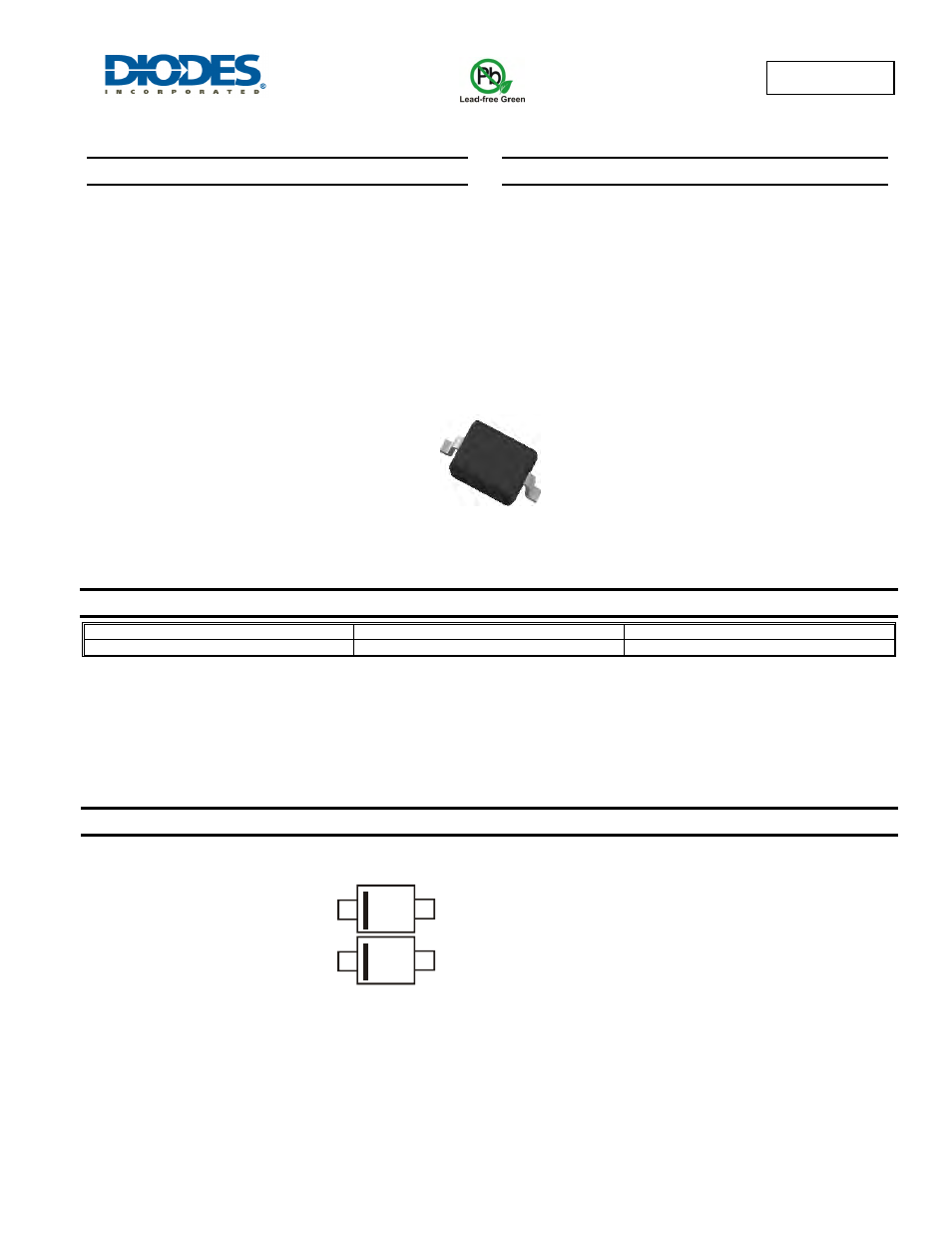

Mechanical Data
• Case:
SOD323
•
Case Material: Molded Plastic, “Green” Molding Compound.
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.004 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
SBR130S3-7
SOD323
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
SOD323
D3, JE = Product Type Marking Code
D3
JE
