SBR10U200P5
Document number: DS31234 Rev. 8 - 2
1 of 5
www.diodes.com
October 2012
© Diodes Incorporated

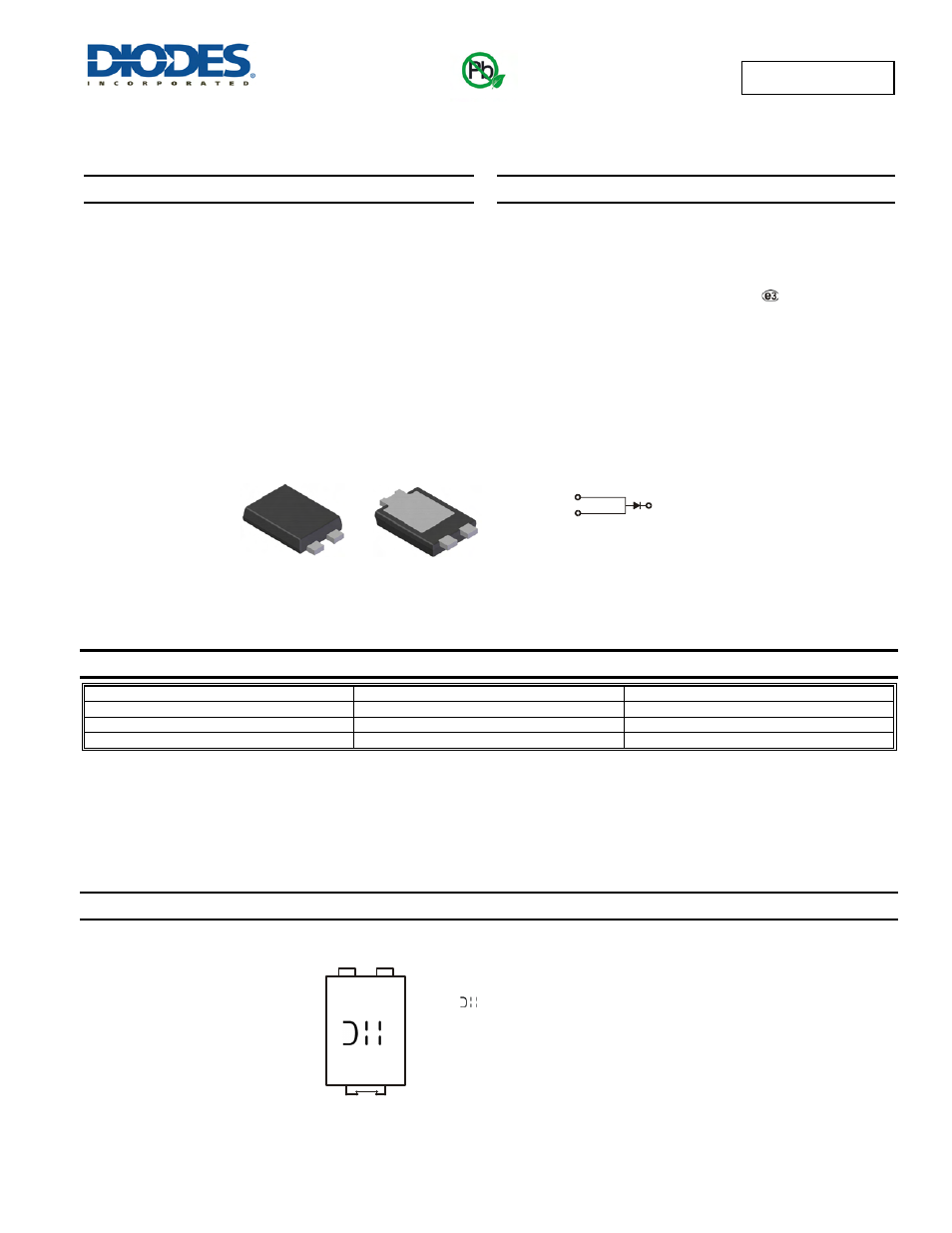

SBR10U200P5
10A SBR
®
SUPER BARRIER RECTIFIER
POWERDI
®
Features
• Ultra Low Forward Voltage Drop
• Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
• 175ºC Operating Junction Temperature
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: POWERDI5
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Polarity: See Diagram
• Weight: 0.093 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
SBR10U200P5-13 POWERDI5 5000/Tape & Reel
SBR10U200P5-7 POWERDI5 1500/Tape & Reel
SBR10U200P5Q-13 POWERDI5 5000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
Top View Bottom View
Green
S10U200 = Product Type Marking Code
= Manufacturers’ Code Marking
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 08 for 2008)
WW = Week Code (01 - 53)
K = Factory Designator
YYWWK
S10U200
LEFT PIN
RIGHT PIN
Note: Pins Left & Right must
be electrically connected
at the printed circuit board.
BOTTOMSIDE
HEAT SINK
POWERDI5
