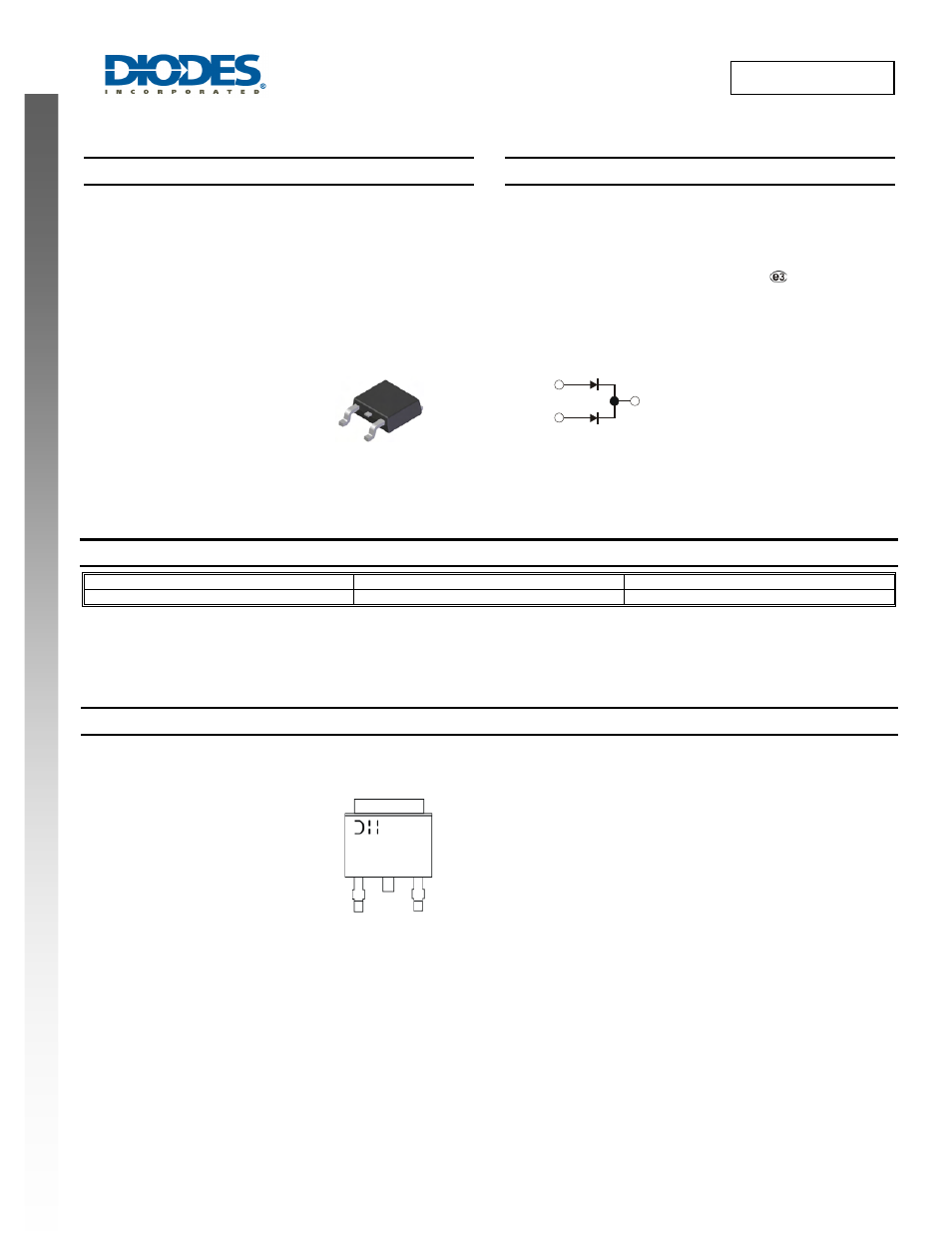

Diodes SBR10100CTL User Manual
Features, Mechanical data, Ordering information

SBR10100CTL
Document number: DS31206 Rev. 3 - 2
1 of 4
December 2011
© Diodes Incorporated
SBR10100CTL
NEW PROD
UC
T
SBR is a registered trademark of Diodes Incorporated
10A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
Lead Free Finish, RoHS Compliant (Note 1)
•
“Green” Molding Compound (No Br, Sb)
Mechanical Data
• Case:
TO252
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.37 grams (approximate)
Ordering Information
(Note 2)
Part Number
Case
Packaging
SBR10100CTL-13 TO252 2500
pieces/reel
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For packaging details, go to our website at
Marking Information
Top View
Package Pin-Out Configuration
2
1
3
SBR10100CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 09 = 2009)
WW = Week (01 - 53)
YYWW AB
10100CT
SBR
