2. INSTALLATION
Before installing the KVM switch, you should run through the following peripheral checklist
to ensure a proper setup of your KVM Switch….
2.1. Checklist before Installation
Suitable cables to connect the KVM Switch to the keyboard, video and mouse
ports of each of your PC. For each computer connected, you should have PS/2
mouse cable (all male) and PS/2 keyboard cable (all male) and a HDB-15 VGA
cable (all male). A 3-in-1 combo cable is highly recommended for your
convenience. For more information on the cable specifications, look up in the
Appendix A.
A monitor with a standard D-sub 15-pin VGA/SVGA connector
(HDB-15) that will work when connected directly to each of your PCs.
A standard PS/2 style keyboard. If you are using an AT keyboard with a 5
pin connector you should use a standard AT-to-PS/2 keyboard adapter to
connect to the KVM Switch.
A PS/2 style Microsoft or Logitech compatible mouse or
a Microsoft IntelliMouse® / IntelliMouse Explorer® compatible
mouse

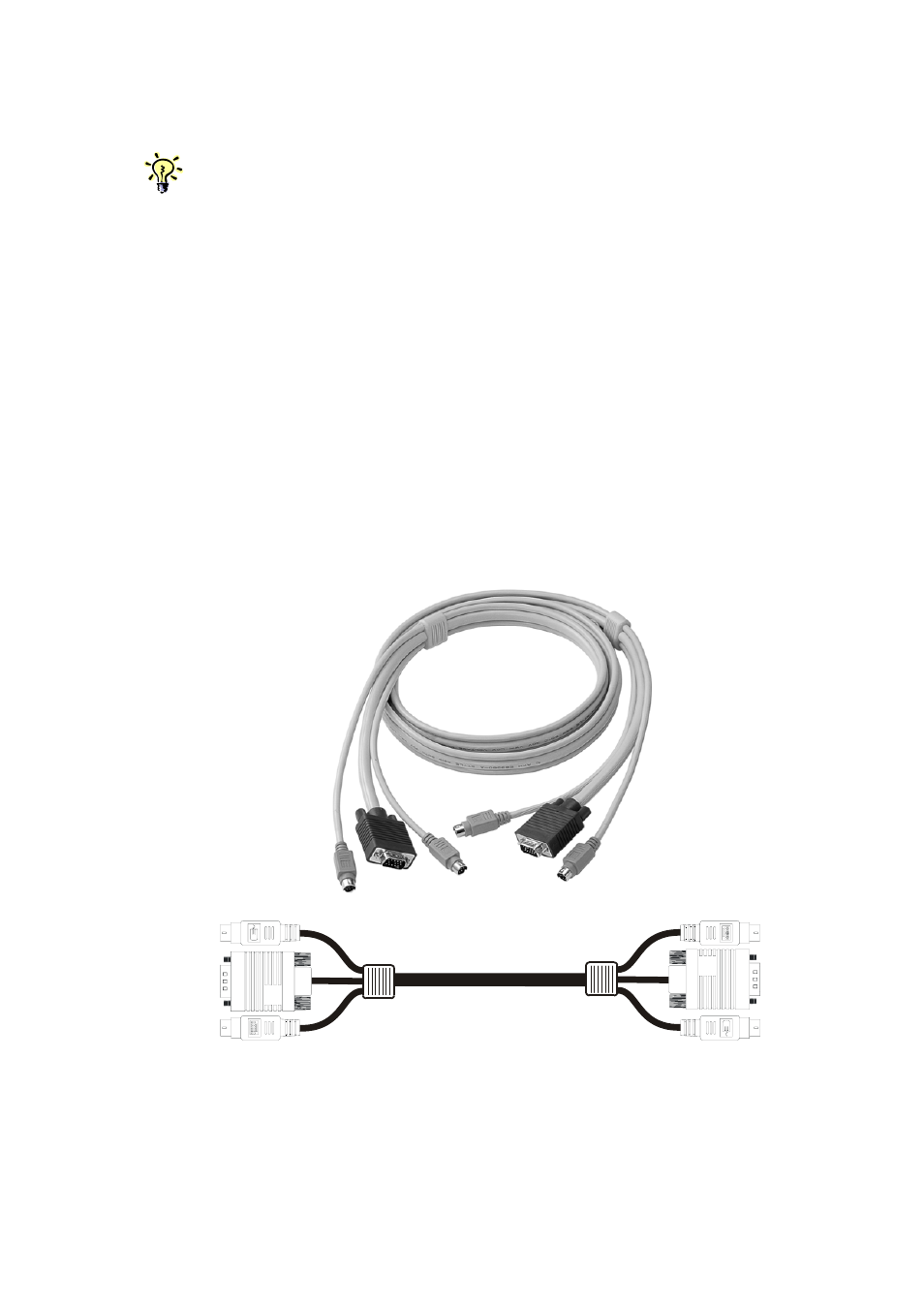

Figure 2-1 The 3-1 combo KVM cable is highly recommended
