Remote control mode
THE WORM laser can be operated using the supplied handheld infra-red remote control.
To use this remote control, firstly, remove the plastic tab at the bottom of the remote to
activate the internal battery. If necessary, this can be replaced with a standard CR2025 button
cell.
The Remote mode for the laser unit is set via the control panel as follows…
 Press the FUNC button until  is displayed and press ENTER
 Direct the handheld remote control toward the I.R receiver on the front panel
 See the remote control options below for operation

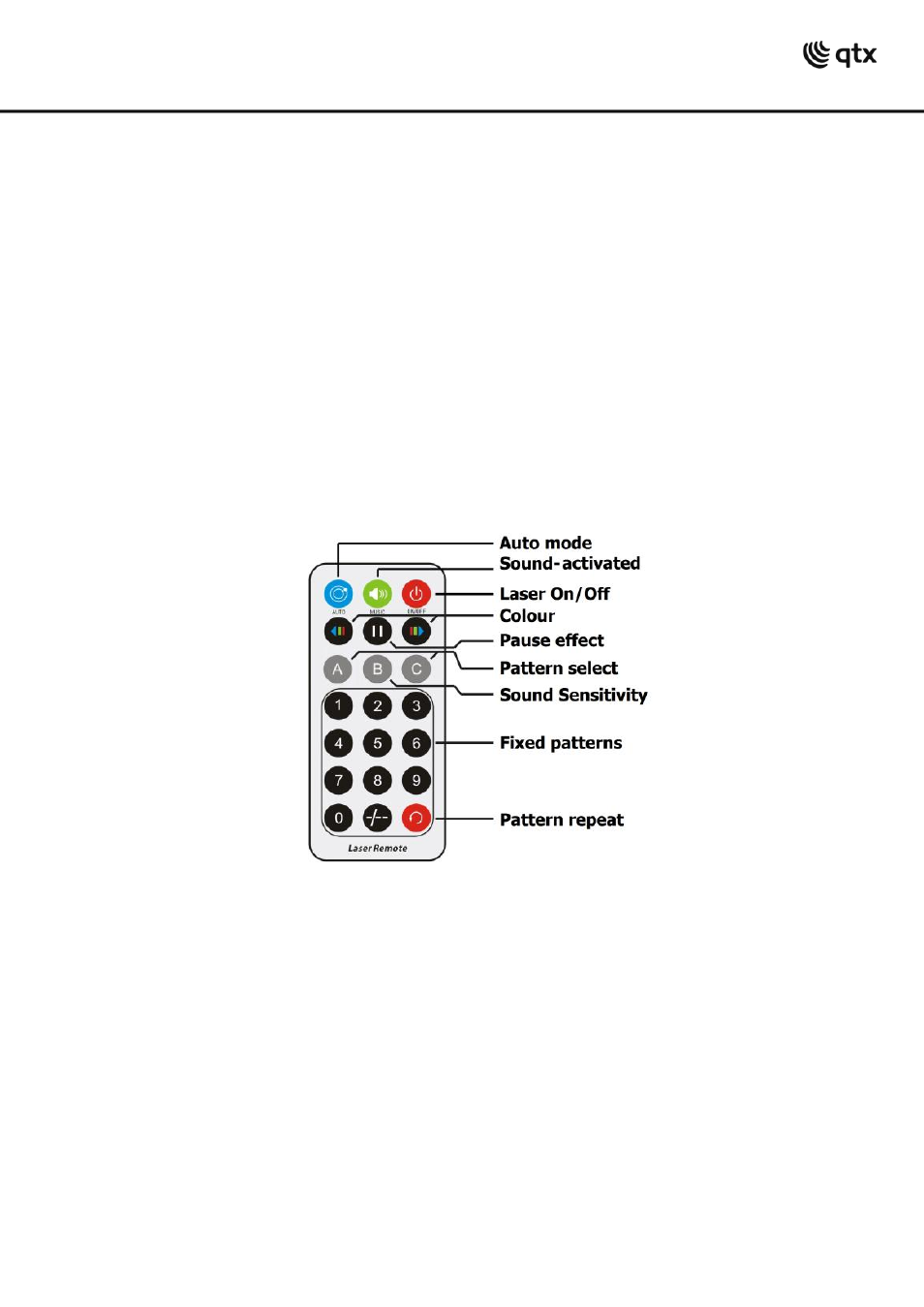

Remote handset
Note: When sound-activated mode is selected from the remote control…
Press “Sound-activated”… then “B”… then a number from 1 to 9 to set microphone sensitivity.
Invert mode
THE WORM laser can produce a fixed cross pattern for testing size and projection against a
surface and the image can be inverted horizontally and vertically, depending upon the
orientation of the unit in relation to the projection surface. To adjust or invert the image, press
FUNC until
 is displayed and use the UP and DOWN buttons to step through normal,
inverted horizontal, inverted vertical and inverted both horizontal and vertical cross patterns.
