Air Suspension C-2546 REV 7 User Manual
Page 8
8
C-2546RR REV 7 04/28/2014

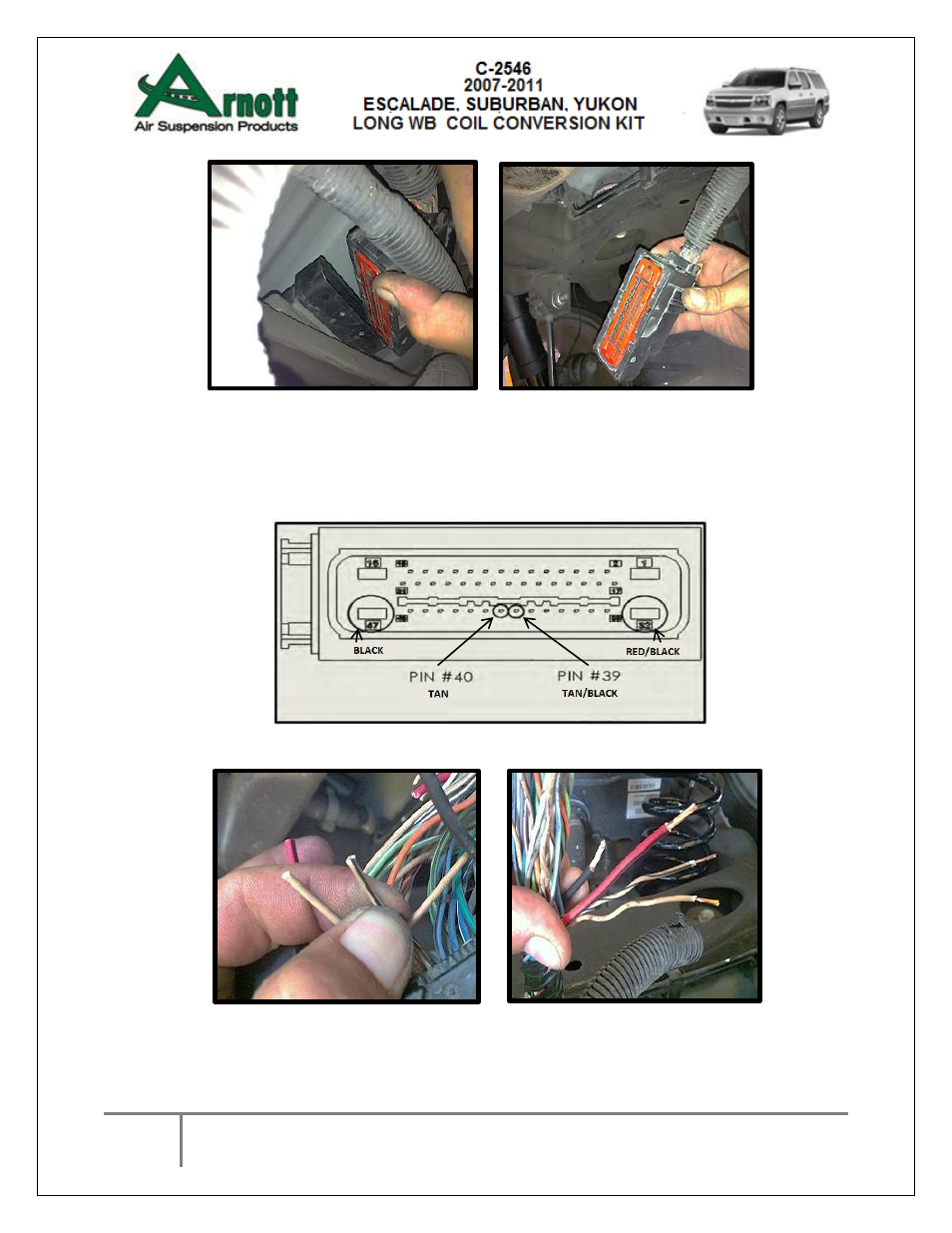

Figure C
Figure D
3.0
Once wire harness clip is removed, unplug harness. Allow wire harness plug
to hang down. Figure C & D.
Figure E
Figure F
4.0 Locate red w/black stripe, solid black, solid tan, tan w/ black stripe.
Cut each wire about an inch back from the plug. Strip back all 4 wires.
Figure E & F.
