Air Suspension C-2546 REV 7 User Manual
Page 3
3
C-2546RR REV 7 04/28/2014
4.0
Disconnect the air line
by turning clip 90 ̊. Locate and disconnect ride height
sensor.
5.0
Remove the upper air shock nut and bolt.
6.0
Disconnect brake line bracket which is bolted to the rear axle differential.
7.0
Support axle before disconnecting the sway bar end link.
8.0
Disconnect the sway bar end link.
8.0
Remove the lower air shock nut and bolt .
9.0
Remove air shock, (Install Spring before completing shock Install).
10.0
Removal complete, installation is in the reverse order of removal. Install upper
shock bolt, and allow shock to hang until spring installation is complete. Torque
upper shock bolt to manufacturer’s specification.

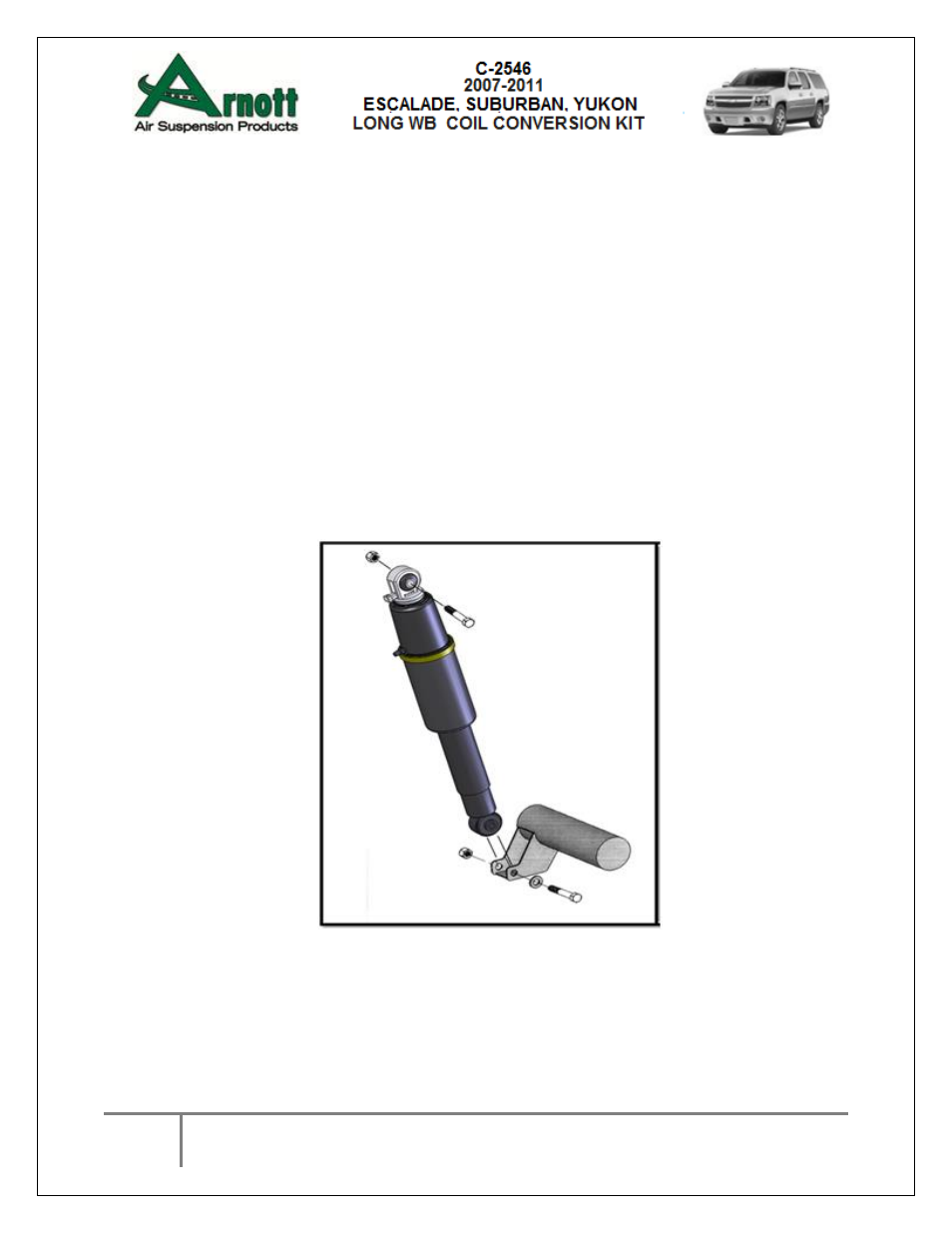

FIGURE A
