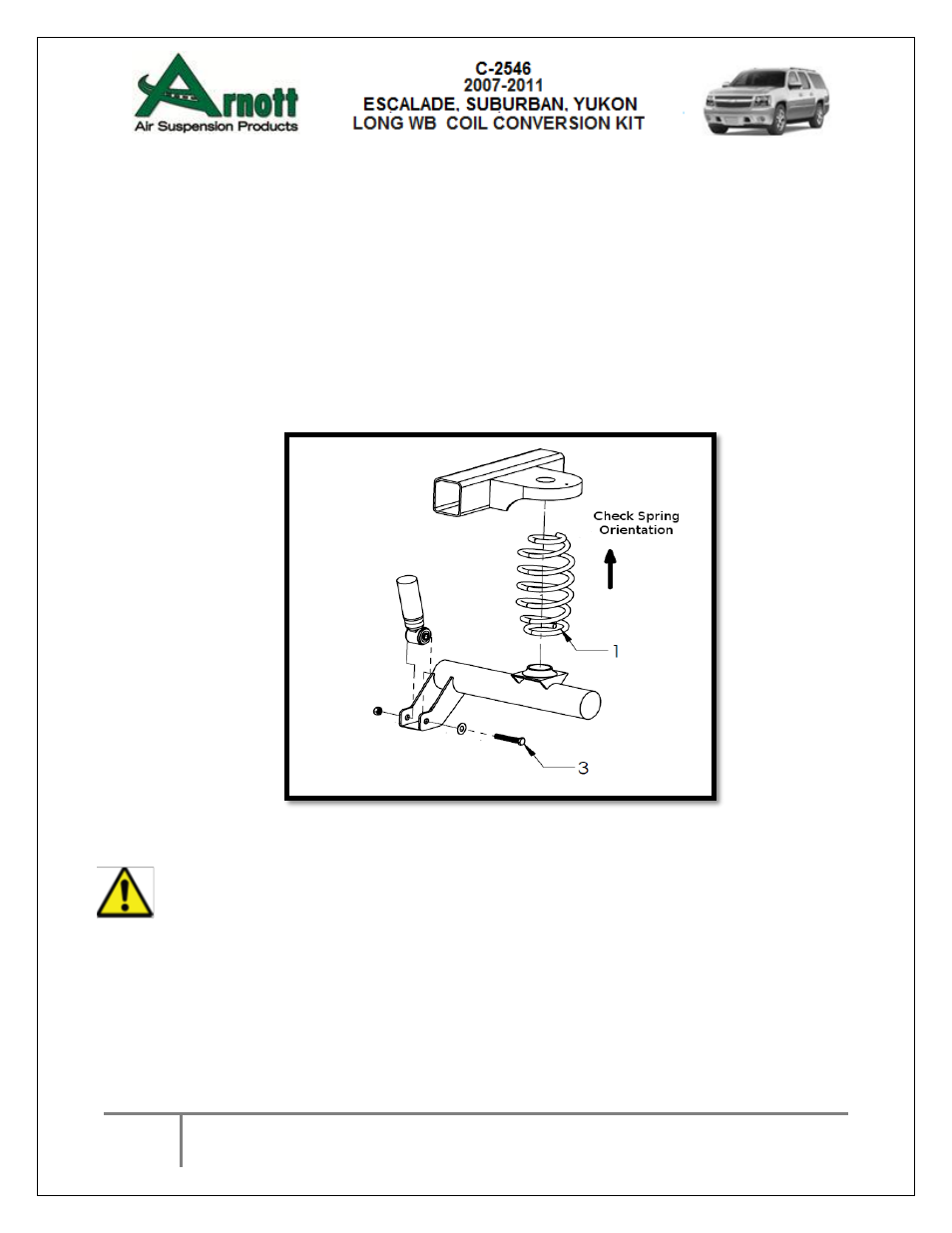

Air Suspension C-2546 REV 7 User Manual
Page 4
4
C-2546RR REV 7 04/28/2014
Coil Spring Installation:
1.0
Install the coil springs onto the rear axle.
2.0
Using a floor jack raise the rear axle.
3.0
Install the lower shock absorber retaining nut and bolt to the rear axle. Tighten
the lower shock absorber retaining
nut and bolt to manufacturer’s specification.
4.0
Replace tire and wheel a
ssembly. Tighten wheel lug nuts to manufacturer’s
specification.
5.0
Remove all safety stands and lower vehicle.
WARNING:
Make sure to tighten all wheel hub bolt nuts to 115-142 Nm (85-
105 lb-ft). Failure to heed to this warning could result in
vehicular damage
and serious bodily injury.
