Air Suspension C-2546 REV 7 User Manual
Page 6
6
C-2546RR REV 7 04/28/2014

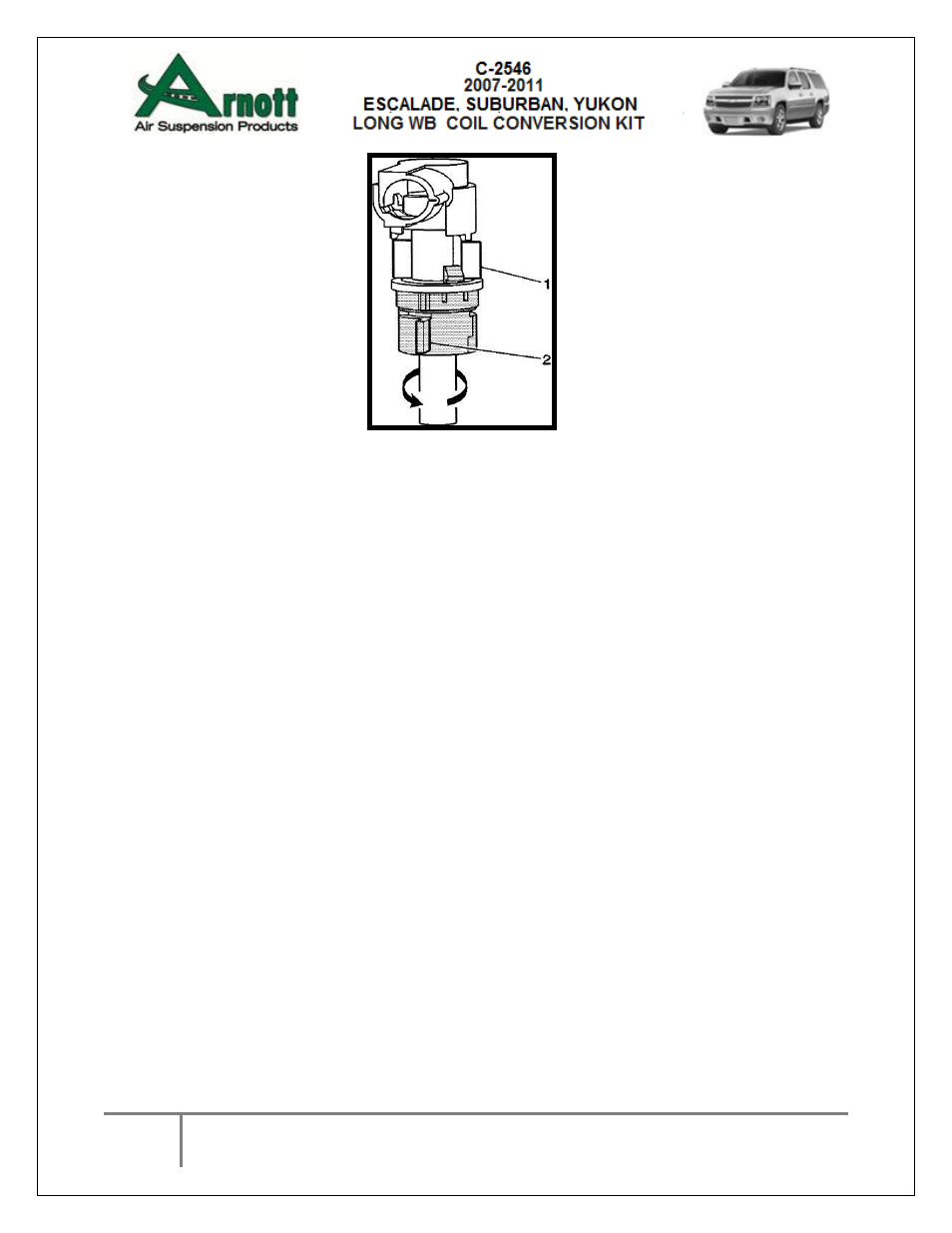

FIGURE B
4.0 Remove the upper insulator.
5.0
Remove the shock absorber mounting bolts at the lower control arm. Remove the
shock absorber through the lower control arm from below. (FIGURE B)
Installation:
1.0 Support the lower control arm with a suitable jack in order to align the tennon with
the mounting hole if equipped with selectable ride.
2.0 Install shock absorber through the lower control arm from below .
3.0 Connect tennon through the mounting hole in the upper spring pocket .
4.0 Align the shock absorber with the mounting hole in the lower control arm.
5.0 Install shock absorber mounting bolt to the lower control arm. Tighten to 70 ft. lbs.
(25 Nm).
6.0 Connect upper insulator to the shock absorber .
7.0 Install nut to the tennon end. Do not tighten the nut.
8.0 Remove the safety stands.
9.0 Lower the vehicle. Hold the tennon end with a wrench while torquing the nut.
Tighten the nut to 15 ft. lbs. (20 Nm).
