ASUS P5P41T/USB3
1-7
1.5.3

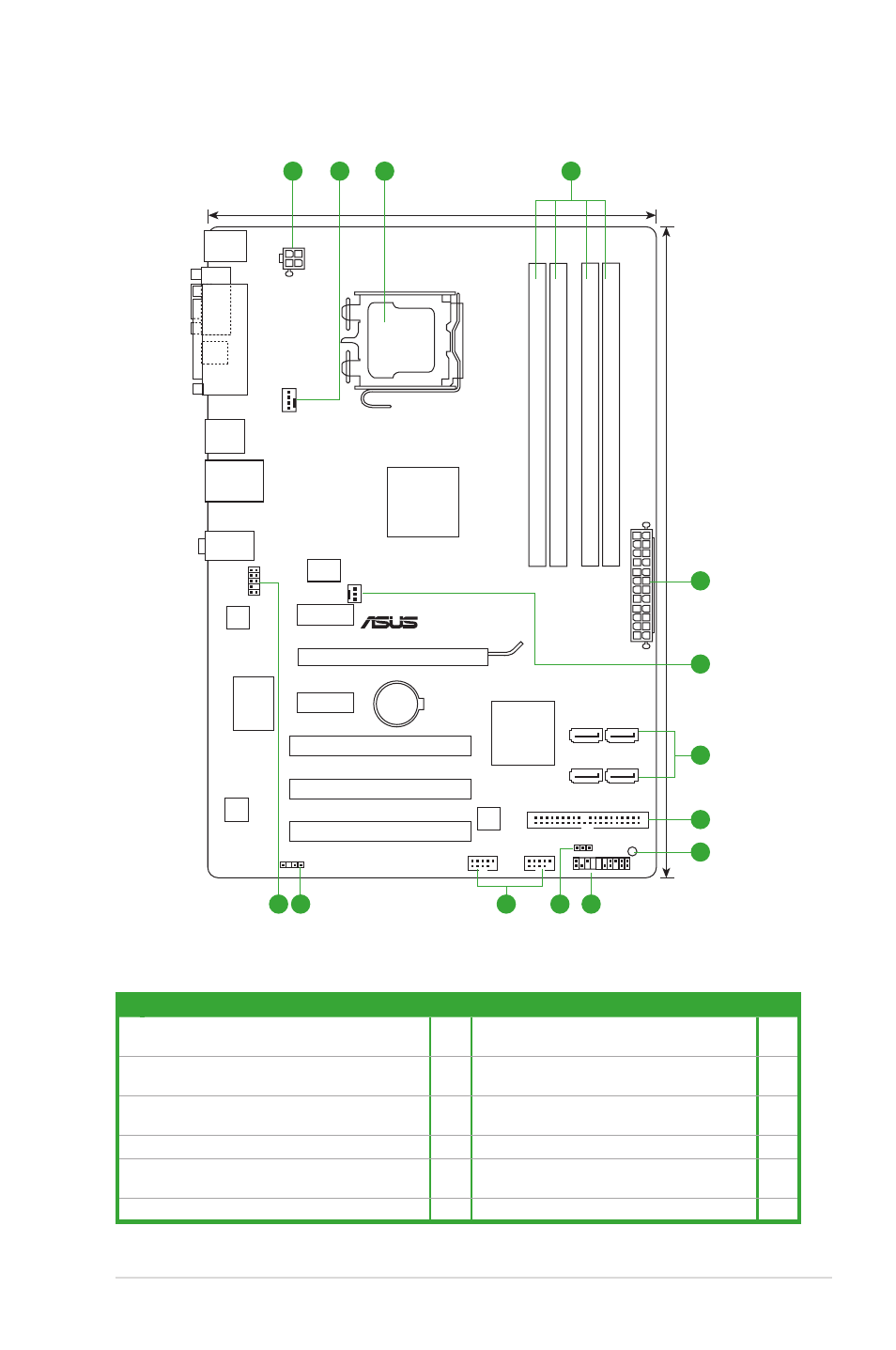

Motherboard layout
1.5.4
Layout contents
Connectors/Jumpers/Slots/LED
Page
Connectors/Jumpers/Slots/LED
Page
1. ATX power connectors (24-pin EATXPWR, 4-pin
ATX12V)
1-21 7.
Onboard LED (SB_PWR)
1-4
2. CPU and chassis fan connectors (4-pin CPU_FAN,
3-pin CHA_FAN)
1-20 8.
System panel connector (20-8 pin PANEL)
1-23
3. Intel LGA775 CPU socket
1-7
9.
Clear RTC RAM (3-pin CLTRC)
1-18
4. DDR3 DIMM slots
1-12 10. USB connectors (10-1 USB56, USB78)
1-25
5. Serial ATA connectors (7-pin SATA1~4)
1-22 11. Digital audio connector (4-1 pin
SPDIF_OUT)
1-21
6. IDE connector (40-pin PRI_IDE)
1-23 12. Front panel audio connector (10-1 pin AAFP) 1-22
P5P41T/USB3
PCIEX16_1
PCIEX1_1
PCIEX1_2
PCI1
PCI3
PCI2
USB78
USB56
SPDIF_OUT
AAFP
ATX12V
EATXPW
R
CPU_FAN
CHA_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
887
PCIE
Gb LAN
ICS
954 A4
KBMS
SPDIF_O
8Mb
BIOS
SB_PWR
CLRTC
21.1cm(8.3in)
Intel
®
ICH7
Intel
®
G41
DDR3 DIMM_A1 (64bit, 240-pin module
)
DDR3 DIMM_A2 (64bit, 240-pin module
)
DDR3 DIMM_B1 (64bit, 240-pin module
)
DDR3 DIMM_B2 (64bit, 240-pin module
)
SATA1
SATA2
SATA3
SATA4
AUDIO
LPT
COM1
LAN1_USB12
USB3_12
30.5cm(12.0in)
PRI_IDE
LGA775
PANEL
2
3
1
4
5
1
2
8
9
10
11
12
6
7
