Network application, Small workgroup, Segment bridge – Asus GigaX1016 User Manual
Page 6
5
GigaX 1016 Switch
PC
Printer
Scanner

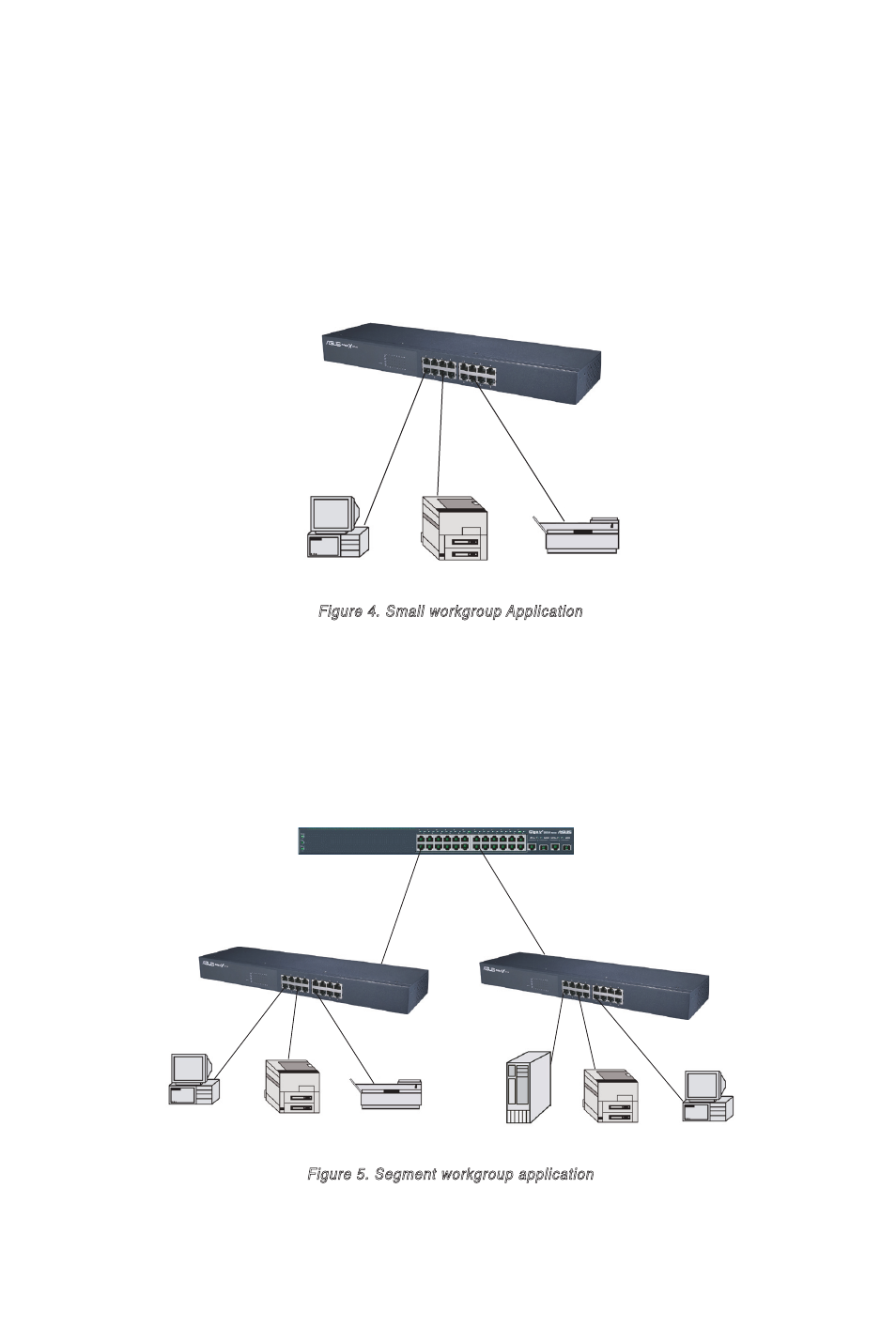

Figure 4. Small workgroup Application
Network Application
This section provides GigaX1016 network topology examples.
Small Workgroup
The GigaX1016 Switch can be used as a standalone switch to connect
PCs, servers, or printers and form a small workgroup.
PC
Core Switch
GigaX1016
Printer
Scanner
Server
Printer
PC
GigaX1016
Segment Bridge
GigaX1016 also provides ideal network solution for big enterprises. Using
the Uplink port, you can link workgroup networks to the core switch to get
a bigger switched network.
Figure 5. Segment workgroup application
