ASUS P5QL-EM 1-35
8. Optical drive audio connector (4-pin CD)
This connector allows you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
Enable the CD-IN function in the audio utility when using this connector.
7. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that
supports either HD Audio or legacy AC’97 audio standard.
• We recommend that you connect a high-definition front panel audio
module to this connector to avail of the motherboard’s high-definition audio
capability.
• By default, this connector is set to HD Audio. If you want to connect a High
Definition front panel audio module to this connector, set the Front Panel
Support Type item in the BIOS to [HD Audio]. See section “2.4.5 Onboard
Device Configuration” for details.

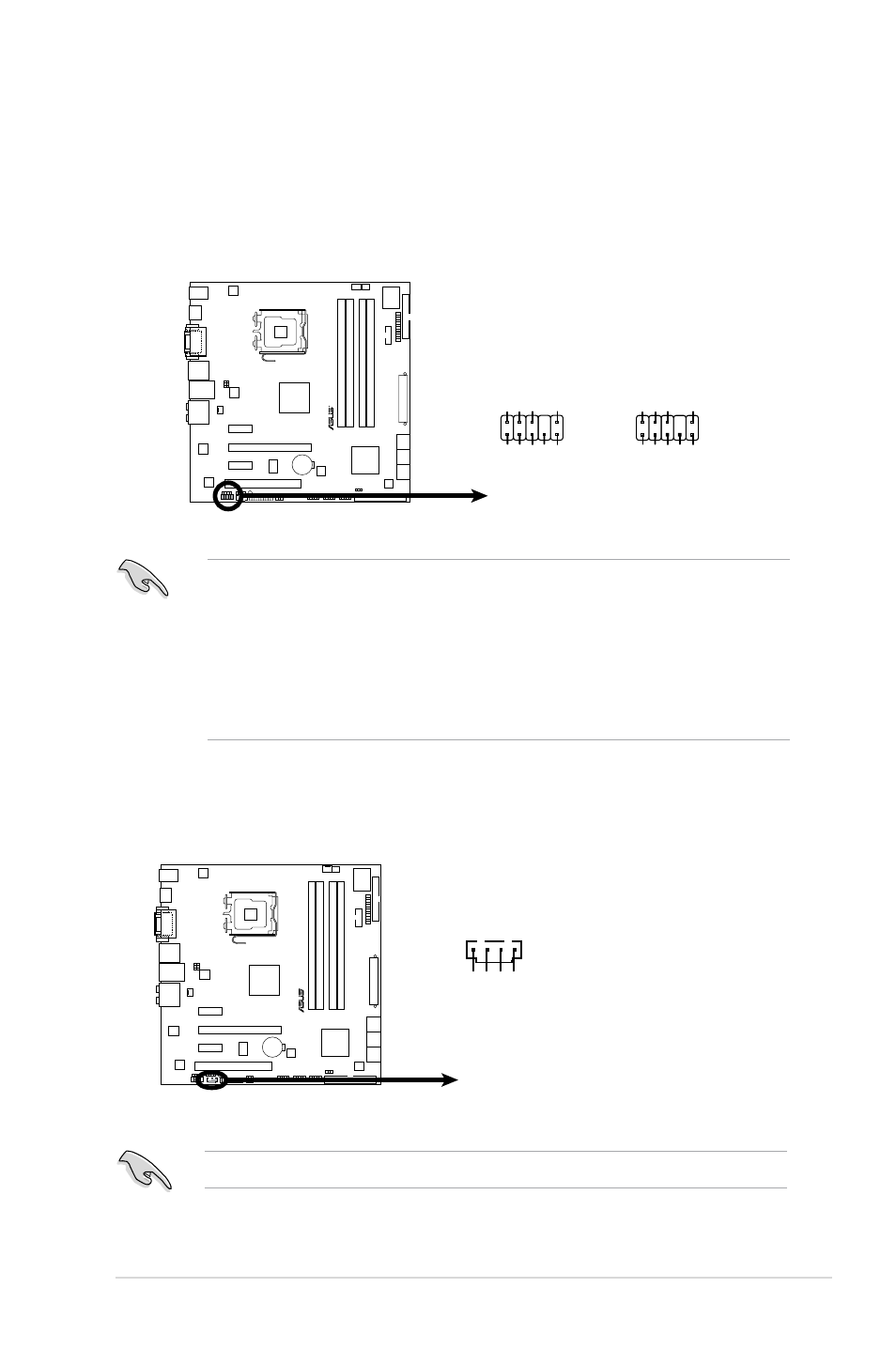

P5QL-EM Internal Audio Connector
P5QL-EM
R
CD
(black)
Right
Audio Channel
Left
Audio Channel Ground Ground
P5QL-EM Front Panel Audio Connector
P5QL-EM
R
SENSE2_RETU
R
PO
RT
1L
PO
RT
1R
PO
RT
2R
SEBSE_SEND
PO
RT
2L
SENSE1_RETU
R
PRESENSE# GN
D
AAFP
Legacy AC’97
compliant definition
NC
MIC2
Line out_R Line out_L
NC
NC
MICPWR
NC AGND
HD-audio-compliant
pin definition
