ASUS P5QL-EM 1-15
1.7 System memory
1.7.1 Overview
The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.

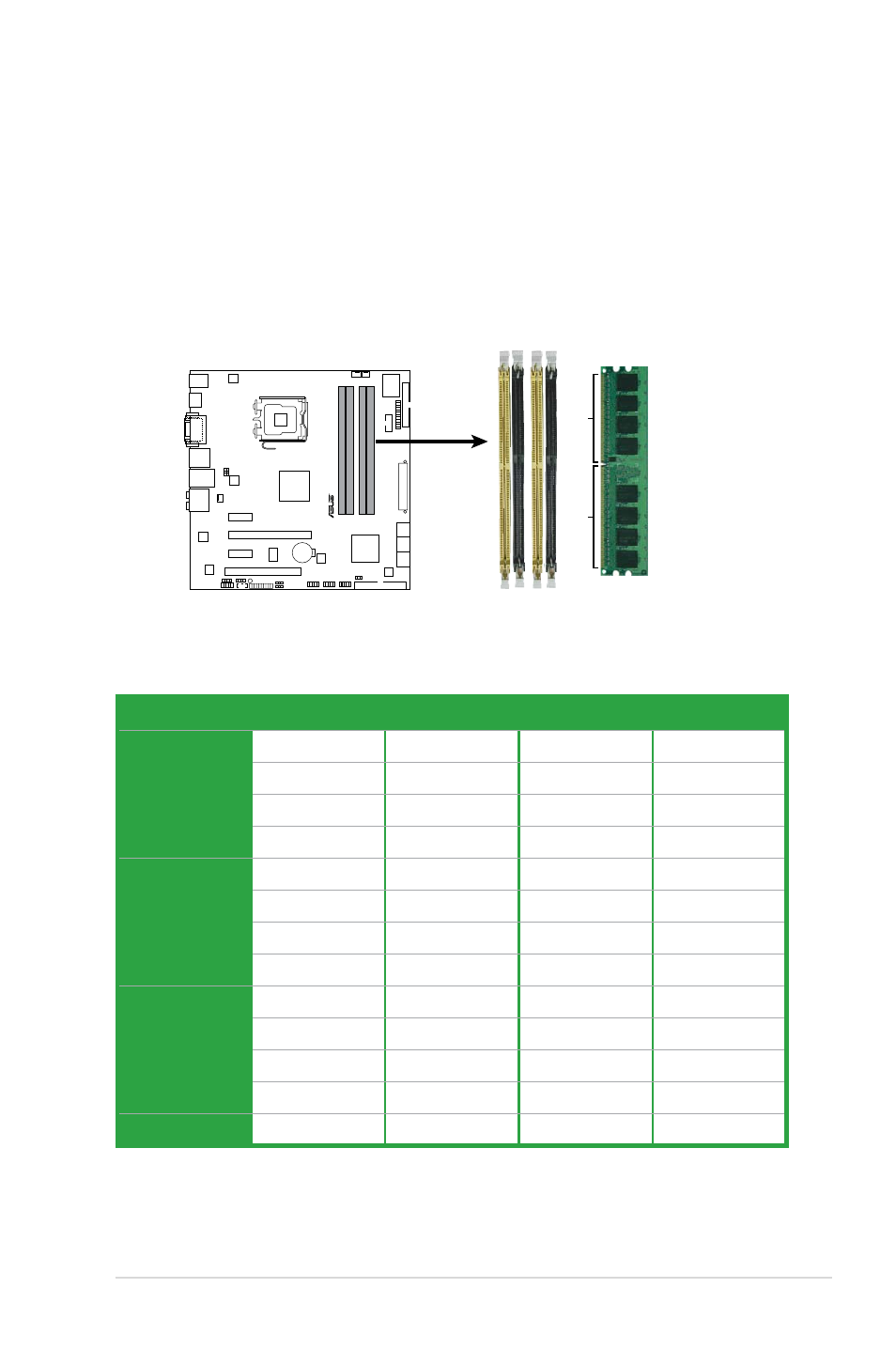

The figure illustrates the location of the DDR2 DIMM sockets:
P5QL-EM 240-pin DDR2 DIMM Sockets
P5QL-EM
R
128 Pins
11
2 Pins
DIMM_A2 DIMM_B1 DIMM_B2 DIMM_A1
Mode DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
One DIMM DS/SS - - -
- DS/SS - -
- - DS/SS -
- - - DS/SS
Two DIMMs DS/SS - DS/SS -
DS/SS - - DS/SS
- DS/SS DS/SS -
- DS/SS - DS/SS
Three DIMMs SS SS DS/SS -
SS SS - DS/SS
DS/SS - SS SS
- DS/SS SS SS
Four DIMMs SS SS SS SS
