3. HARDWARE SETUP
Connectors
3. H/W SETUP
11) SMBus Connector (5-1 pin SMB_CON)
This connector allows you to connect SMBus (System Management Bus) devices.
SMBus devices communicate by means of the SMBus with an SMBus host
and/or other SMBus devices. SMBus is a specific implementation of an I
2 C bus,
a multi-device bus that allows multiple chips to connect to the same bus and
enabling each one to act as a master by initiating data transfer.
12) ASUS iPanel Connector (24-1 pin AFPANEL)
This connector allows you to connect an optional ASUS iPanel, an easy-to access
drive bay with front I/O ports and status LEDs. If you are not using an ASUS
iPanel, you can connect an optional wireless transmitting and receiving infrared
module to the SIR connector.
®

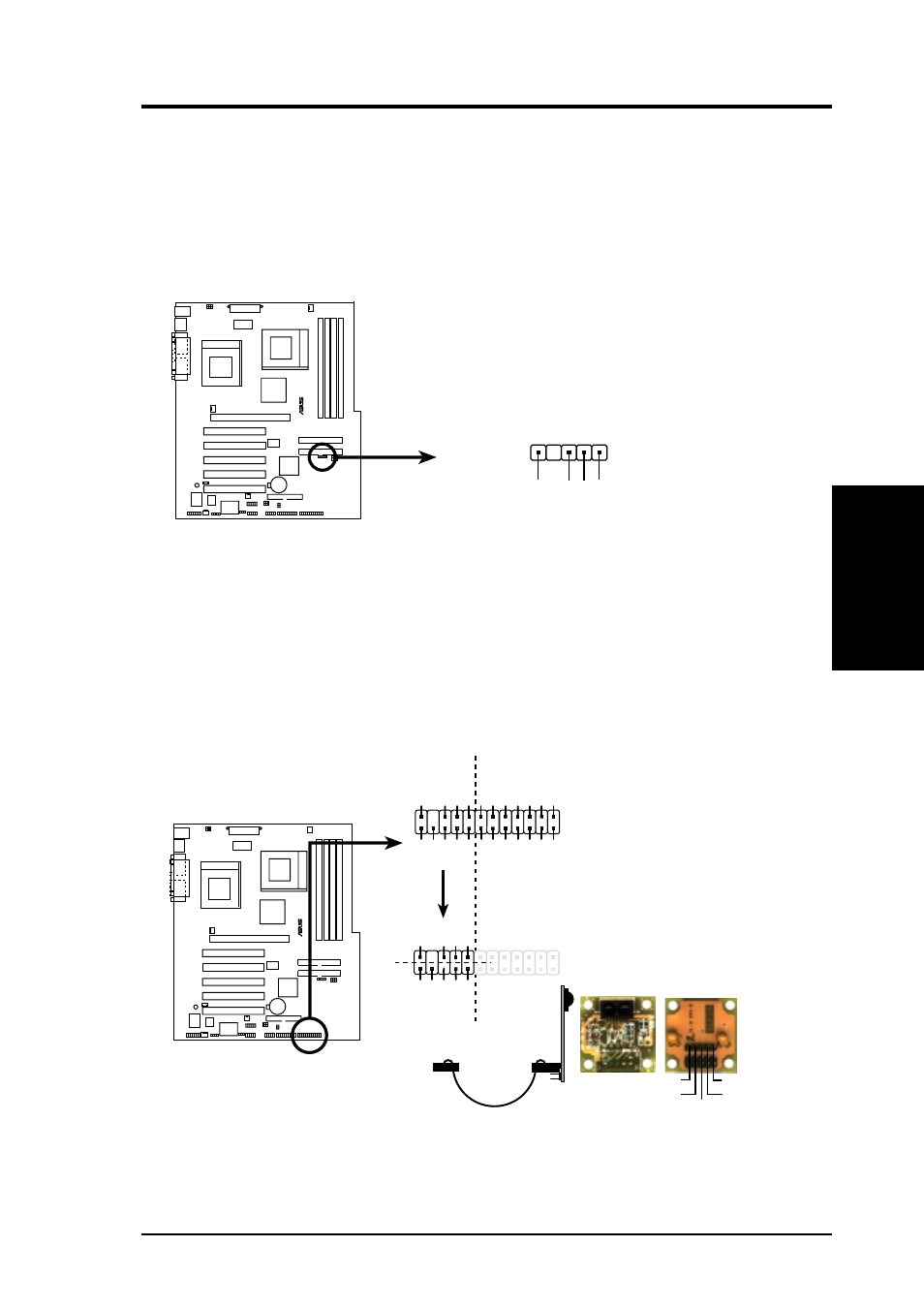

CUV266-D
