ASUS CUV266-D User’s Manual 19
3. HARDWARE SETUP
3. H/W SETUP
Motherboard Settings
4) Keyboard Wake-up (3-pin KB_PWR)
This jumper allows you to enable or disable the keyboard wake up feature. Set
this jumper to ENABLED if you wish to use the keyboard to wake up the
computer when you press the. This feature requires an ATX power
supply that can supply at least 1A on the +5Vsb lead. This default setting is
DISABLED.
3) USB Device Wake-up (3-pin USB01_PWR/USB23_PWR/USB45_PWR)
These jumpers allow you to enable or disable the USB wake-up feature on the
motherboard. Set all the three jumpers to ENABLED if you wish to use the USB
devices to wake up the computer. This feature requires an ATX power supply
that can supply at least 1A on the +5VSB lead. The default setting for all three
jumpers is DISABLED .
NOTES:
1. Before setting these jumpers to ENABLED, make sure that you have the
appropriate power supply, otherwise the computer does not power up.
2. The total current consumed must NOT exceed the power supply capability
(+5VSB) whether under normal working conditions or in sleep mode.
®

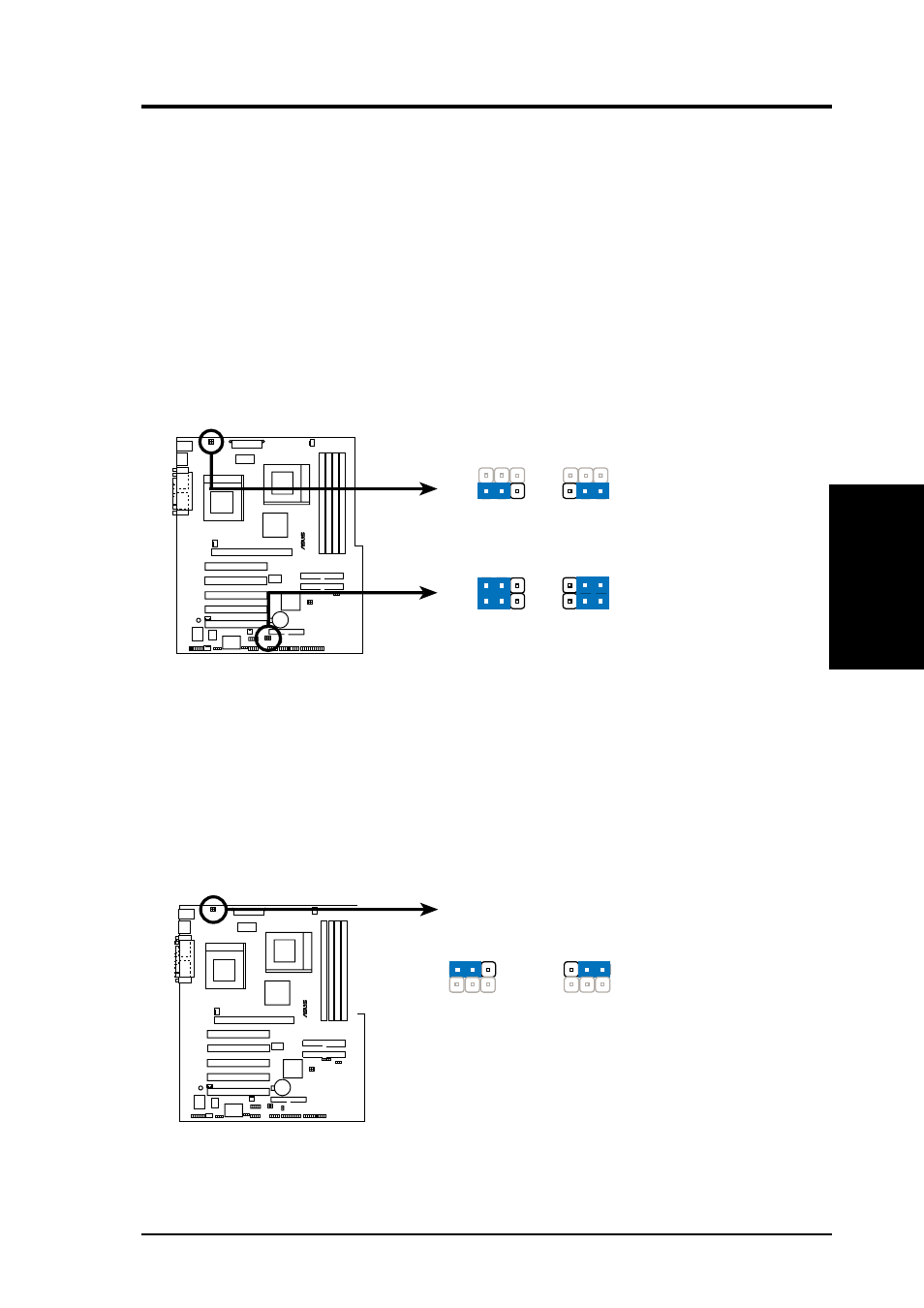

CUV266-D
0 1 0 1 0 1 0 1
CUV266-D USB Device Wake-Up
USB01_PWR
USB45_PWR
USB23_PWR
1 2 2 3
Enabled Disabled
1 2 2 3
Enabled Disabled
(Default)
(Default)
®
CUV266-D
0 1 0 1 0 1 0 1
CUV266-D Keyboard Power Up
KB_PWR
Enabled
1 2
Disabled
2 3
(Default)
