1-22 Chapter 1: Product introduction
• For a fully configured system, we recommend that you use a power supply unit (PSU)
that complies with ATX 12 V Specification 2.0 (or later version) and provides a minimum
power of 350 W.
• Do not forget to connect the 4-pin EATX12V power plug. Otherwise, the system will not
boot.
• If you are uncertain about the minimum power supply requirement for your system,
refer to the Recommended Power Supply Wattage Calculator at http://support.asus.
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.
1.8.2 Internal connectors

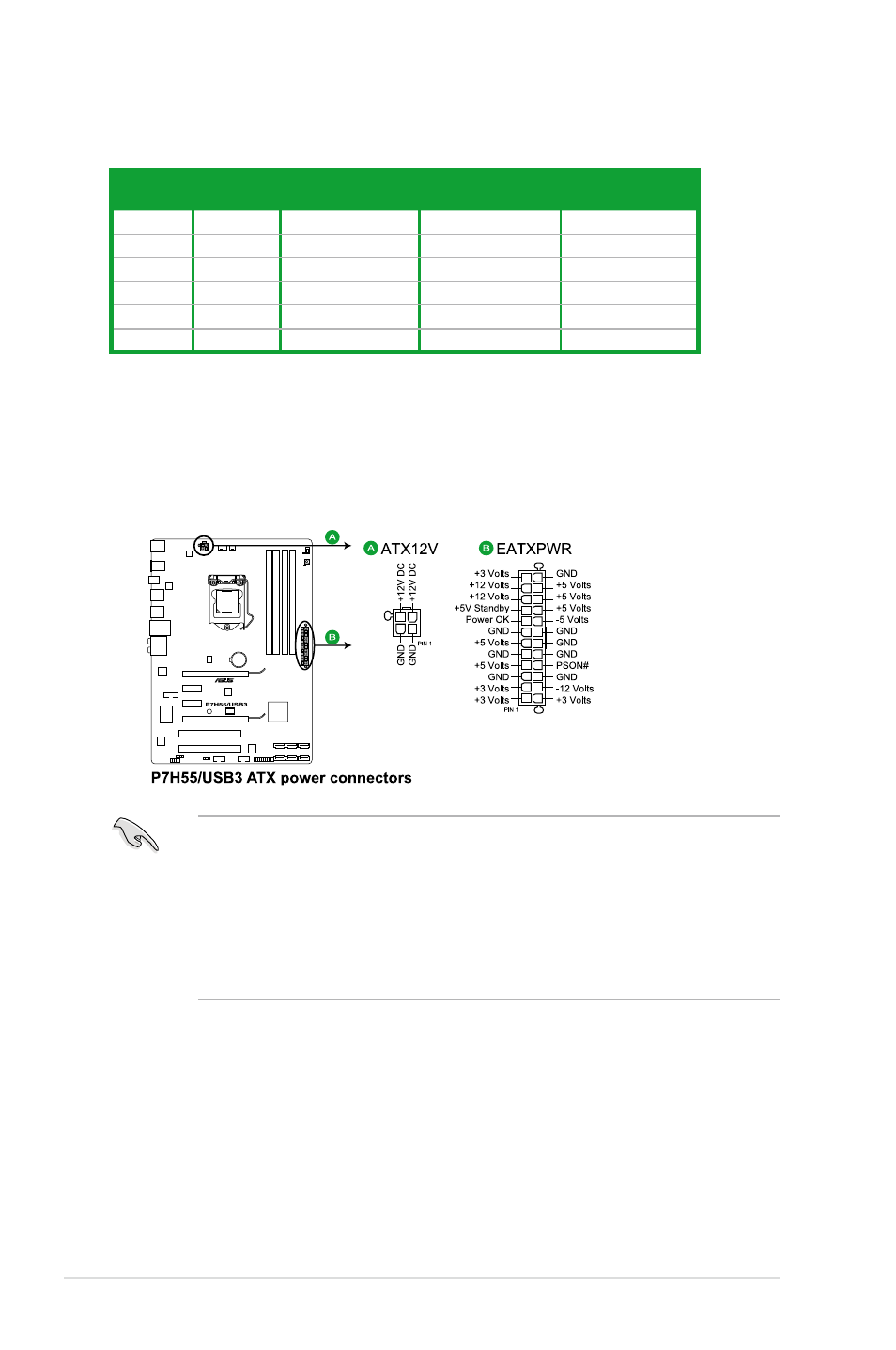

1. ATX power connectors (24-pin EATXPWR, 4-pin EATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to fit these connectors in only one orientation. Find the proper orientation and
push down firmly until the connectors completely fit.
Audio 2, 4, 6, 8-channel configuration
Port
Headset
2-channel
4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Ou Rear Speaker Out
Gray – – – Side Speaker Out
