ASUS P5V-X SE 1-31
4. CPU and Chassis Fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
The fan connectors support cooling fans of 350mA~740mA (8.88W max.) or
a total of 1A~2.22A (26.64W max.) at +12V. Connect the fan cables to the fan
connectors on the motherboard, making sure that the black wire of each cable
matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufficient air
flow inside the system may damage the motherboard components. These are
not jumpers! DO NOT place jumper caps on the fan connectors.
P5
V
-X SE

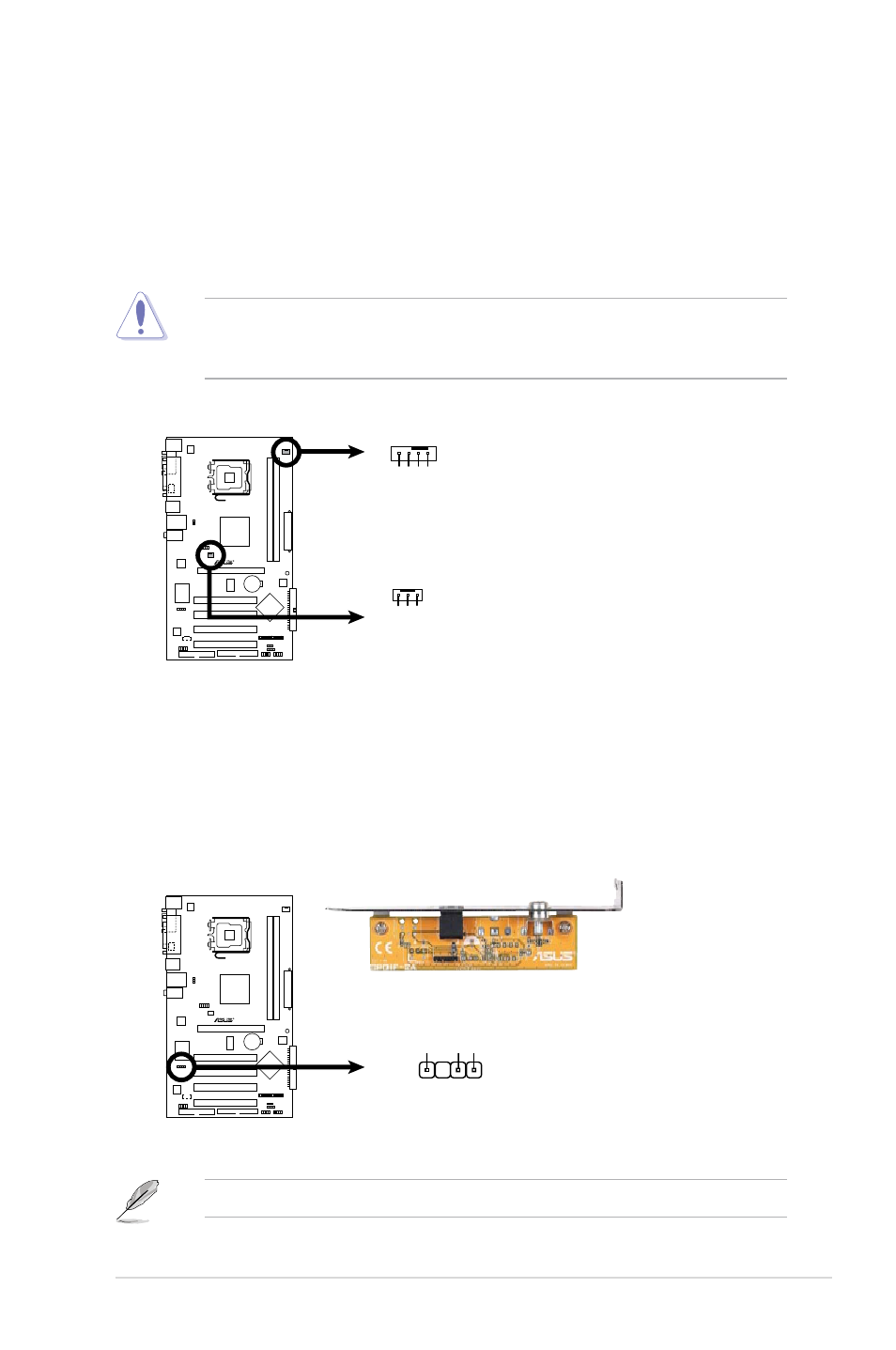

P5V-X SE Fan Connectors
GND
CPU F
AN PWR
CPU F
AN IN
CPU F
AN PWM
CPU_FAN
CHA_FAN
GND
Rotatio
n
+12V
5. Digital Audio connector (4-1 pin SPDIF_OUT)
This connector is for the S/PDIF audio module to allow digital sound output.
Connect one end of the S/PDIF audio cable to this connector and the other
end to the S/PDIF module.
The S/PDIF out module is purchased separately.
P5
V
-X SE
P5V-X SE Digital Audio Connector
+5V SPDIFOU
T
GND
SPDIF_OUT
