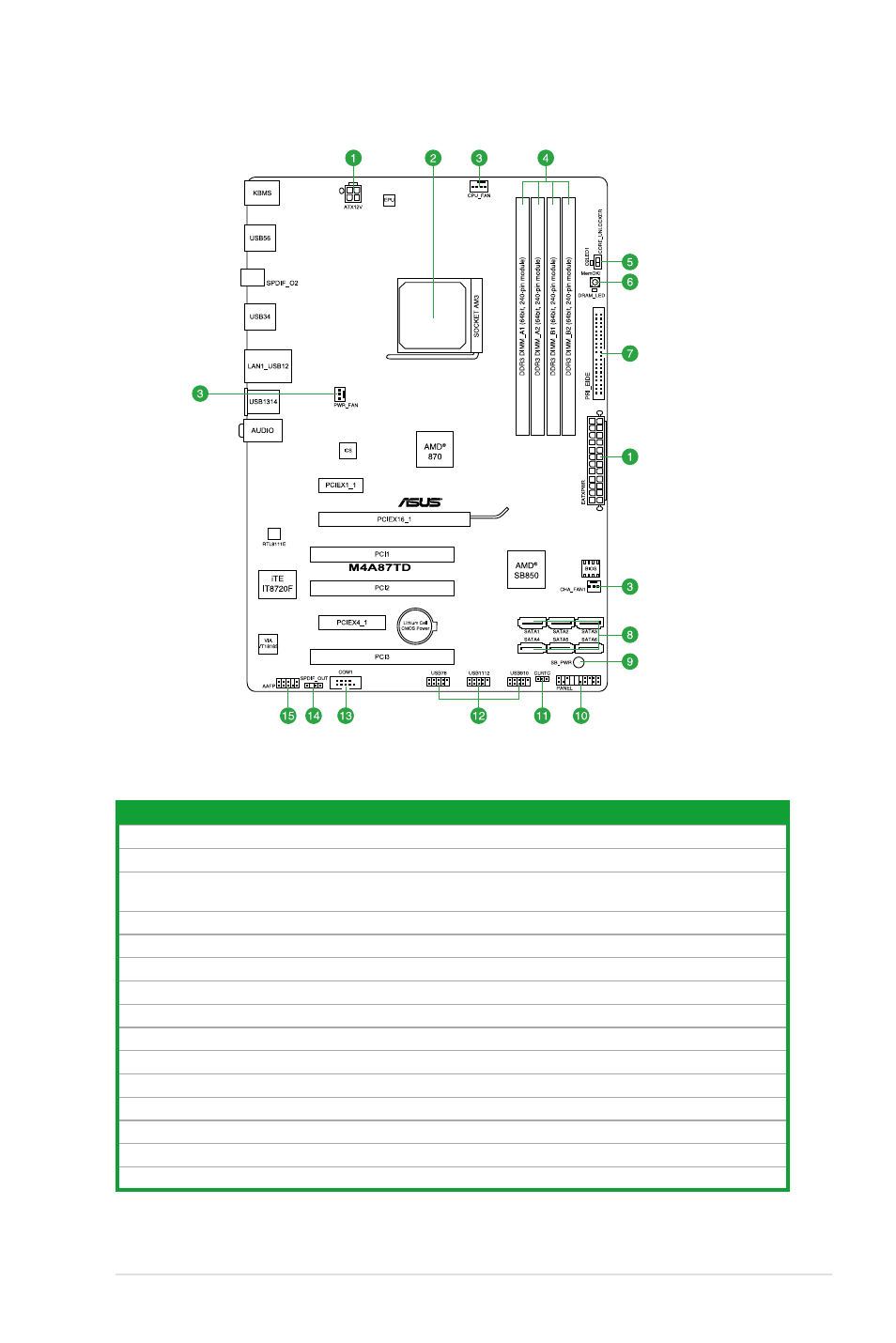

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots Page
1. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-22
2. CPU socket AM3 1-6
3. CPU, Chassis and Power Fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN1,
3-pin PWR_FAN)
1-24
4. DDR3 DIMM slots 1-9
5. Core Unlocker switch (CORE_UNLOCKER) 1-18
6. MemOK! switch 1-17
7. IDE connector (40-1 pin PRI_IDE) 1-21
8. Serial ATA 6G/b connectors (7-pin SATA1-6) 1-23
9. Standby power LED (SB_PWR) 1-18
10. System panel connector (20-8 pin PANEL) 1-25
11. Clear RTC RAM (CLRTC) 1-16
12. USB connectors (10-1 pin USB78, USB910, USB1112) 1-26
13. Serial port connector (10-1 pin COM1) 1-27
14. Digital audio connector (4-1 pin SPDIF_OUT) 1-26
15. Front panel audio connector (10-1 pin AAFP) 1-27
Chapter 1: Product introduction 1-5
