24 Chapter 2: Hardware information
2.7 Jumpers
The jumpers on the motherboard allow you to change some feature
settings to suit your customized system configuration.
Before changing any DSW or jumper setting, make sure to read the
jumper descriptions and setting requirements in this section.
P4S133-VM
®
P4S133-VM CPU
External Frequency Selection Default
FSJ1
(Default)
FS0 FS1 FS2 FS3 FS4
1) JumperFree ™ Mode (JF1)
This jumper enables or disables the JumperFree ™ mode. The default
setting, [1-2], enables JumperFree ™ mode. JumperFree ™ mode permits
processor settings to be made through the BIOS setup (see 4.4 Advanced
Menu).

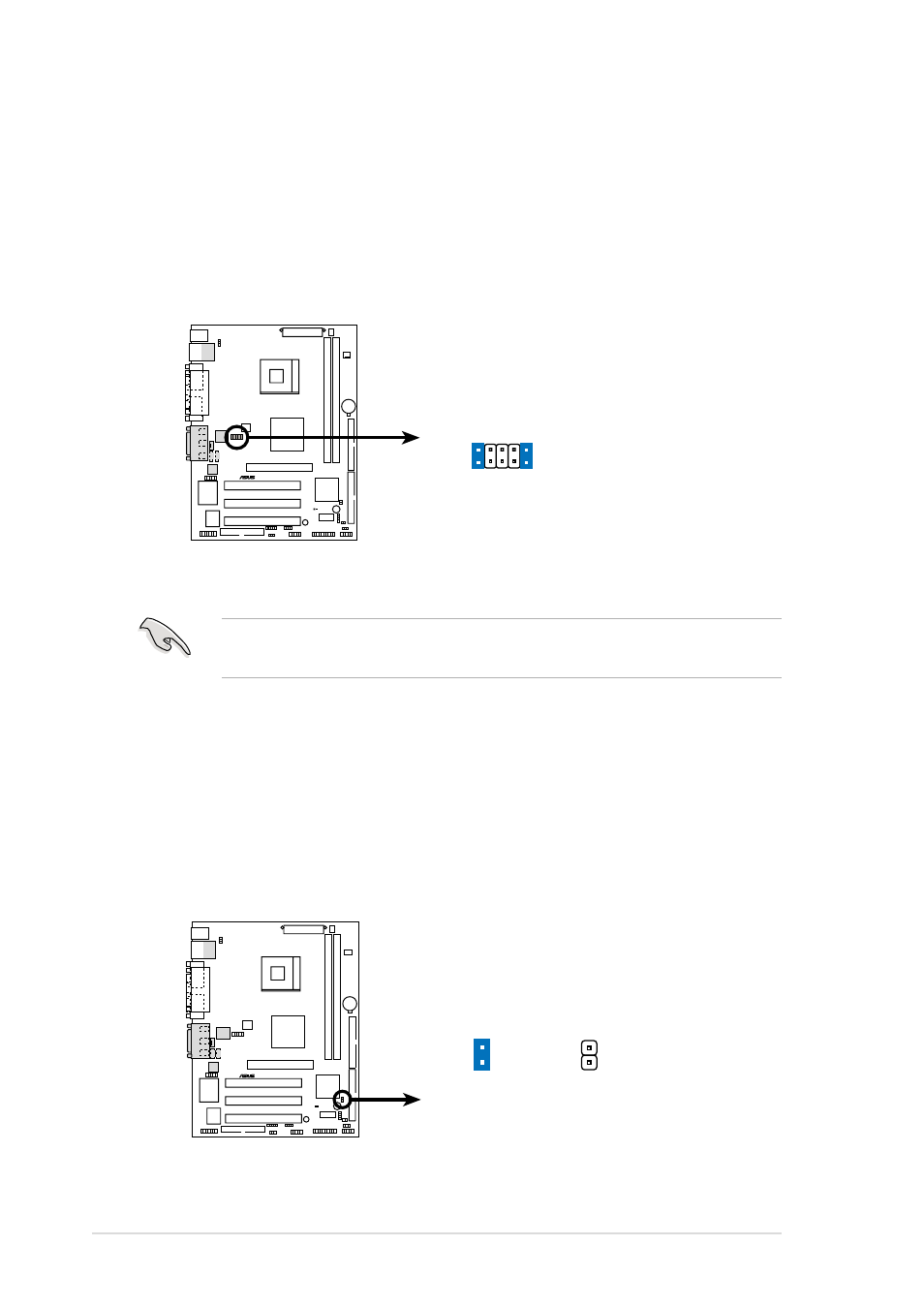

Motherboard Frequency Settings (FSJ1 Switches)
The motherboard frequency is adjusted through the FSJ1 jumpers. The
illustration below shows the default position:
P4S133-VM
®
P4S133-VM JumperFree™ Mode Setting
Jumper Free Jumper Mode
1
2
1
2
(Default)
JF1
