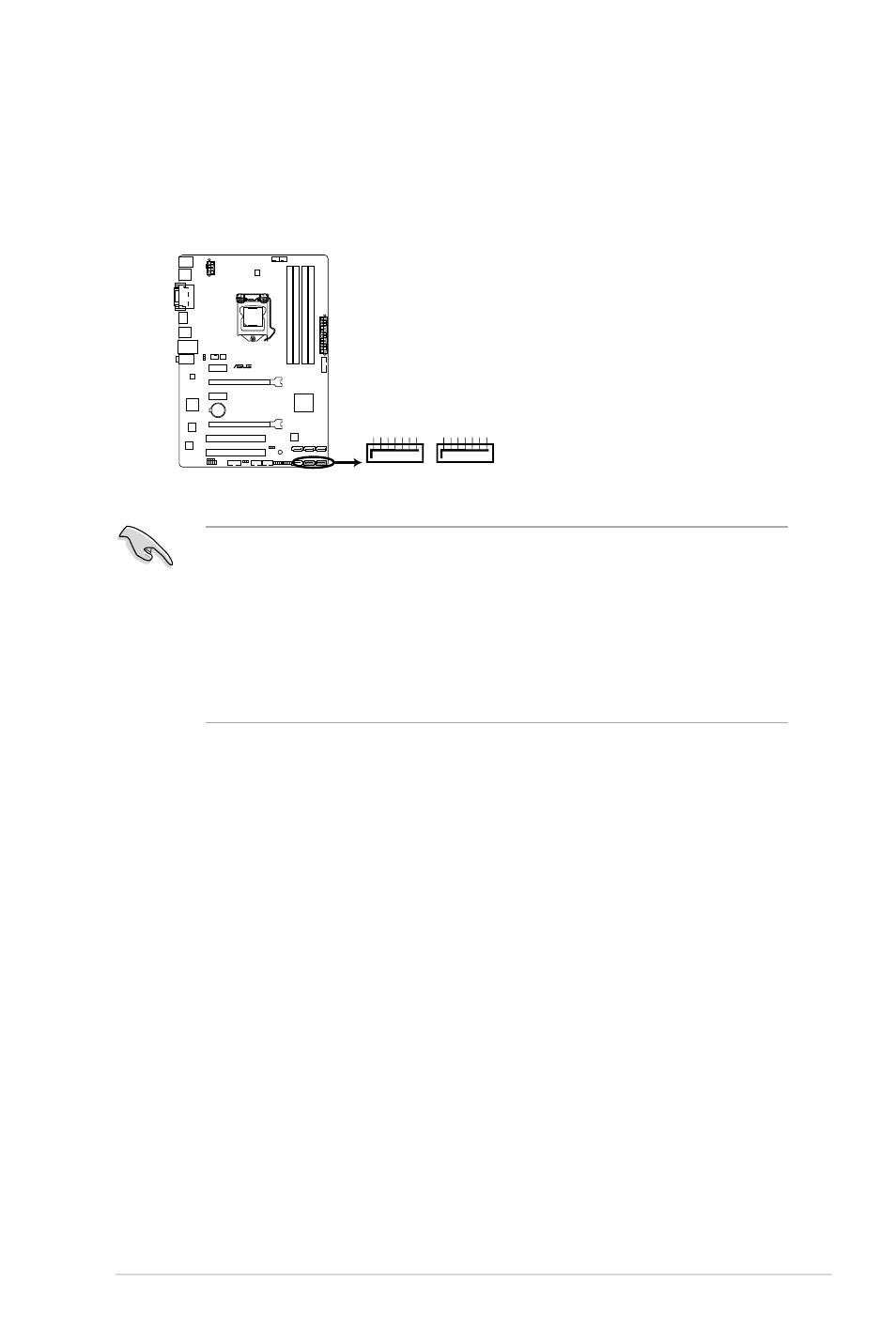

4. Serial ATA 6.0 Gb/s connectors (7-pin SATA6G 1~6)
These connectors are for the Serial ATA 6.0 Gb/s signal cables for Serial ATA hard
disk drives and optical disc drives. If you installed Serial ATA hard disk drives, you
can create a RAID 0, RAID 1, RAID 5, or RAID 10 configuration through the onboard
controller.
SATA6G_2
GND RSATA_RXP2 RSATA_RXN2 GND RSATA_TXN2 RSATA_TXP2 GND
SATA6G_1
GND RSATA_RXP1 RSATA_RXN1 GND RSATA_TXN1 RSATA_TXP1 GND
Z77-A
Z77-A Intel ® SATA 6.0Gb/s connectors
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial
ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID
Mode]. Refer to section 2.5.3 SATA Configuration for details.
• When using NCQ, please check the SATA Mode in the BIOS is [AHCI Mode]. Refer to
2.5.3 SATA Configuration for details.
• You must install Windows ® XP Service Pack 3 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows ® XP SP3 or later versions.
ASUS Z77-A 1-29
